Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Shimano, Deore -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
56cm
175cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Cromoly Butted
Suspension Fork
Kona Project Two Touring
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano LX Trekking
Front Derailleur
Shimano Deore
Shift Levers
Shimano BarCon
Cassette
Shimano Deore 11-32t 9 spd
Crank
48/36/26t
Bottom Bracket
Shimano BB51
Chain
KMC HG53
Pedals
N/A
Wheels
Front Hub
Shimano Deore
Rear Hub
Shimano Deore
Rims
Freedom by WTB Ryder 21
Spokes
Sandvik Stainless 14g
Tires
Continental Contact 700x32C
Brakes
Brakes
Hayes CX5
Brake Levers
Tektro RL340
Disk Rotors
Hayes V6 160mm
Cockpit
Stem
Kona XC/Road Deluxe
Handlebar
Kona Deluxe Road Bar
Grips
Kona Cork Tape
Headset
TH 848
Seat
Saddle
WTB Rocket V Comp
Seatpost
Kona Double Clamp w/Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 49cm | 53cm | 56cm | 59cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.45 mm | 1.47 mm | 1.49 mm | 1.49 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 282 mm | 282 mm | 282 mm |
| Front Center | 598 mm | 609 mm | 616 mm | 631 mm | 641 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 67 mm | 68 mm | 65 mm | 66 mm | 62 mm |
| Stack | 547 mm | 571 mm | 587 mm | 606 mm | 622 mm |
| Reach | 389 mm | 393 mm | 398 mm | 407 mm | 417 mm |
| Top Tube Length | 541 mm | 556 mm | 571 mm | 591 mm | 611 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 440 mm | 480 mm | 510 mm | 540 mm | 560 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° |
| Head Tube Length | 115 mm | 140 mm | 160 mm | 180 mm | 195 mm |
| Chainstay Length | 446 mm | 446 mm | 446 mm | 446 mm | 446 mm |
| Wheelbase | 1035 mm | 1046 mm | 1054 mm | 1069 mm | 1079 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 63 mm | 63 mm | 63 mm |
| Standover Height | 734 mm | 764 mm | 791 mm | 814 mm | 830 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |

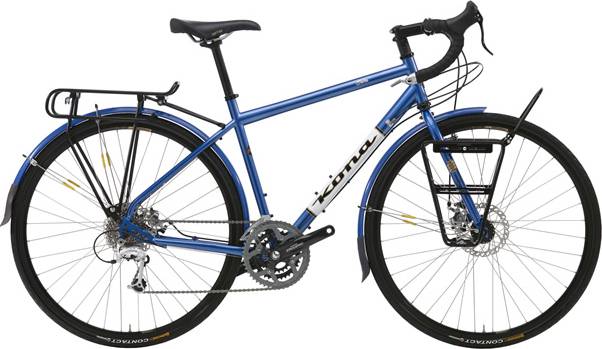

About this model
SUTRA is a Kona Sutra model. There are 26 bikes that carry this model name.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Touring bikes average price
If you want to purchase a solid Touring bike, it is important to know that the average cost is 1007$. However, you could also get a good Touring bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork material
SUTRA has a steel fork, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels size
When it comes to wheels, the SUTRA bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Kona SUTRA has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
