Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 700c -
Groupset Deore, X5 -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
56cm
175cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Cromoly Butted
Suspension Fork
Kona Project Two Touring Disc
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Deore SGS
Front Derailleur
SRAM X5
Shift Levers
Shimano BarCon
Cassette
Shimano Alivio 11-32t 9spd
Crank
28/36/48t
Bottom Bracket
Shimano Deore
Chain
KMC HG53
Pedals
n/a
Wheels
Front Hub
Shimano Deore
Rear Hub
Shimano Deore
Rims
WTB SX19
Spokes
Sandvik Stainless 14g
Tires
Schwalbe Tour+ 700x35c w/Puncture Protect
Brakes
Brakes
Hayes CX Expert
Brake Levers
Tektro RRL-A
Disk Rotors
Hayes V-Series 160mm
Cockpit
Stem
Kona XC/Road
Handlebar
Kona Wet Bar
Grips
Kona Cork Tape
Headset
FSA No.11N
Seat
Saddle
Brooks B17 Leather
Seatpost
Kona Deluxe Thumb w/Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 49cm | 53cm | 56cm | 59cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.45 mm | 1.51 mm | 1.55 mm | 1.55 mm | 1.54 mm |
| Bottom Bracket Height | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm | 271 mm |
| Front Center | 592 mm | 598 mm | 604 mm | 609 mm | 624 mm | 633 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 77 mm | 73 mm | 70 mm | 66 mm | 64 mm | 60 mm |
| Stack | 529 mm | 550 mm | 575 mm | 596 mm | 617 mm | 629 mm |
| Reach | 376 mm | 380 mm | 382 mm | 385 mm | 399 mm | 409 mm |
| Top Tube Length | 522 mm | 537 mm | 552 mm | 567 mm | 587 mm | 607 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 470 mm | 490 mm | 530 mm | 560 mm | 590 mm | 610 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72.5 ° |
| Head Tube Length | 100 mm | 120 mm | 145 mm | 165 mm | 185 mm | 195 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1020 mm | 1027 mm | 1033 mm | 1038 mm | 1053 mm | 1062 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 752 mm | 772 mm | 802 mm | 827 mm | 852 mm | 867 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

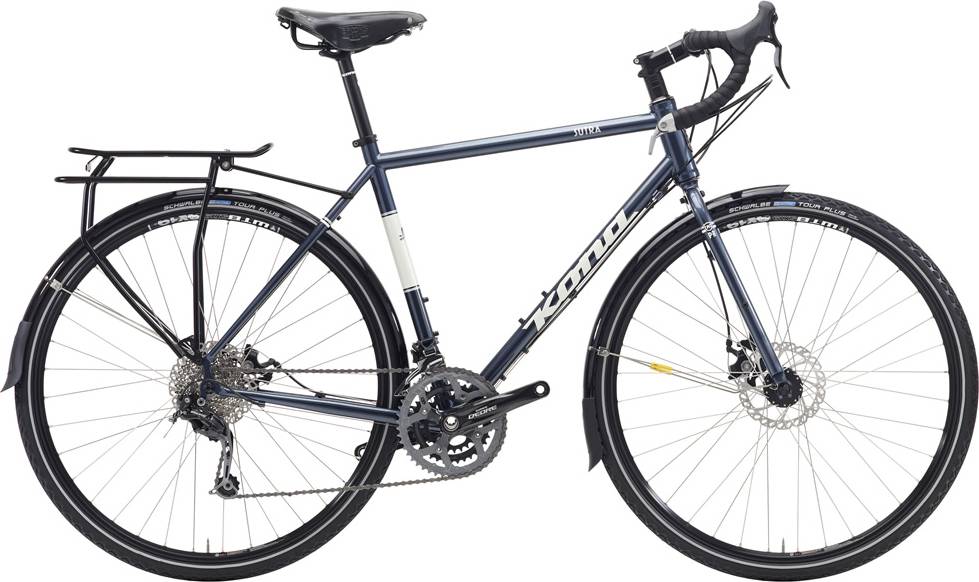

SUTRA is a Kona Sutra model. Kona launched 26 bikes of this model so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Touring bikes
According to our calculations, the average cost of a Touring bike that is reliable is 1007$. However, even if your budget is less than the average, you might still be able to get a top-quality Touring bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork material
The fork on this bike is made out of steel, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Wheels
When it comes to wheels, the SUTRA bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The SUTRA comes with Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
