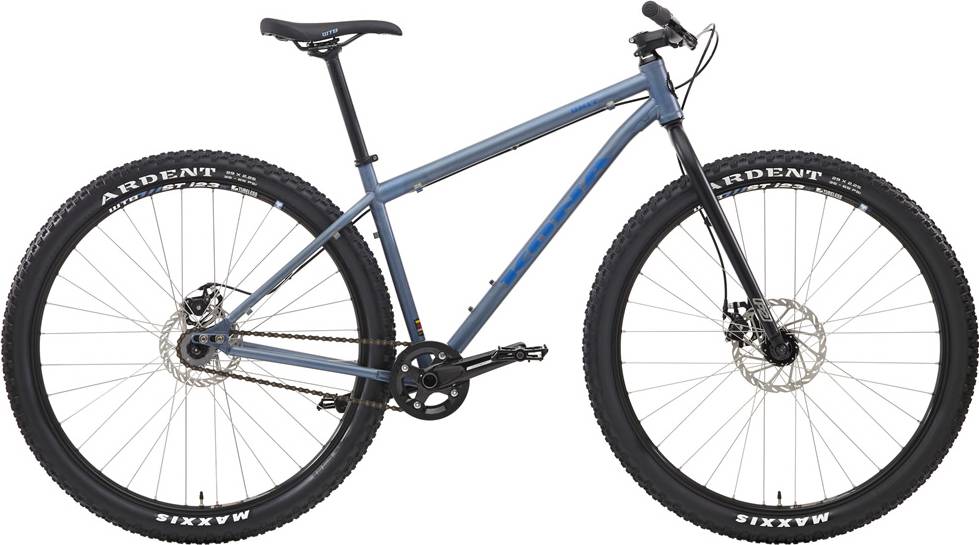

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 29" -
Suspension Rigid -
Drivetrain Single Speed -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Reynolds 520 Butted Cromoly
Suspension Fork
Kona P2 29
Rear Shock
n/a
Drivetrain
Rear Derailleur
n/a
Front Derailleur
n/a
Shift Levers
n/a
Cassette
Formula 18t
Crank
32t
Bottom Bracket
FSA MegaExo
Chain
KMC Z610
Chain Guide
n/a
Pedals
Kona JackShit
Wheels
Front Hub
Formula
Rear Hub
Formula
Rims
WTB ST i23 TCS
Spokes
Sandvik Stainless 15g fr / 14g rr
Tires
Maxxis Ardent 29x2.25"
Brakes
Brakes
Avid BB7
Brake Levers
Avid FR5
Disk Rotors
Avid G2 Clean Sweep 180mm
Cockpit
Stem
Kona XC/Road
Handlebar
Kona XC/BC Riser
Grips
Kona Race Light LOG
Headset
TH ZST No.10
Seat
Saddle
WTB Volt Comp
Seatpost
Kona Double Clamp w/offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15" | 17" | 19" | 21" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.43 mm | 1.38 mm | 1.33 mm |
| Bottom Bracket Height | 318 mm | 318 mm | 318 mm | 318 mm |
| Front Center | 636 mm | 662 mm | 687 mm | 713 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 87 mm | 88 mm | 88 mm | 88 mm |
| Stack | 582 mm | 592 mm | 601 mm | 611 mm |
| Reach | 391 mm | 414 mm | 436 mm | 459 mm |
| Top Tube Length | 570 mm | 595 mm | 620 mm | 646 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1062 mm | 1088 mm | 1113 mm | 1140 mm |
| Bottom Bracket Drop | 56 mm | 56 mm | 56 mm | 56 mm |
| Standover Height | 758 mm | 785 mm | 812 mm | 840 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model
UNIT is part of the Kona Unit model. Kona released 20 bikes variations of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
If you want an acceptable Trail bike you should know that the average price is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
UNIT components
Wheels size
When leaving the production line, the UNIT model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
