Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Steel -
Groupset Deore -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

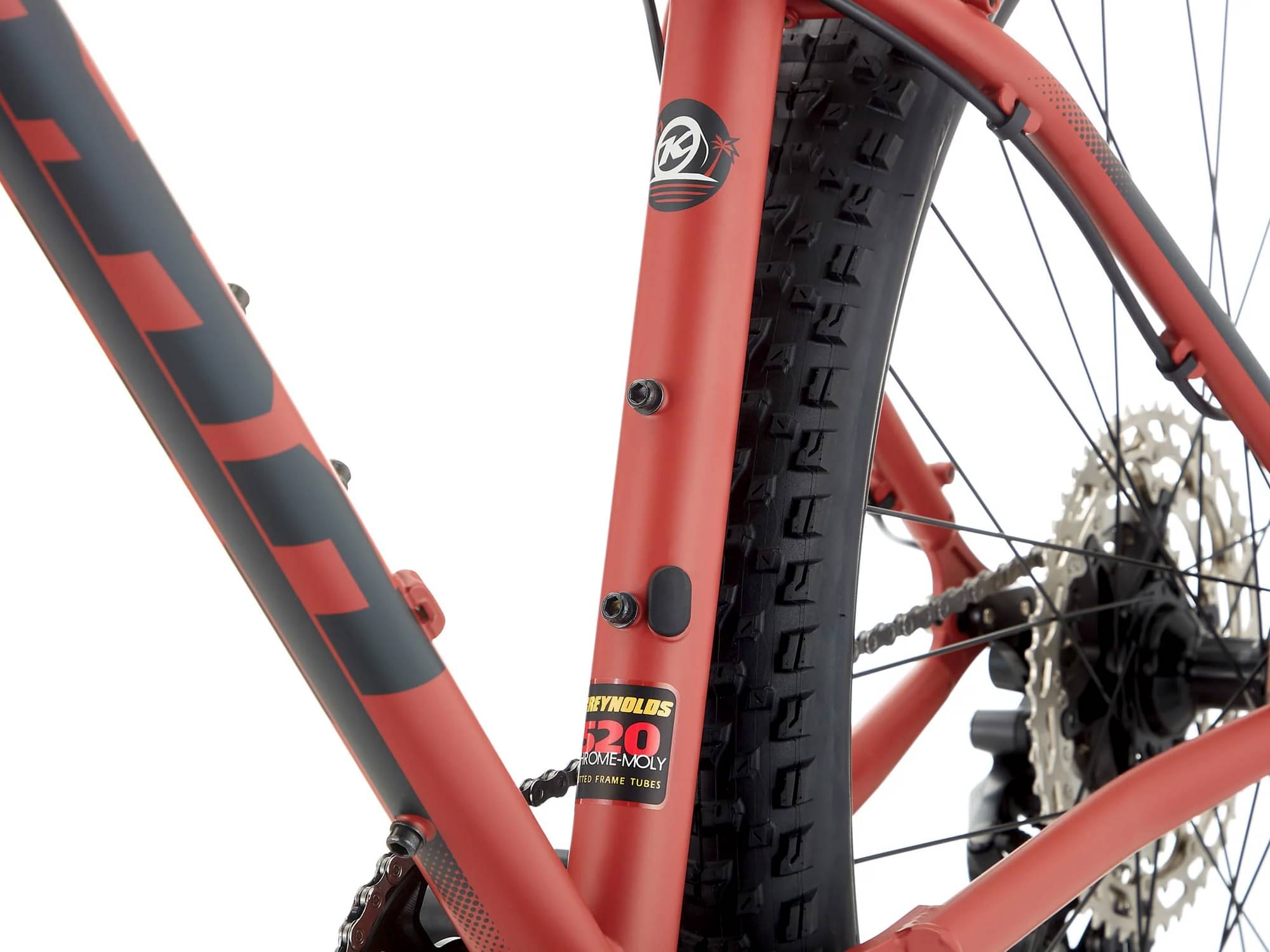

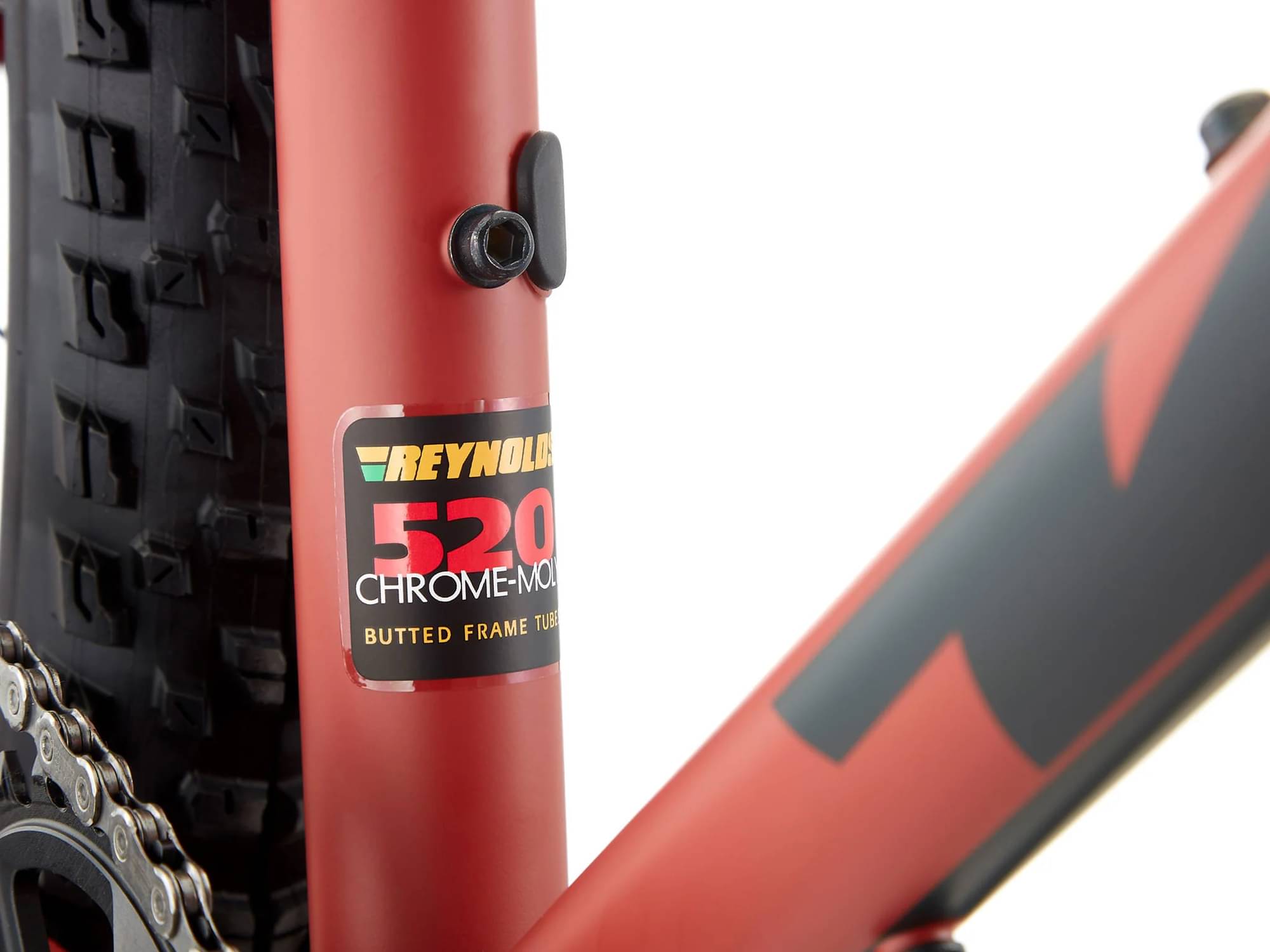

Reynolds 520 Butted Cromoly
Suspension Fork
Kona Plus Fork 110mm spacing
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
n/a
Shift Levers
Shimano Deore 12spd
Cassette
Shimano Deore 10-51t 12spd
Crank
Prowheel 12spd, 32t
Bottom Bracket
Prowheel 73mm
Chain
Shimano Deore 12spd
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Formula 110x15mm (centerlock)

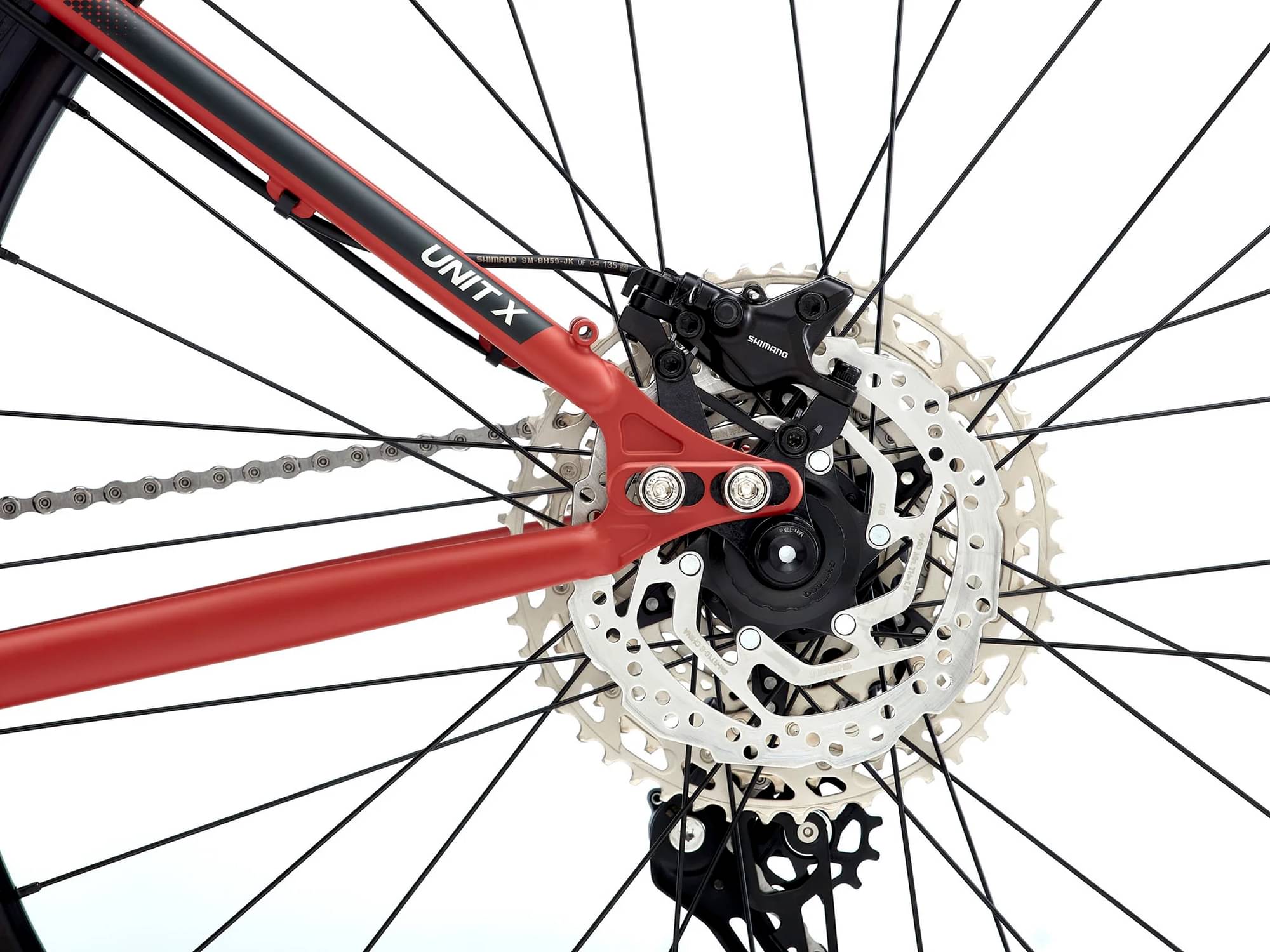

Rear Hub
Shimano 148x12mm (centerlock)
Rims
WTB ST i30 2.0 TCS
Spokes
Stainless Black 14g
Tires
Front: Maxxis Rekon TR 29x2.6" or WTB Ranger TCS 29x2.6", Rear: Maxxis Rekon TR 29x2.6" or WTB Ranger TCS 29x2.6"
Brakes
Brakes
Shimano MT410 Hydraulic
Brake Levers
Shimano MT410 Hydraulic

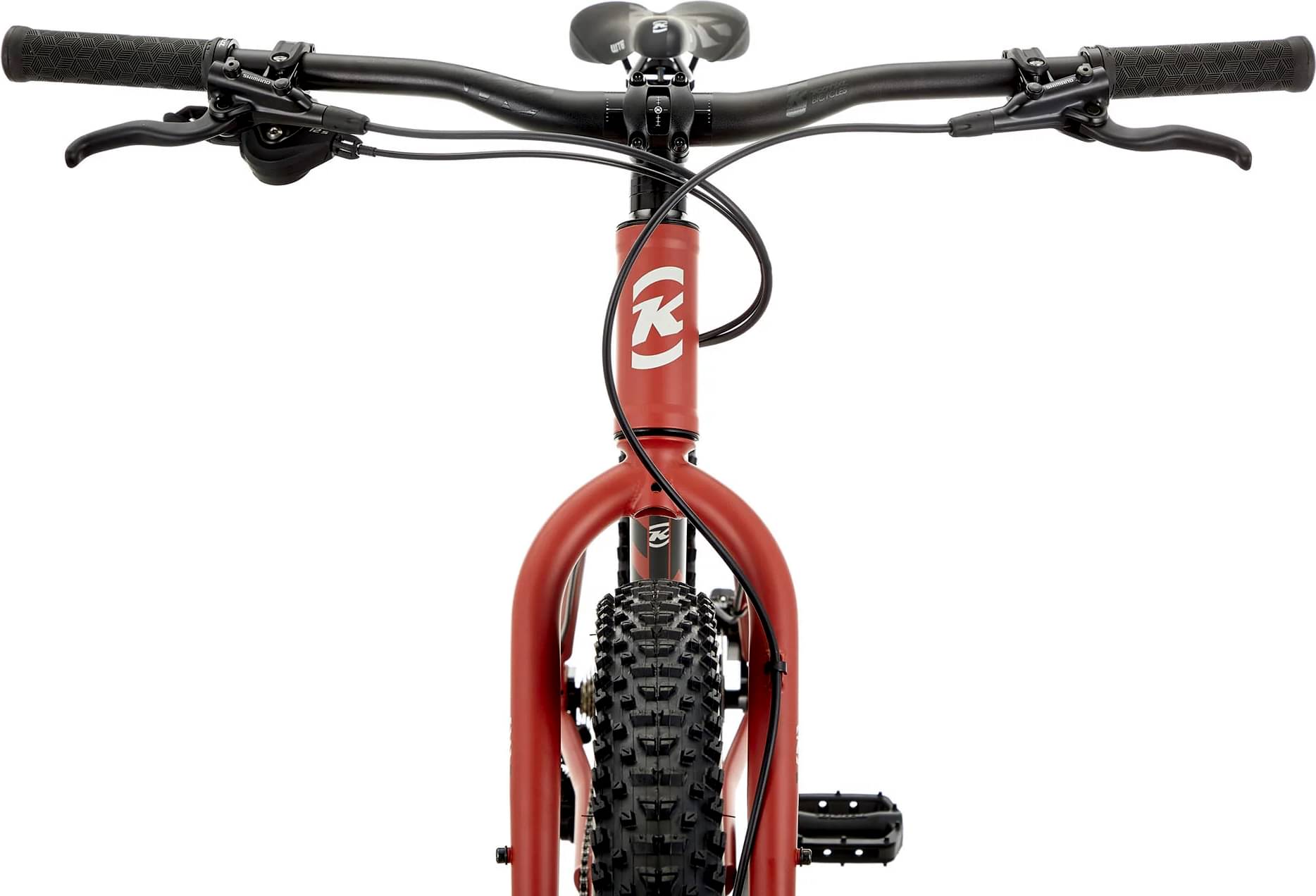

Cockpit
Stem
Kona XC/BC
Handlebar
Kona XC/BC Riser
Grips
Kona Key Grip
Headset
TH ZST No.10
Seat
Saddle
WTB Volt
Seatpost
Kona Thumb w/Offset 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.384 mm | 1.327 mm | 1.276 mm | 1.206 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 693 mm | 722 mm | 750 mm | 789 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 97 mm | 97 mm | 97 mm | 97 mm |
| Stack | 588 mm | 597 mm | 606 mm | 615 mm |
| Reach | 425 mm | 450 mm | 475 mm | 510 mm |
| Top Tube Length | 582 mm | 610 mm | 637 mm | 675 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1115 mm | 1144 mm | 1173 mm | 1211 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 695 mm | 731 mm | 768 mm | 810 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
