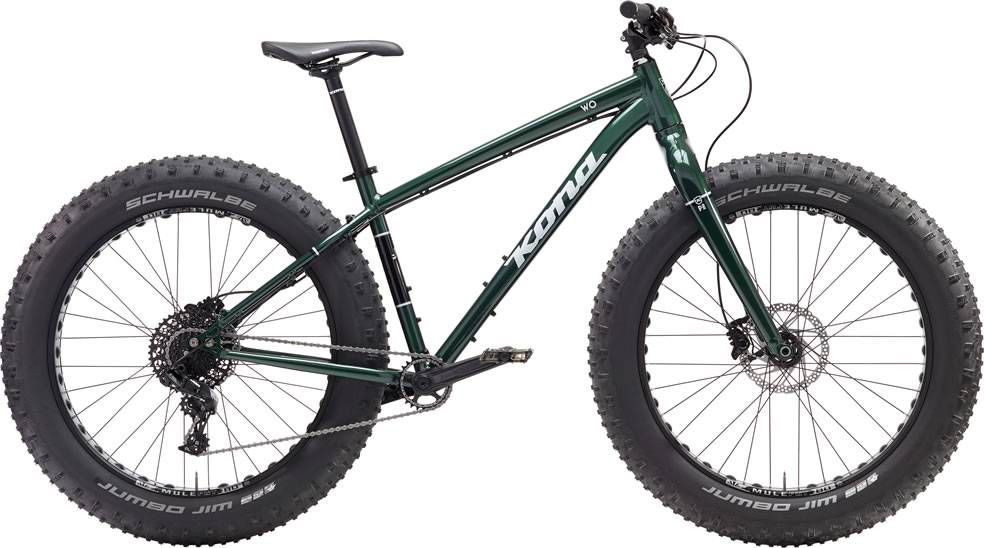

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Groupset NX -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Fat 7005 Aluminum
Suspension Fork
Kona Wo Fat Disc
Rear Shock
n/a
Drivetrain
Rear Derailleur
SRAM NX
Front Derailleur
n/a
Shift Levers
SRAM NX
Cassette
SRAM PG1130 11-42t 11spd
Crank
26t Narrow/wide
Bottom Bracket
RaceFace
Chain
SRAM PC1110
Chain Guide
n/a
Pedals
Wellgo Platform
Wheels
Front Hub
Joytech 150x15mm
Rear Hub
Joytech 190x10mm
Rims
Sun Ringle MuleFut
Spokes
Stainless Black 14g
Tires
Schwalbe Jumbo Jim Tubeless Easy Snakeskin 26x4.8"
Brakes
Brakes
Shimano Hydraulic
Brake Levers
Shimano Hydraulic
Disk Rotors
Shimano Deore 180mm
Cockpit
Stem
Kona XC
Handlebar
Kona XC/BC Riser
Grips
Kona S-LOG
Headset
FSA No. 57B
Seat
Saddle
Kona Fat
Seatpost
Kona XC/BC 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.44 mm | 1.38 mm | 1.31 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 677 mm | 705 mm | 734 mm | 767 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 73 mm | 73 mm | 73 mm | 73 mm |
| Stack | 606 mm | 615 mm | 624 mm | 634 mm |
| Reach | 403 mm | 428 mm | 453 mm | 483 mm |
| Top Tube Length | 589 mm | 617 mm | 645 mm | 677 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1123 mm | 1152 mm | 1180 mm | 1214 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 718 mm | 753 mm | 778 mm | 788 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
About this model
Wo is a Kona Wo model. Kona released 10 bikes variations of this model so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Fatbike bikes average price
According to our calculations, the average cost of a Fatbike bike that is reliable is 1743$. However, this doesn’t mean that if you spend less money on a Fatbike bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2017 and its price was 1899$. Comparing the average cost of a Fatbike bike to this one, you will see that Wo price is 8.95% higher.
Wo components
Wheels size
The wheels on Wo are the 26″ aluminum type. Being a little smaller, these wheels will fit both small and tall riders. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Kona Wo has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Wo comes in 4 sizes, that range from 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
