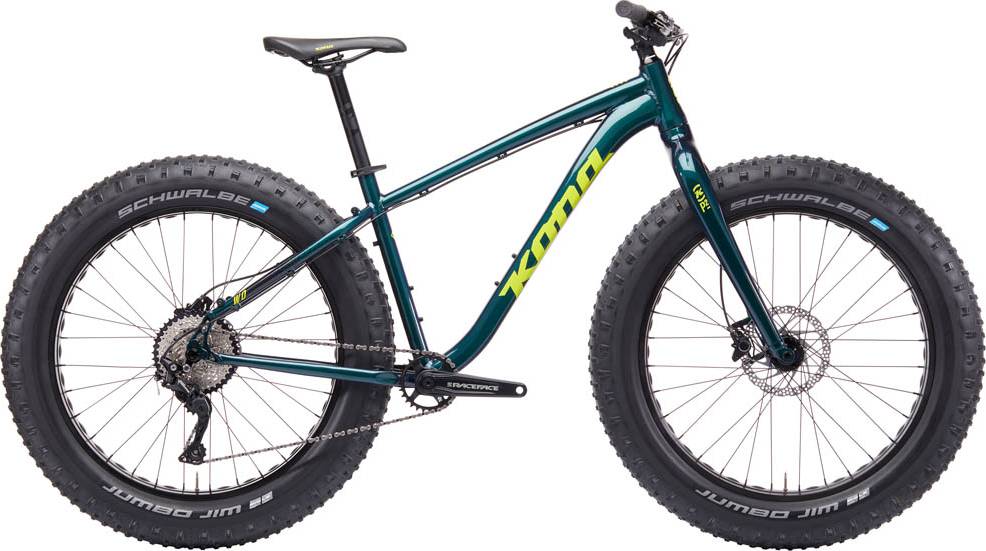

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Groupset Deore, Race Face -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Kona Fat 6061 Aluminum Butted
Suspension Fork
Kona Wo Fat Disc
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Deore
Front Derailleur
n/a
Shift Levers
Shimano Deore
Cassette
Shimano Deore 11-42t 10spd
Crank
RaceFace Ride, 28t Narrow/Wide
Bottom Bracket
RaceFace 100mm
Chain
KMC X10
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
KT 150x15mm
Rear Hub
KT 197x12mm
Rims
Shinning SB-T80
Spokes
Stainless Black 14g
Tires
Schwalbe Jumbo Jim EVO Liteskin 26x4.8"
Brakes
Brakes
Shimano Hydraulic
Brake Levers
Shimano Hydraulic
Disk Rotors
Shimano RT56 180mm
Cockpit
Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip
Headset
FSA No.57B
Seat
Saddle
Kona Fat
Seatpost
Kona XC/BC 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.44 mm | 1.38 mm | 1.31 mm |
| Bottom Bracket Height | 320 mm | 320 mm | 320 mm | 320 mm |
| Front Center | 677 mm | 705 mm | 694 mm | 767 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 73 mm | 73 mm | 74 mm | 73 mm |
| Stack | 606 mm | 615 mm | 625 mm | 634 mm |
| Reach | 403 mm | 428 mm | 453 mm | 483 mm |
| Top Tube Length | 589 mm | 617 mm | 645 mm | 677 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1123 mm | 1152 mm | 1180 mm | 1214 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 733 mm | 762 mm | 786 mm | 796 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
About this model
Wo completes the Kona Wo model. There are 10 bikes that carry this model name.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Fatbike bikes average price
If you want to purchase a solid Fatbike bike, it is important to know that the average cost is 1743$. However, even if your budget is less than the average, you might still be able to get a top-quality Fatbike bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2019 for 1599$. Comparing this to the average Fatbike bike price, we see that the price is 9.01% smaller.
Overview of components
Wheels
When it comes to wheels, the Wo bike is equipped with the 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Wo has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Kona Wo bike has 4 sizes, in the range of 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
