Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT Advent X -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components

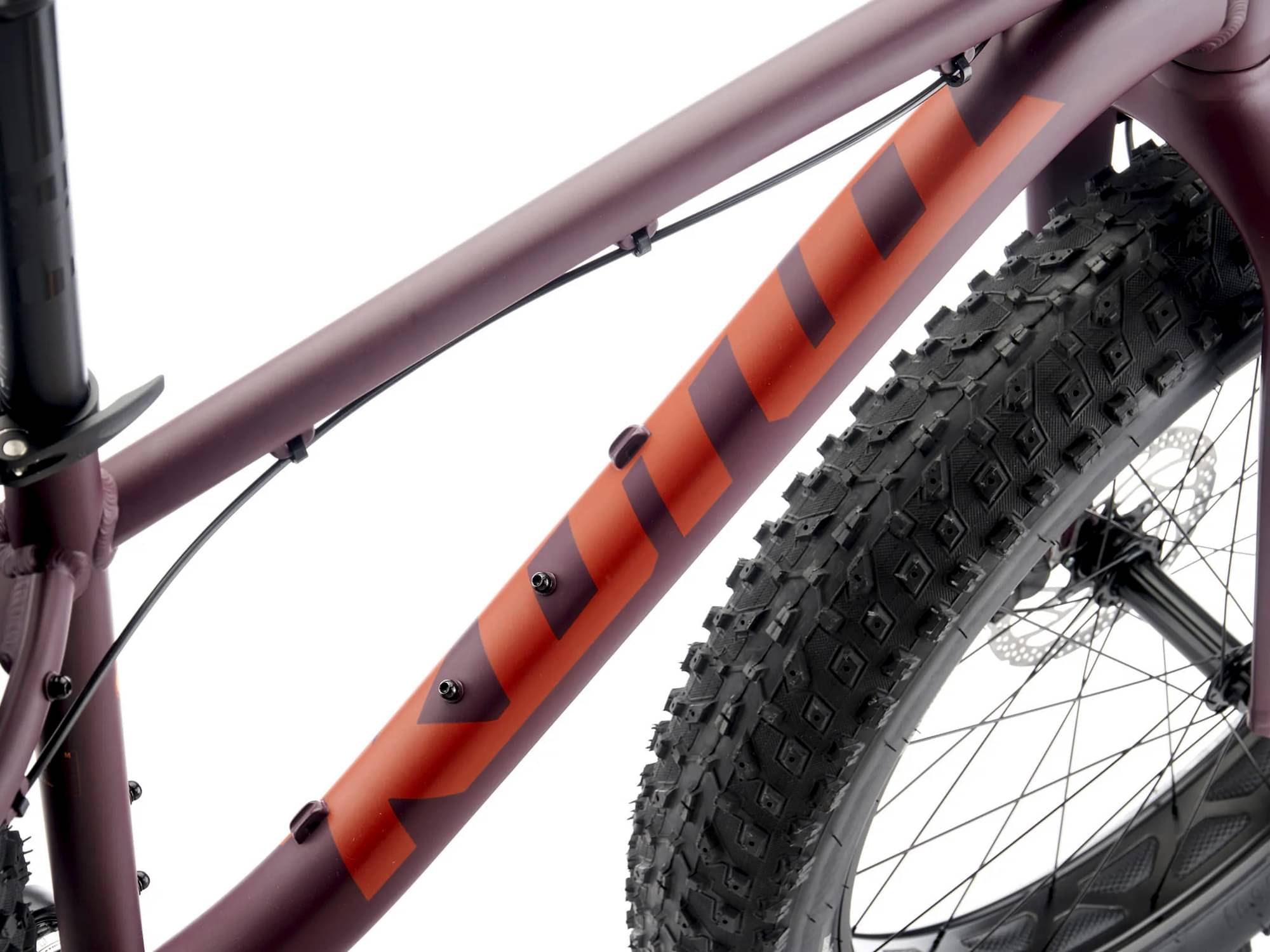

Frame
Frame
Kona Fat 6061 Aluminum Butted
Suspension Fork
Kona Wo Fat Disc Aluminum
Rear Shock
n/a
Drivetrain
Rear Derailleur
Microshift Advent X
Front Derailleur
n/a
Shift Levers
Microshift Advent X
Cassette
Microshift Advent X 11-48t 10spd

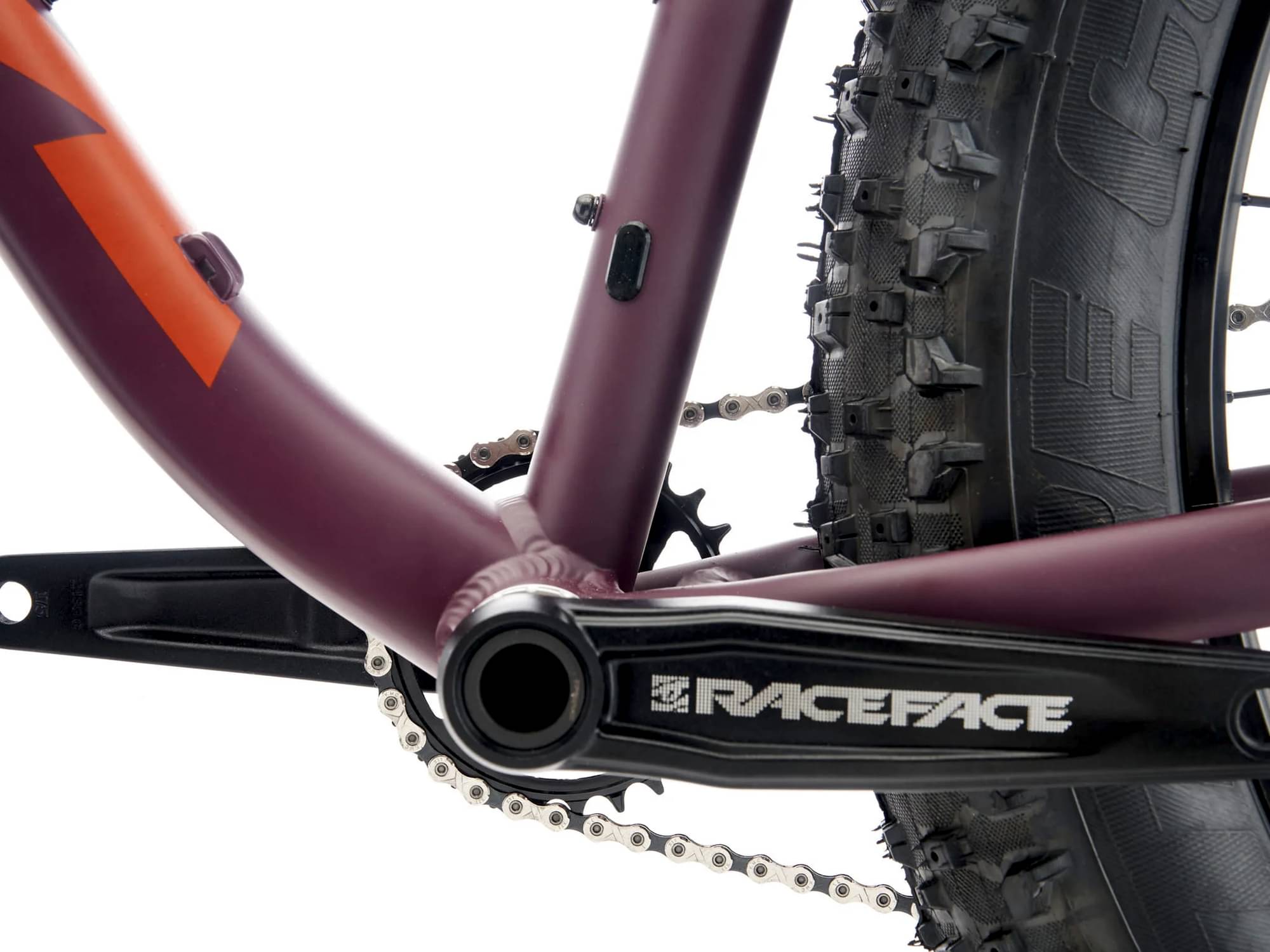

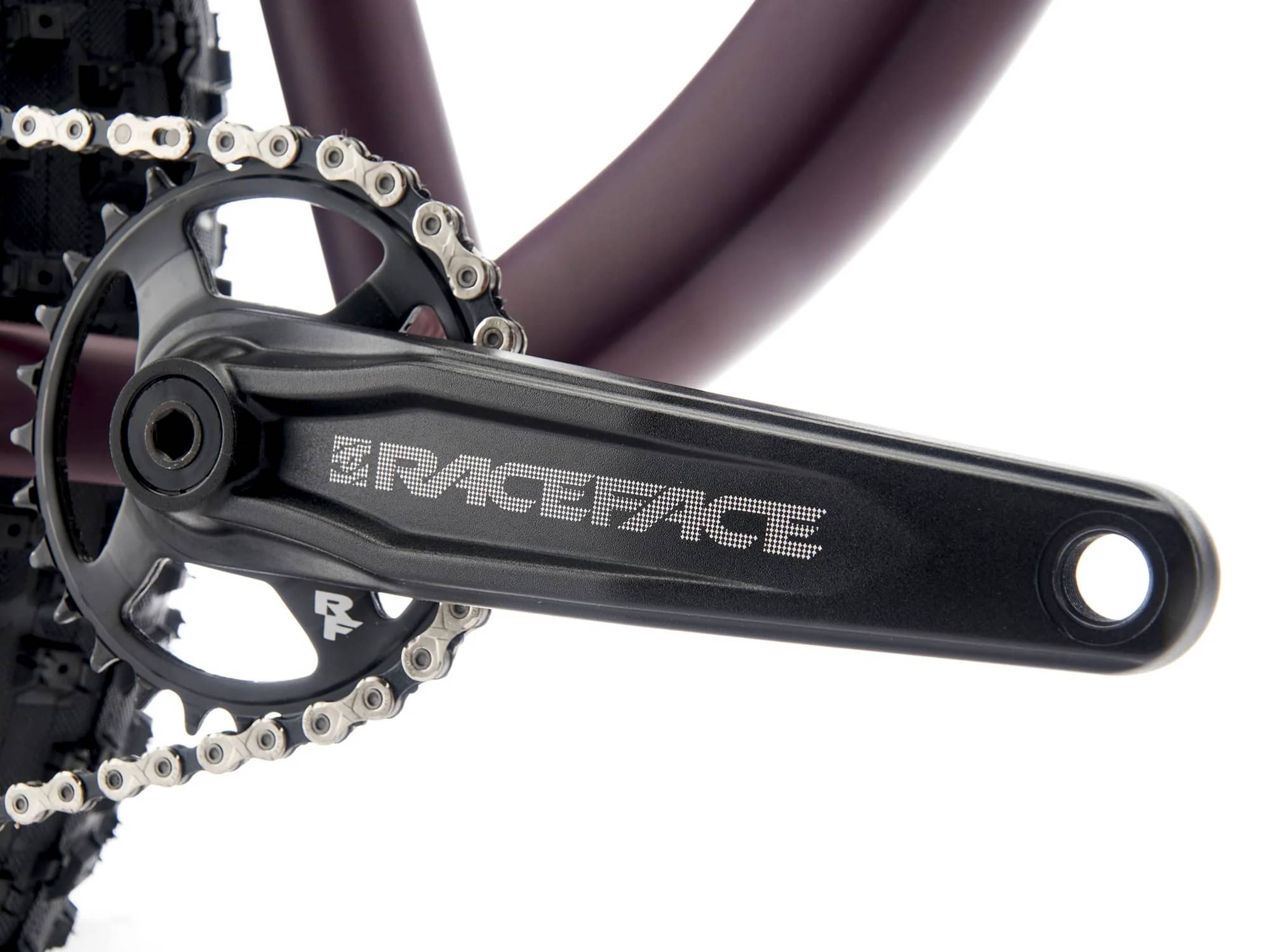

Crank
Race Face Ride Fat, 28t Wide/Narrow
Bottom Bracket
Race Face 100mm
Chain
KMC X10
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
KT 150x15mm
Rear Hub
KT 197x12mm

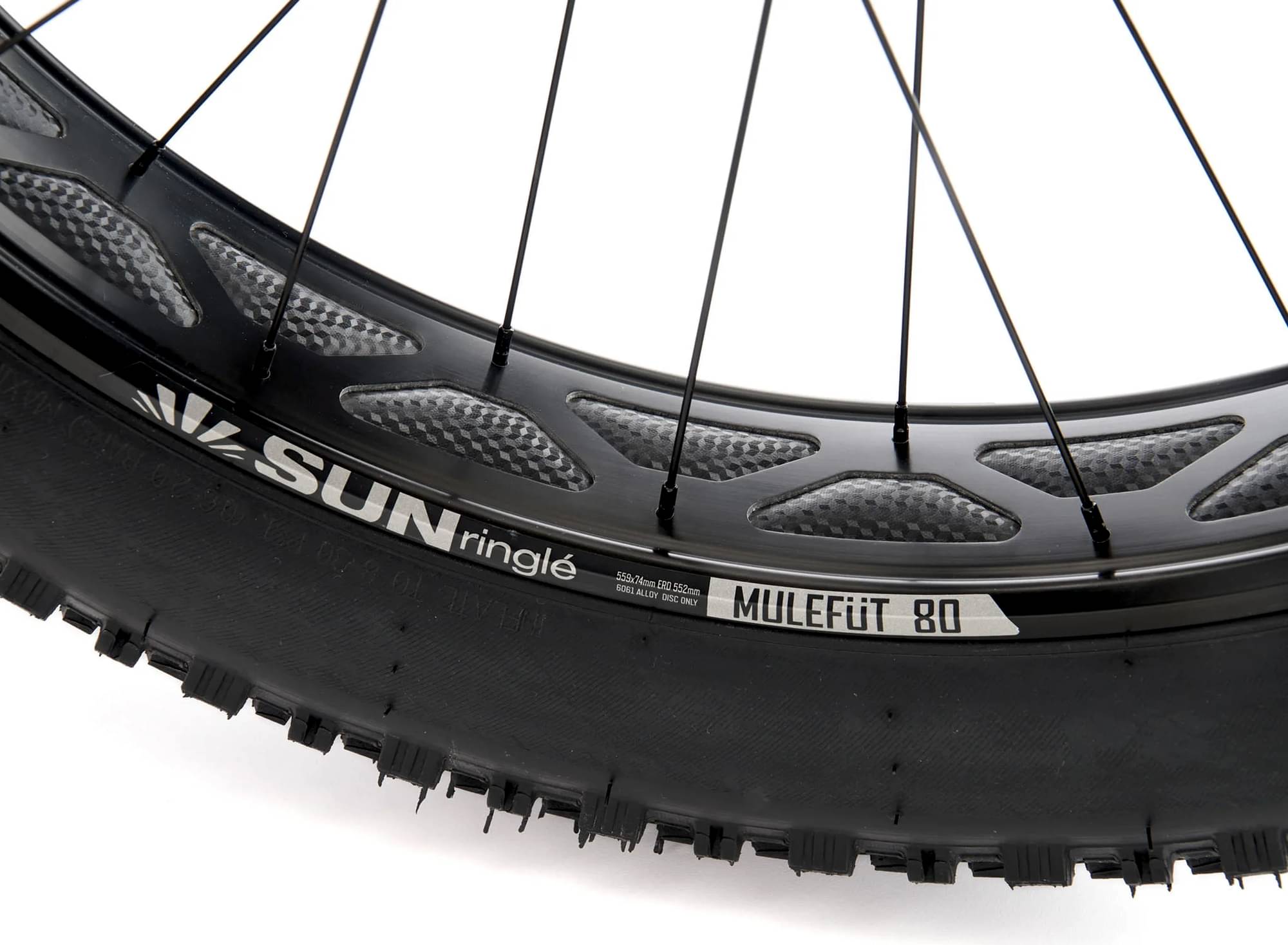

Rims
Sun Ringle Mulefut 80 Tubeless Ready
Spokes
Stainless Black 14g

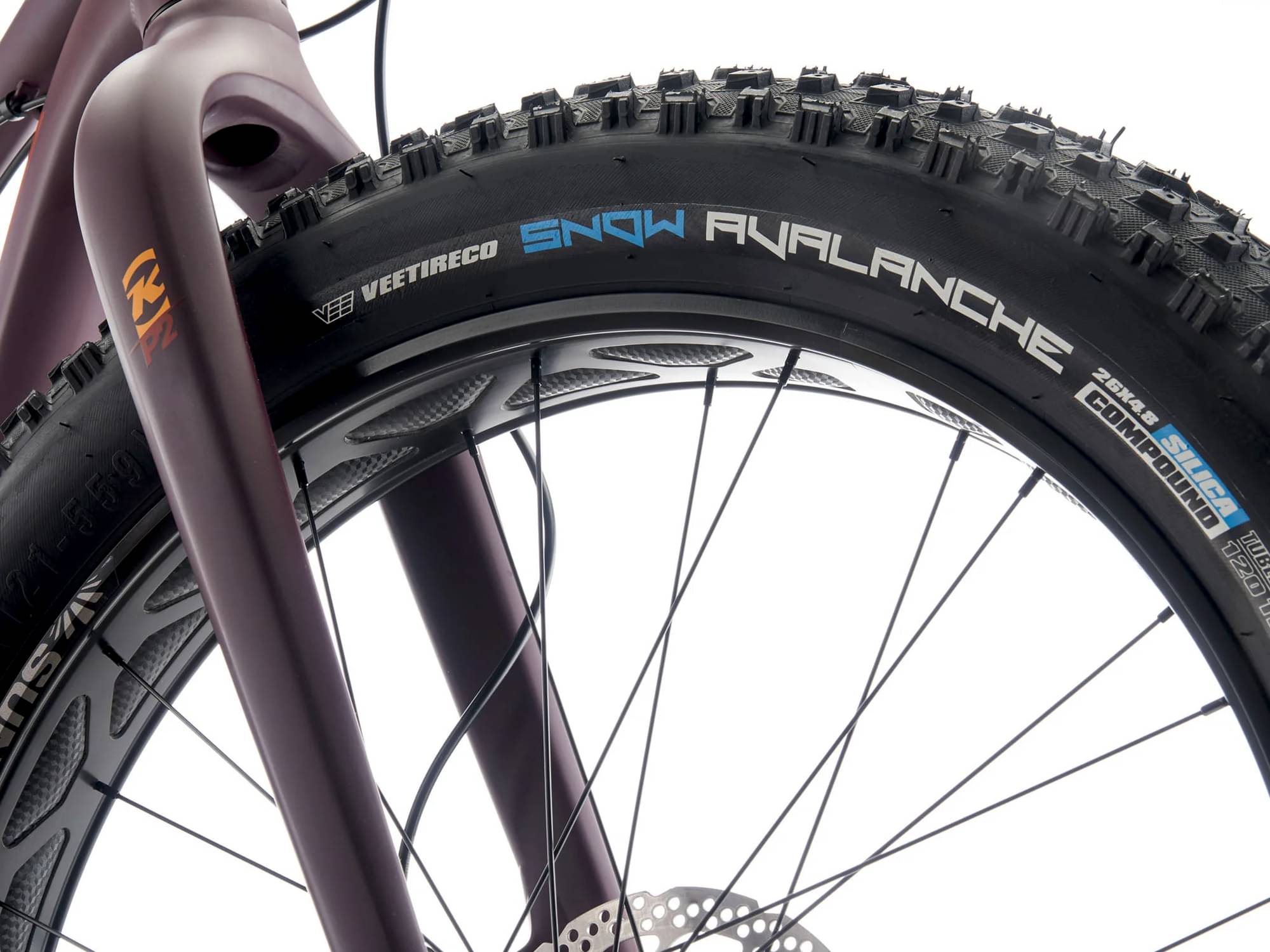

Tires
Front: Vee Tire Snow Avalanche SC TR 26x4.8", Rear: Vee Tire Snowshoe XL SC TR 26x4.8"

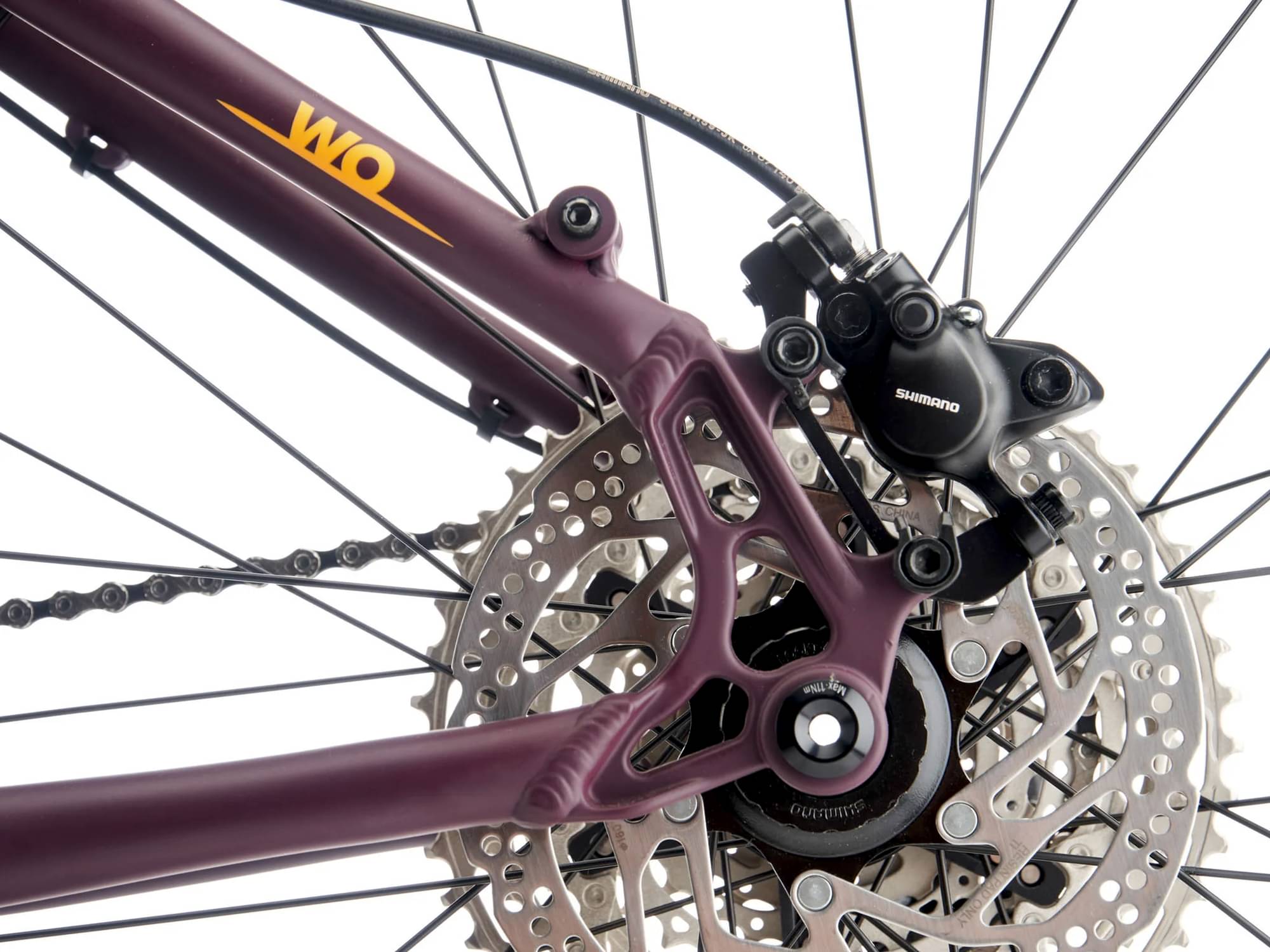

Brakes
Brakes
Tektro M280 Hydraulic

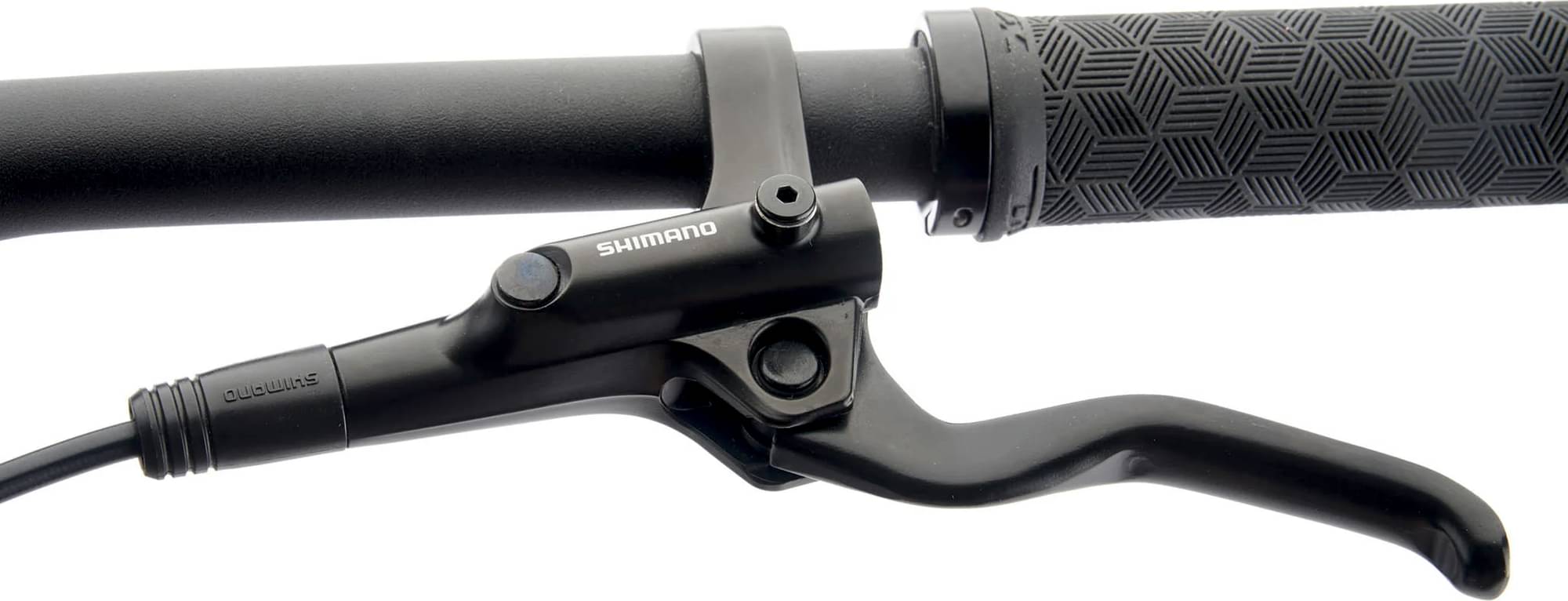

Brake Levers
Tektro M280 Hydraulic

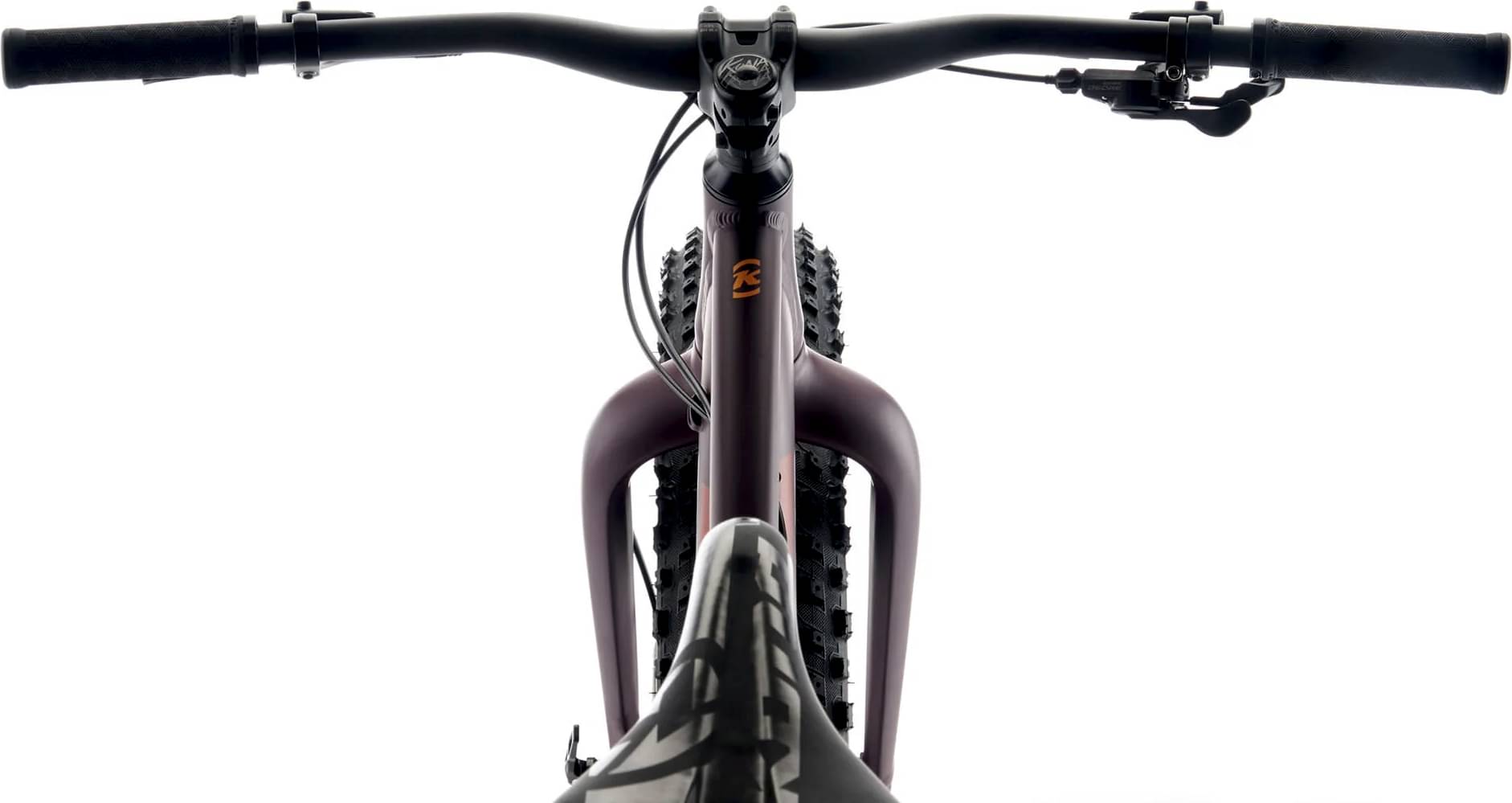

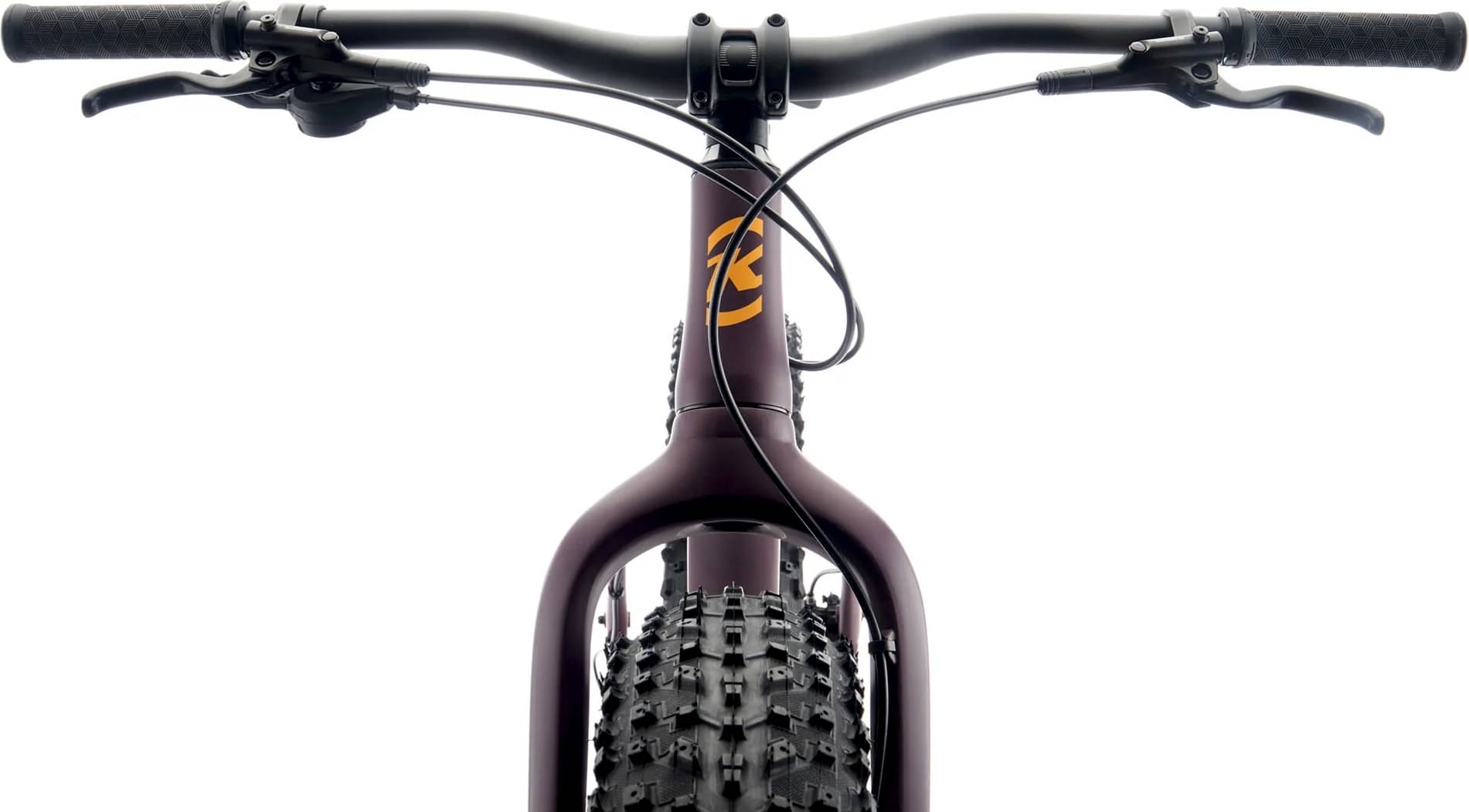

Cockpit
Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip

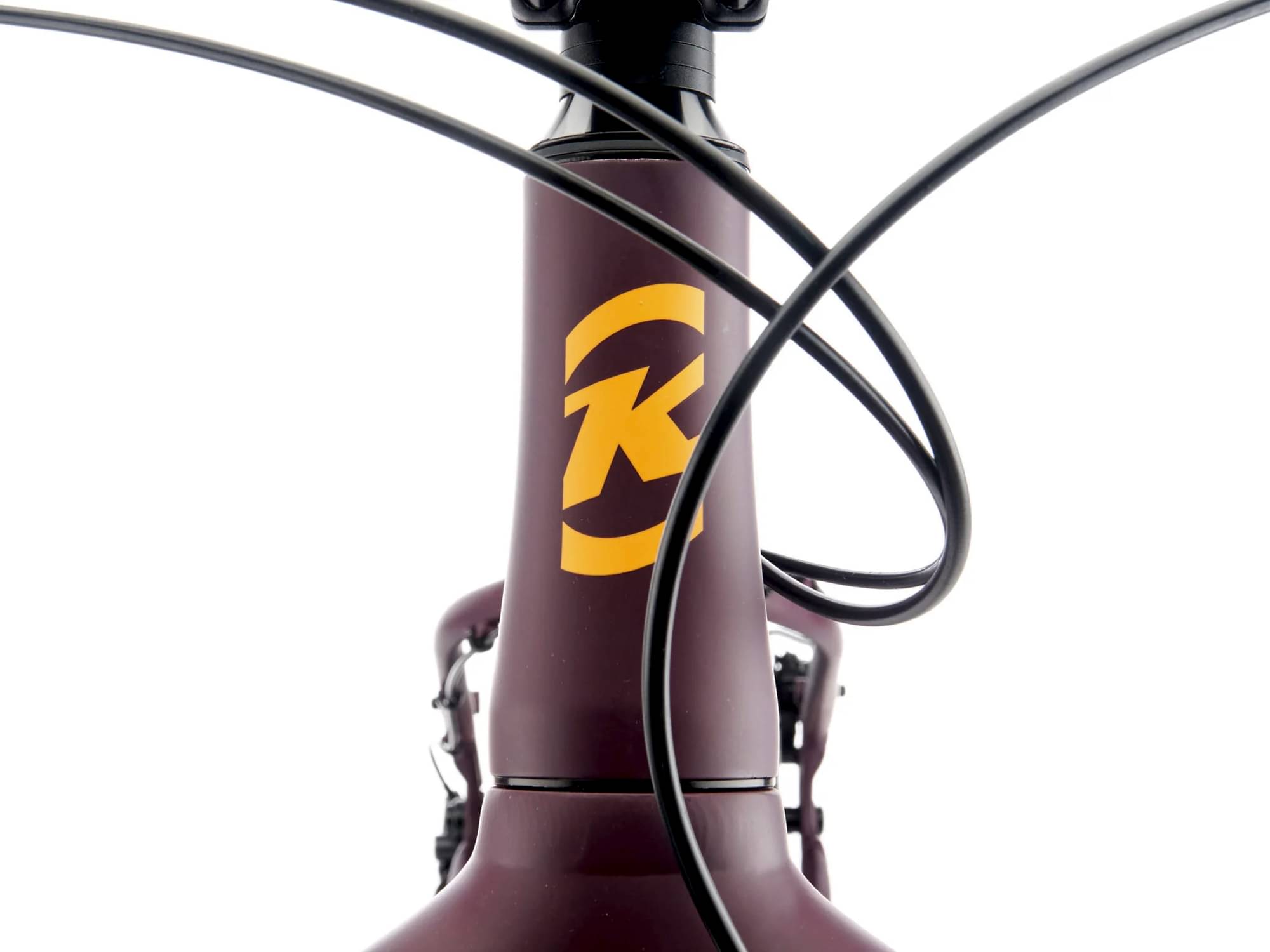

Headset
Feimin FP-H868B
Seat
Saddle
Kona Fat
Seatpost
Kona XC/BC 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.501 mm | 1.435 mm | 1.378 mm | 1.311 mm |
| Bottom Bracket Height | 324 mm | 324 mm | 324 mm | 324 mm |
| Front Center | 677 mm | 705 mm | 694 mm | 767 mm |
| Rake | 55 mm | 55 mm | 55 mm | 55 mm |
| Trail | 73 mm | 73 mm | 74 mm | 73 mm |
| Stack | 608 mm | 617 mm | 627 mm | 636 mm |
| Reach | 405 mm | 430 mm | 455 mm | 485 mm |
| Top Tube Length | 591 mm | 619 mm | 647 mm | 679 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1125 mm | 1154 mm | 1182 mm | 1216 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 739 mm | 768 mm | 792 mm | 802 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
