Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Deore -
Suspension Rigid -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 170cm
MD
157cm - 182cm
LG
175cm - 195cm
XL
180cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

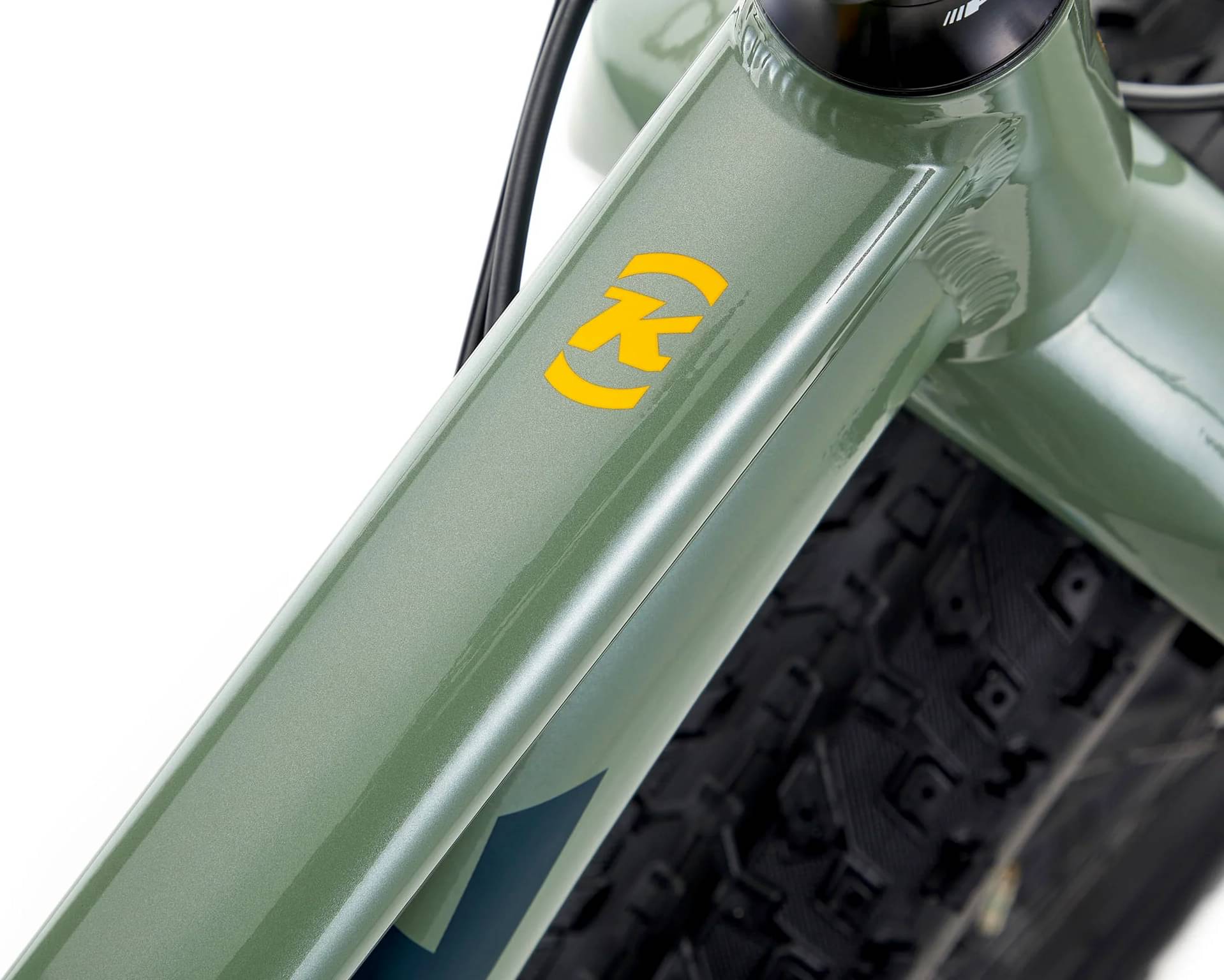

Kona Fat 6061 Aluminum Butted
Suspension Fork
Kona Wo Fat Carbon Disc
Rear Shock
n/a
Drivetrain

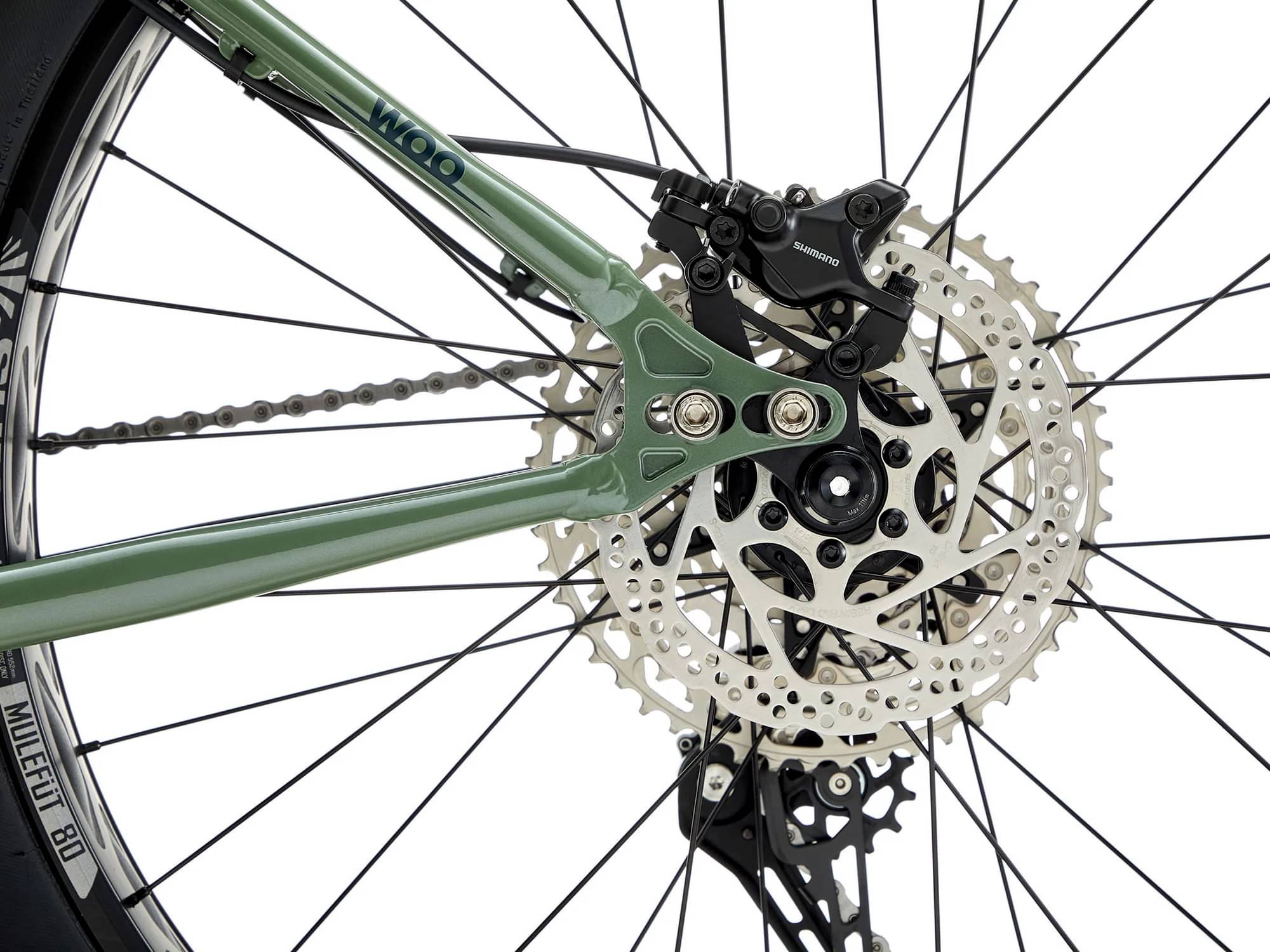

Rear Derailleur
Shimano Deore
Front Derailleur
n/a
Shift Levers
Shimano Deore
Cassette
Shimano Deore 11-51t 12 spd
Crank
Race Face Ride FAT 190, 28t Ride Wide Narrow
Bottom Bracket
Race Face PF121
Chain
Shimano Deore 12 spd
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Formula 150x15mm
Rear Hub
Formula 197x12mm
Rims

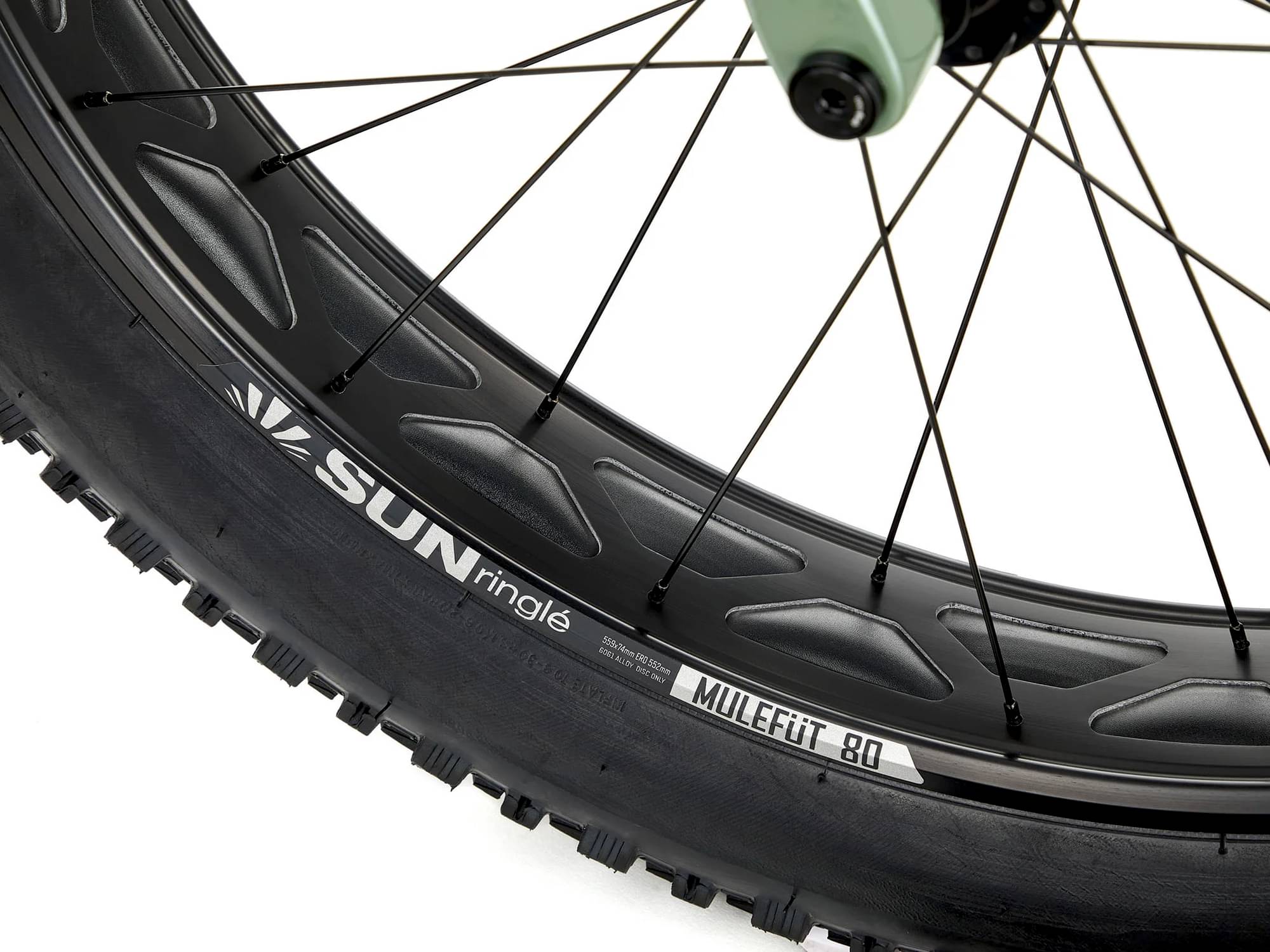

Sun Ringle Mulefut 80 Tubeless Ready
Spokes
Stainless Black 14g
Tires

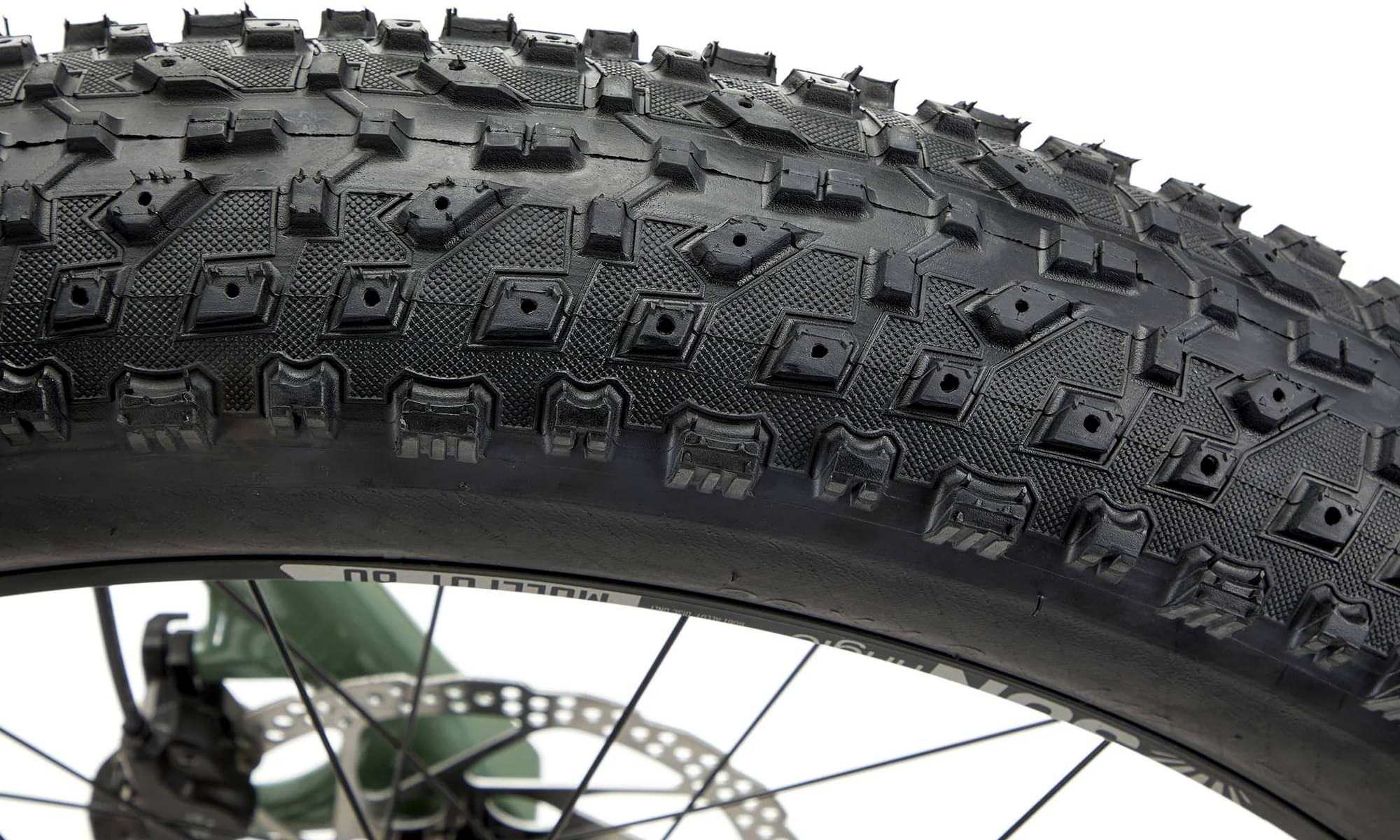

Front: Vee Tire Snow Avalanche TR 26x4.8", Rear: Vee Tire Snowshoe XL TR 26x4.8"
Brakes
Brakes
Shimano MT410 Hydraulic
Brake Levers
Shimano M4100 Hydraulic
Cockpit
Stem
Kona XC/BC 35
Handlebar
Kona XC/BC 35
Grips
Kona Key Grip
Headset
FSA No.57B
Seat
Saddle
Kona Fat
Seatpost
Kona XC/BC 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.484 mm | 1.417 mm | 1.358 mm | 1.274 mm |
| Bottom Bracket Height | 318 mm | 319 mm | 319 mm | 319 mm |
| Front Center | 710 mm | 737 mm | 764 mm | 800 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 75 mm | 76 mm | 77 mm | 76 mm |
| Stack | 644 mm | 649 mm | 656 mm | 660 mm |
| Reach | 434 mm | 458 mm | 483 mm | 518 mm |
| Top Tube Length | 605 mm | 632 mm | 659 mm | 696 mm |
| Seat Tube Angle | 74.7 ° | 74.7 ° | 74.6 ° | 74.6 ° |
| Seat Tube Length | 381 mm | 432 mm | 478 mm | 508 mm |
| Head Tube Angle | 69.3 ° | 69.2 ° | 69.2 ° | 69.2 ° |
| Head Tube Length | 120 mm | 125 mm | 130 mm | 135 mm |
| Chainstay Length | 420 mm | 420 mm | 420 mm | 420 mm |
| Wheelbase | 1122 mm | 1149 mm | 1176 mm | 1213 mm |
| Bottom Bracket Drop | 66 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 736 mm | 764 mm | 798 mm | 819 mm |
| Wheels | 26" | 26" | 26" | 26" |
| Rider Min Height | 152 cm | 157 cm | 175 cm | 180 cm |
| Rider Max Height | 170 cm | 182 cm | 195 cm | 195 cm |
