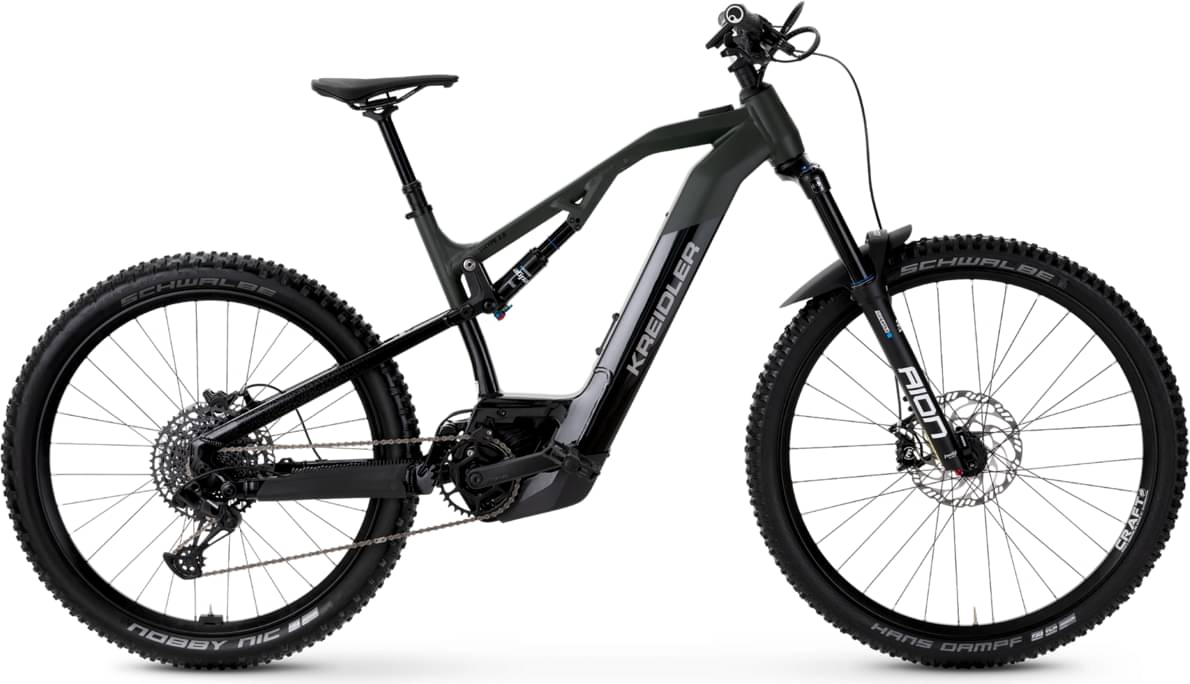

kreidler SWYPE 2.0 FS Sram SX Eagle 12-speed 625Wh 2024
2024 E-bike
Weight | 26.5 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 160mm -
Fork Suntour AION
-
Groupset SX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Performance Line CX, BES3, 36 V mid-engine, 250 Watt -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
fully integrated, Aluminium 6061, Boost 12 x 148 mm, Travel 160 mm
Suspension Fork
Suntour Aion35, Boost, 160 mm suspension travel with lockout function,
Rear Shock
Suntour Edge 205 x 65 mm, Trunnion
Drivetrain
Rear Derailleur
N/V
Shift Levers
SRAM SX Eagle, 12-speed
Cassette
SRAM PG-1210 Eagle, 12-speed, 11-50 teeth
Crank
SRAM SX Eagle 12-speed 34 teeth
Bottom Bracket
Miranda Aluminium, 165 mm, SRAM Eagle chain ring 34 teeth, Narrow Wide
Chain
SRAM Eagle
Chain Guide
chain guide
Pedals
Marwi SP-450 Flat Pedal, black
Wheels
Front Hub
Sonos, Boost, 15 x 110 mm, 32 holes, 6-holes
Rear Hub
Sonos, Boost, 12 x 148 mm, 32 holes, 6-holes
Rims
Schürmann Craft 35, 29"front / 27.5" rear
Spokes
2.0 mm, black
Tires
Schwalbe Hans Dampf 60-622 (front), Nobby Nic 70-584 (rear)
Brakes
Brakes
Magura MT Trail Sport 4 pistons (front 203 mm / rear 203 mm) disc brake
Brake Levers
Magura MT Thirty
Cockpit
Stem
Humpert Ergotec Bass, 45 mm, 31.8 mm, Level 6+
Handlebar
Humpert Ergotec Low Riser Bar, 780 mm, 31.8 mm, Level 6+
Grips
Ergon GA20, with clamp
Seat
Saddle
Selle Italia Vivo E-MTB
Seatpost
Humpert Ergotec Atar, patent, 31.6 mm, 300 mm
Motor & Battery
Motor
Bosch Performance Line CX, BES3, 36 V mid-engine, 250 Watt
Battery
Bosch Performance Line CX, BES3, 36 V mid-engine, 250 Watt
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 39cm | 42cm | 45cm | 48cm |
|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" |
