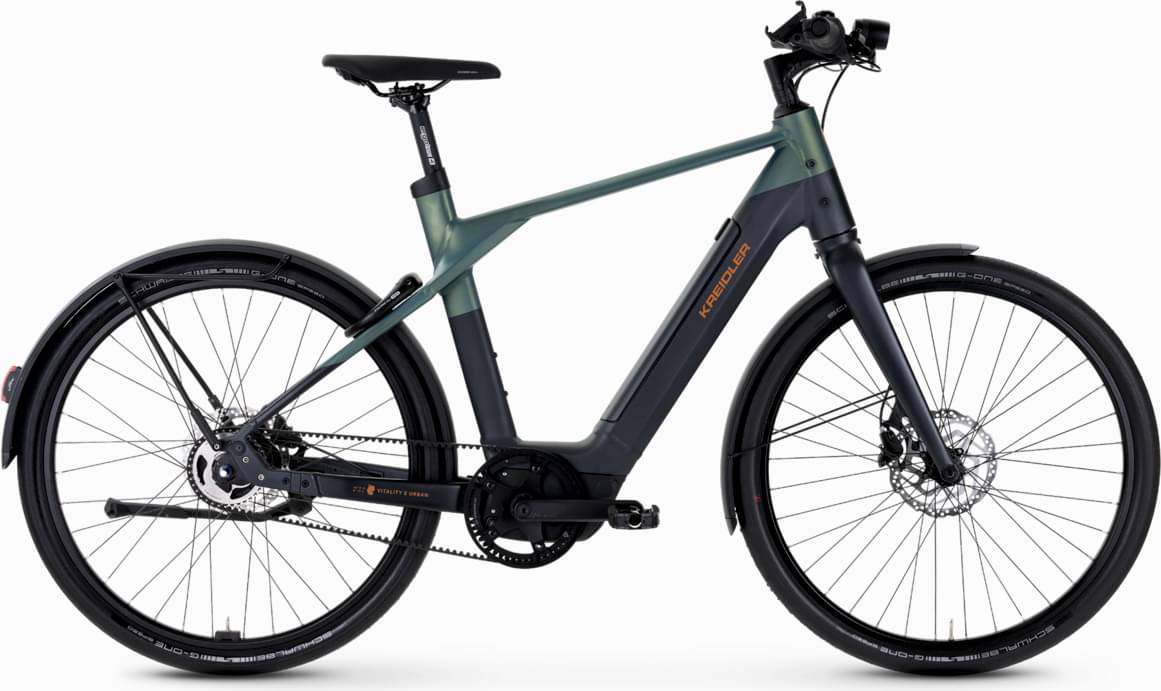

kreidler Vitality E Urban Shimano Nexus 5-speed free wheel 400Wh Disc Gates 2024
2024 E-bike
Weight | 23.8 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Nexus -
Suspension Rigid -
Motor Bosch 250W 55Nm mid-drive -
Battery Bosch Performance Line SX, BES3, 36 V mid-engine, 250 Watt Watt -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum 6061, Bosch fully integrated
Suspension Fork
Kreidler 27,5" aluminum,
Rear Shock
- - -
Drivetrain
Shift Levers
Shimano Nexus SG-C7000-5D, 5-speed free wheel
Cassette
Gates CDX pulley, 36 teeth
Crank
Shimano Nexus 5-speed free wheel 52 teeth
Bottom Bracket
Miranda aluminum, 170 mm, with Gates CDC 52 teeth
Chain
Gates CDX-drive belt
Chain Guide
Gates trouser protection ring
Pedals
Marwi SP-880
Wheels
Front Hub
Joytech S-Elite D981, 12 x 100 mm, Centerlock, 36 holes
Rear Hub
Shimano Nexus 5-speed SG-C7000-5D, Centerlock, 36 holes, free wheel
Rims
Schürmann YAK21 Disc Double Wall Alloy Rim, 36 holes
Spokes
2,0 mm, black
Tires
Schwalbe G-One Speed Performance, 50-584, reflex
Brakes
Brakes
Shimano BR-MT200 (front 180 mm / rear 180 mm) Disc
Brake Levers
Shimano Altus, 3-finger-brake lever
Cockpit
Stem
Satori TM39 handlebar- / stem-combination, aluminum, 90 mm
Handlebar
Satori TM39 handlebar- /stem-combination, aluminum, 630 mm
Grips
Herrmans Altro, with clamp
Seat
Saddle
Selle Royal Essenza
Seatpost
Humpert Ergotec Atar, patent, 31,6 mm, 300 mm
Motor & Battery
Motor
Bosch Performance Line SX, BES3, 36 V mid-engine, 250 Watt Watt
Battery
Bosch Performance Line SX, BES3, 36 V mid-engine, 250 Watt Watt
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 55cm | 60cm | 45cm |
|---|---|---|---|---|
| Wheels | 650 | 650 | 650 | 650 |
