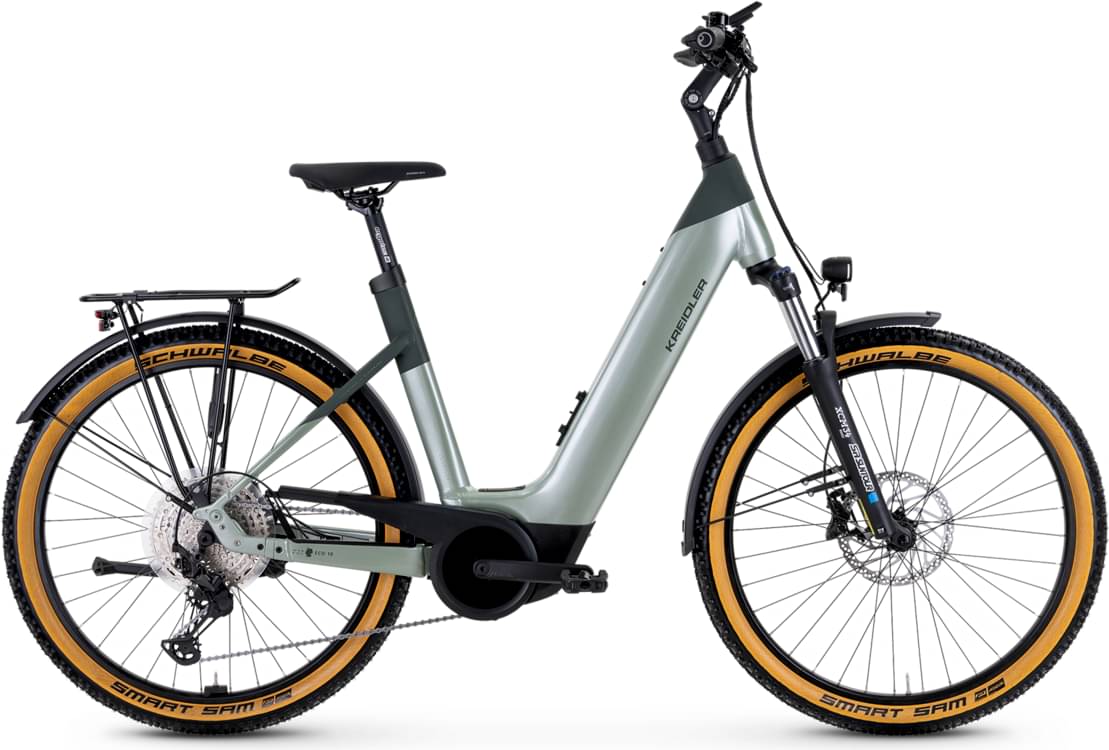

kreidler Vitality Eco 10 Cross Shimano Deore XT 11-speed Linkglide 750Wh Disc 2024
2024 E-bike
Weight | 27.6 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Performance Line CX, BES3, 36 V mid-engine, 250 Watt -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum 6061, Bosch BES3, fully integrated
Suspension Fork
Suntour Mobie34, 100 mm travel with Lockout-Function,
Rear Shock
- - -
Drivetrain
Rear Derailleur
- - -
Shift Levers
Shimano Deore XT RD-M8130 Linkglide, 11-speed, Shadow Plus
Cassette
Shimano Deore XT CS-LG700, 11-speed, 11-50 teeth
Crank
Shimano Deore XT 11-speed Linkglide 38 teeth
Bottom Bracket
Miranda aluminum, 170 mm, KMC chainring 38 teeth
Chain
Shimano CN-LG500
Chain Guide
SKS Chainbow_E
Pedals
Marwi SP-102, Flat Pedal, aluminum, black
Wheels
Front Hub
Shimano HB-TC500, 15 x 100 mm, Centerlock, 36 holes
Rear Hub
Shimano Alivio FH-TC500, 12 x 142 mm, Centerlock, 36 holes
Rims
Schürmann YAK 25 Disc Double Wall Alloy Rim, 36 holes
Spokes
2,0 mm, black
Tires
Schwalbe Smart Sam, 57-584, Classic Skin
Brakes
Brakes
Shimano Deore BR-M6120, 4-pistons (front 203 mm / rear 203 mm) Disc
Brake Levers
Shimano Deore BL-M6100
Cockpit
Stem
HL TDS-C269 ahead, angle adjustable
Handlebar
Promax HB-3188, 740 mm
Grips
Ergon GP1, with clamp
Seat
Saddle
Selle Royal Essenza
Seatpost
Humpert Ergotec Atar, patent, 30.9 mm, 300 mm
Motor & Battery
Motor
Bosch Performance Line CX, BES3, 36 V mid-engine, 250 Watt
Battery
Bosch Performance Line CX, BES3, 36 V mid-engine, 250 Watt
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 55cm | 60cm | 45cm |
|---|---|---|---|---|
| Wheels | 650 | 650 | 650 | 650 |
