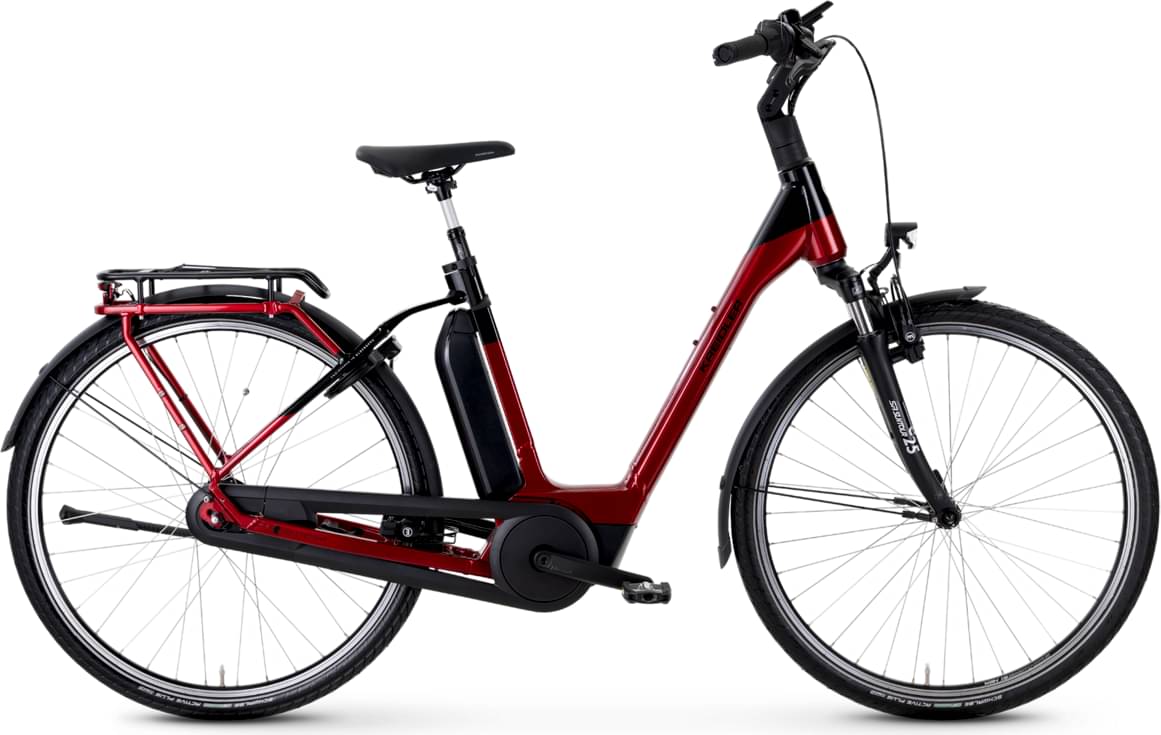

kreidler Vitality Eco 3 Comfort Shimano Nexus 7-speed free wheel 400Wh HS11 2024
2024 E-bike
Weight | 25.6 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork Suntour CR85 E25 -
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch Active Line Plus, BES3, 36 V mid-engine, 250 Watt -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum 6061, Bosch semi-integrated
Suspension Fork
Suntour CR85-E25,
Rear Shock
- - -
Drivetrain
Shift Levers
Shimano Nexus 7-speed free wheel
Cassette
Shimano, 19 teeth
Crank
Shimano Nexus 7-speed free wheel 38 teeth
Bottom Bracket
Miranda aluminum, 170 mm, KMC chainring 38 teeth
Chain
KMC Z1 EPT
Chain Guide
Hesling Fluente
Pedals
Marwi SP-811
Wheels
Front Hub
Shimano Alivio HB-T3000, 36 holes
Rear Hub
Shimano Nexus 7-speed SG-C3001-7R, 36 holes, free wheel
Rims
Schürmann YAK19 Double Wall Alloy Rim, 36 holes
Spokes
Niro 2,0 mm
Tires
Schwalbe Energizer Active Plus, 47-622, reflex
Brakes
Brakes
Magura HS11 rim brake
Brake Levers
Magura HS11, 3-finger-brake lever
Cockpit
Stem
Satori Python, angle adjustable, with cable integration
Handlebar
Trekking, 640 mm
Grips
Herrmans DD37, with clamp
Seat
Saddle
Selle Royal Essenza
Seatpost
Humpert Ergotec SP 5.0, patent, suspension, 27,2 mm, 350 mm
Motor & Battery
Motor
Bosch Active Line Plus, BES3, 36 V mid-engine, 250 Watt
Battery
Bosch Active Line Plus, BES3, 36 V mid-engine, 250 Watt
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 51cm | 55cm |
|---|---|---|---|
| Wheels | 700 | 700 | 700 |
