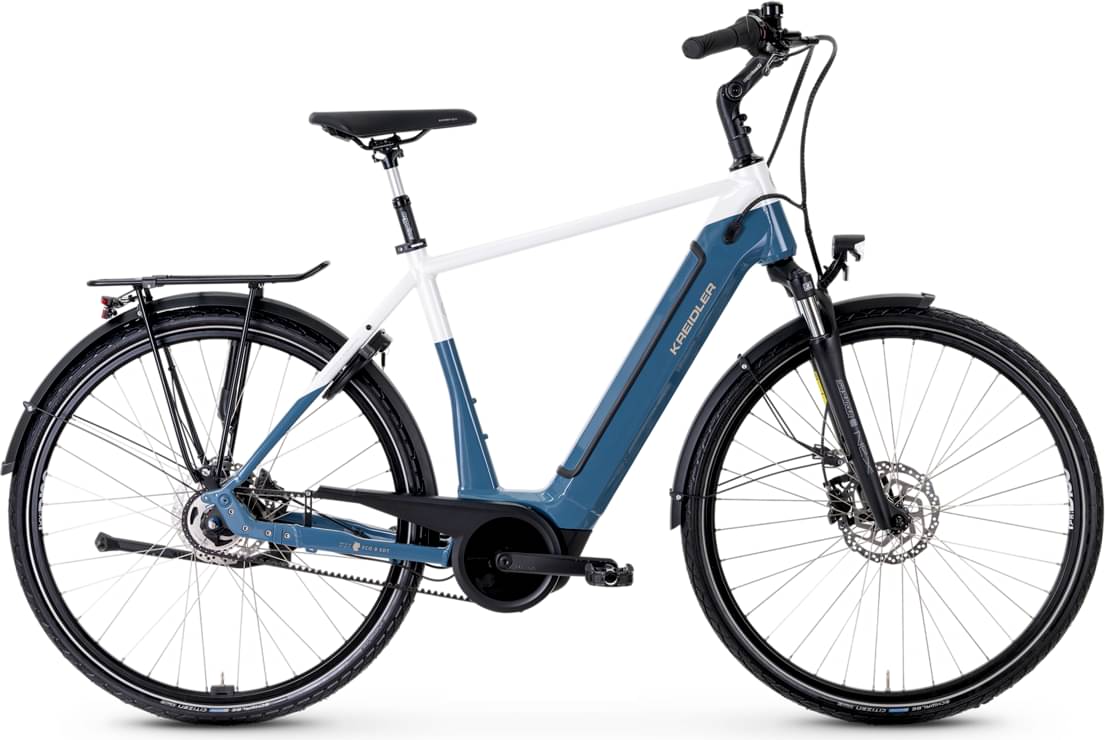

kreidler Vitality Eco 8 Edition Shimano Nexus 5-speed free wheel 625Wh Disc Gates 2024
2024 E-bike
Weight | 26.8 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork Suntour NEX -
Groupset Nexus -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch Performance Line, BES3, 36 V mid-engine, 250 Watt Watt -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum 6061, Bosch fully integrated
Suspension Fork
Suntour NEX-E25,
Rear Shock
- - -
Drivetrain
Shift Levers
Shimano Nexus SG-C7000-5D, 5-speed free wheel
Cassette
Gates CDX pulley, 32 teeth
Crank
Shimano Nexus 5-speed free wheel 46 teeth
Bottom Bracket
Miranda aluminum, 170 mm, 46 teeth
Chain
Gates CDX-drive belt
Chain Guide
Gates chainguard
Pedals
Marwi SP-823
Wheels
Front Hub
Shimano HB-TX505, Centerlock, 36 holes
Rear Hub
Shimano Nexus 5-speed SG-C7000-5D, Centerlock, 36 holes, free wheel
Rims
Schürmann YAK19 Disc Double Wall Alloy Rim, 36 holes
Spokes
Niro 2,0 mm
Tires
Schwalbe Citizen, 47-622, reflex
Brakes
Brakes
Shimano BR-MT200 (front 180 mm / rear 180 mm) Disc
Brake Levers
Shimano Altus, 3-finger-brake lever
Cockpit
Stem
Humpert Ergotec Octopus 50, angle adjustable
Handlebar
Humpert Ergotec City Cruiser, aluminum, 635 mm
Grips
Herrmans DD37, with clamp
Seat
Saddle
Selle Royal Essenza
Seatpost
Humpert Ergotec SP 5.0, patent, suspension, 31.6 mm, 350 mm
Motor & Battery
Motor
Bosch Performance Line, BES3, 36 V mid-engine, 250 Watt Watt
Battery
Bosch Performance Line, BES3, 36 V mid-engine, 250 Watt Watt
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 55cm | 60cm | 45cm |
|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 |
