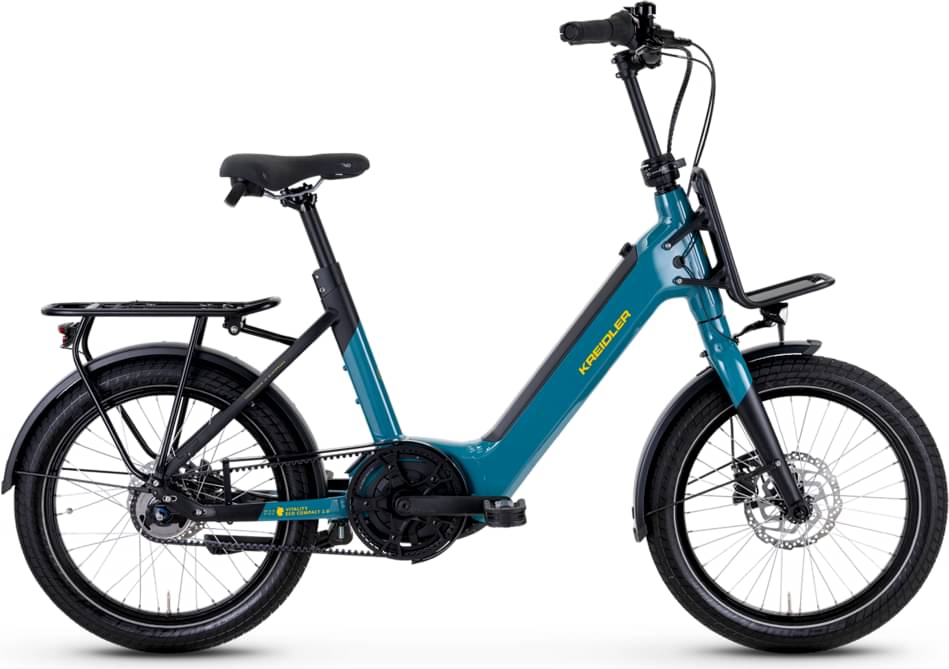

kreidler Vitality Eco Compact 2.0 Shimano Nexus 5-speed free wheel 625Wh Disc Gates 2024
2024 E-bike
Weight | 23.7 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 20" -
Groupset Nexus -
Suspension Rigid -
Motor Bosch 250W 63Nm mid-drive -
Battery Bosch Performance Line, BES3, 36 V mid-engine, 250 Watt Watt -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
aluminum 6061, Bosch fully integrated
Suspension Fork
Kreidler 20" aluminum,
Rear Shock
- - -
Drivetrain
Shift Levers
Shimano Nexus 5-speed free wheel
Cassette
Gates CDX pulley, 32 teeth
Crank
Shimano Nexus 5-speed free wheel 55 teeth
Bottom Bracket
Miranda aluminum, 165 mm, 55 teeth
Chain
Gates CDX-drive belt
Chain Guide
Hebie Chainbar
Pedals
Marwi SP-153, folding
Wheels
Front Hub
Shimano Alivio HB-QC300, Centerlock, 36 holes
Rear Hub
Shimano Nexus 5-speed SG-C7002-5D, Centerlock, 36 holes, free wheel
Rims
Ryde Andra 40 Disc Double Wall Alloy Rim, 36 holes
Spokes
2,0 mm, black
Tires
Schwalbe Marathon Super Moto-X, 62-406, reflex
Brakes
Brakes
Shimano BR-MT200 (front 180 mm / rear 160 mm) Disc
Brake Levers
Shimano Altus, 3-finger-brake lever
Cockpit
Stem
by.schulz Speedlifter T150, 150mm adjustable, ahead
Handlebar
Humpert Ergotec City Cruiser, aluminum, 635 mm
Grips
Herrmans DD37, with clamp
Seat
Saddle
Selle Royal Orbis Moderate, with carrying handle
Seatpost
Humpert Ergotec Skalar, patent, 27.2 mm, 400 mm, Safety Level 6
Motor & Battery
Motor
Bosch Performance Line, BES3, 36 V mid-engine, 250 Watt Watt
Battery
Bosch Performance Line, BES3, 36 V mid-engine, 250 Watt Watt
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm |
|---|---|
| Wheels | 20" |
| Rider Min Height | 120 cm |
