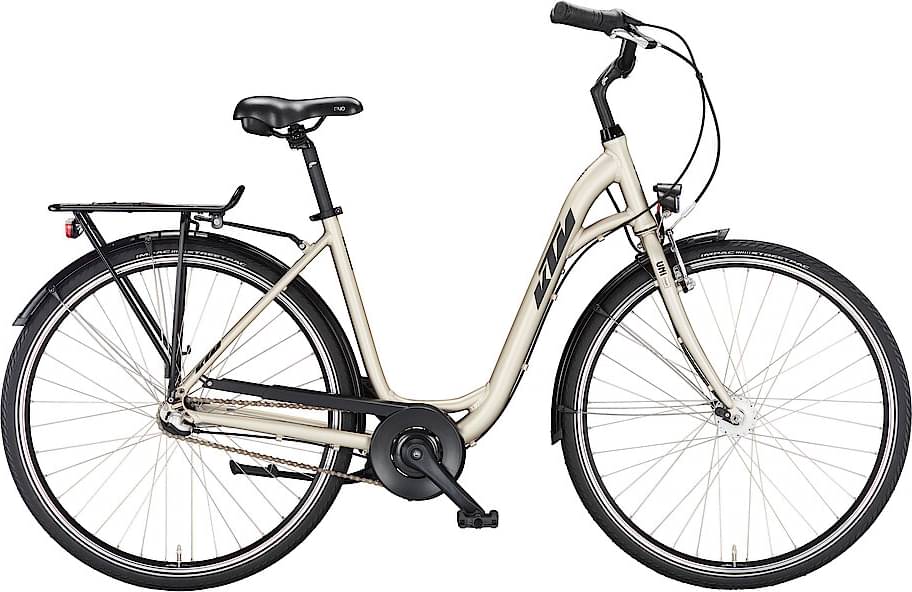

KTM CITY FUN 28 2025
2025 Urban
Estimate price |
930$
Weight | 14.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Groupset Nexus -
Suspension Rigid -
Drivetrain Internally Geared Hub -
Brakes Tektro Rim
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28" Alloy 6061 CITY FUN / C-7070
Suspension Fork
rigid CITY FUN 28
Drivetrain
Shift Levers
Shimano Nexus 3S42E-3 Revoshifter display
Cassette
Shimano Steps SM-GEAR 19T
Crank
Lasco RCF4138F17 38T
Chain
KMC Z1
Chain Guide
Herrmans Slyde 38T
Pedals
KTM Line Onroad BF
Wheels
Rims
KTM Line - Shimano DH-C3000-3 36H NT, silver / KTM 28" City 36H; 622x19 / Richman 2.0 INOX, silver
Tires
Front: Vittoria Randonneur 42-622 Reflex, Rear: Vittoria Randonneur 42-622 Reflex
Brakes
Brakes
Tektro CL330 / 855AL V-Brake
Cockpit
Stem
KTM Line Riser 35°
Handlebar
KTM Line rizer 70 BS 50° 600mm
Headset
KTM Line 1 1/8"
Seat
Saddle
Selle Royal City
Seatpost
KTM Line 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Front Center | 618 mm | 630 mm | 640 mm |
| Top Tube Length | 600 mm | 612 mm | 620 mm |
| Seat Tube Angle | 72.6 ° | 72.6 ° | 72.6 ° |
| Seat Tube Length | 430 mm | 460 mm | 510 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 174 mm | 190 mm |
| Chainstay Length | 482 mm | 482 mm | 482 mm |
| Wheelbase | 1091 mm | 1103 mm | 1113 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm |
| Standover Height | 386 mm | 388 mm | 388 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
