Bike details
Overview
Key information split into simple groups.

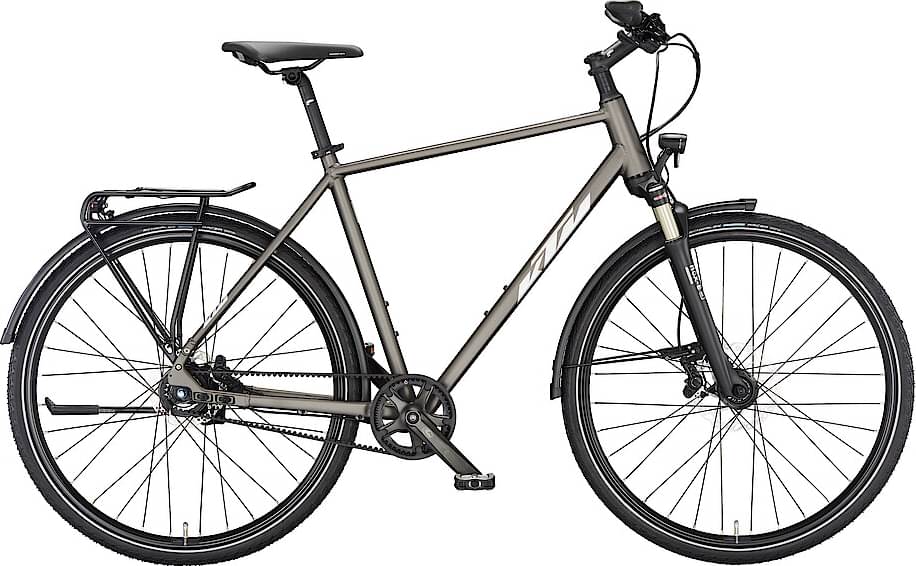

Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset Alfine -
Suspension Hardtail -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28" Alloy 6061 ONROAD BELT TB / T-9790
Suspension Fork
Suntour NCX-E Air LO 63mm 15QLC
Drivetrain
Shift Levers
Shimano Alfine 11 display
Cassette
Gates Carbon Drive CT1122XSE 22T
Crank
Gates Carbon Drive S150 46T
Chain
Gates drive-belt 118T CDN
Pedals
KTM Comp Onroad SB
Wheels
Rims
KTM Line - Shimano DH-S501 CL 32H 100 QR / KTM 28" Casual 32H; 622x19 / Richman 2.0 double butted INOX, black
Brakes
Brakes
Shimano Deore T6000 / M6000 2-Piston
Cockpit
Stem
KTM Line 17°
Handlebar
KTM Line rizer15 640mm
Headset
KTM Team Trekking 1.1/8"-1.5" angle limit
Seat
Seatpost
KTM Line Tour 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Front Center | 638 mm | 650 | 667 mm |
| Top Tube Length | 588 mm | 600 mm | 616 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 137 mm | 155 mm | 174 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1084 mm | 1096 mm | 1113 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Standover Height | 814 mm | 846 mm | 874 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
