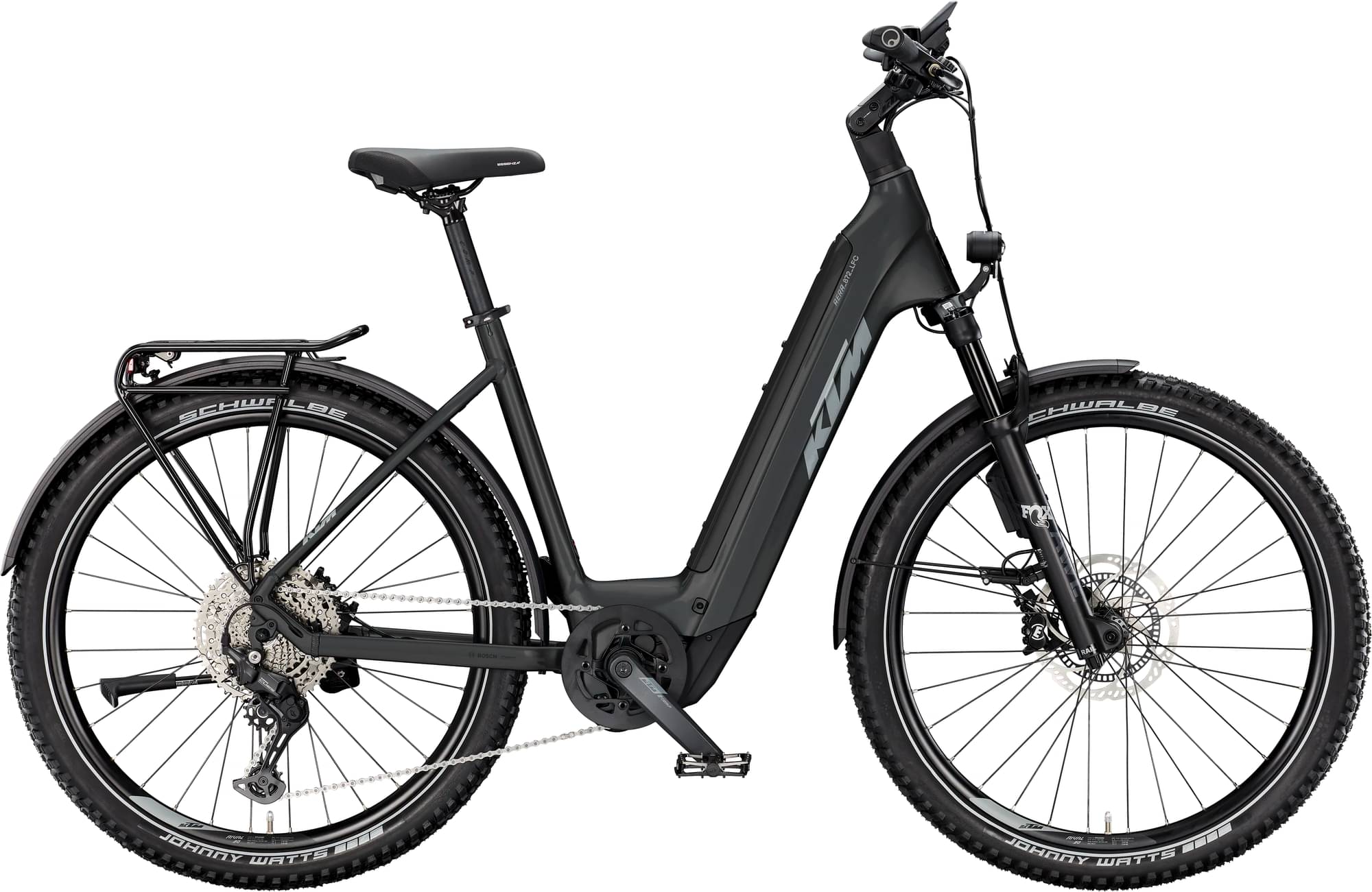

KTM MACINA AERA 872 LFC ABS 2025
2025 E-bike
Estimate price |
5,816$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Fox AWL
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTUBE 800Wh horizontal -
Drivetrain 1 × 11 -
Brakes Magura Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekking Onroad Alloy 6061 PT800 Bosch BDU38 / T-5940
Suspension Fork
FOX 34 Float 27,5" AWL e-bike 100mm 15x110
Drivetrain
Shift Levers
Shimano CUES U6000-11 display
Cassette
Shimano LG400-11 / 11-50
Crank
KTM E-COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC e11 Sport EPT e-bike
Pedals
MTB-Pedal flat VPE-527 alloy
Wheels
Rims
KTM Line - Shimano TC500B CL 32H 110-15TA, Ryde Rival30 32H 584x30C, DT Champion 2.0 black \ KTM Line - Shimano Deore M5100 CL 32H 135-5QR, Ryde Rival30 32H 584x30C, DT Alpine II 2.34 black
Tires
Front: Schwalbe Johnny Watts Perf. Folding DD 65-584 Reflex, Rear: Schwalbe Johnny Watts Perf. Folding DD 65-584 Reflex
Brakes
Brakes
Magura MTC ABS 4-Piston
Cockpit
Stem
KTM adjust. 0-60° ICR
Handlebar
KTM COMP rizer15 680mm
Grips
Ergon GP1 Evo
Headset
Acros headsetcover OD62 Phyton
Seat
Saddle
Selle Royal Essenza
Seatpost
KTM COMP 30.9/300
Motor & Battery
Motor
Bosch PERFORMANCE CX BDU3840 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 800Wh horizontal
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.744 mm | 1.751 mm | 1.762 mm | 1.755 mm | 1.684 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 659 mm | 653 mm | 654 mm | 669 mm | 689 mm |
| Rake | 41 mm | 42 mm | 44 mm | 43 mm | 44 mm |
| Trail | 108 mm | 100 mm | 91 mm | 92 mm | 91 mm |
| Stack | 633 mm | 639 mm | 652 mm | 667 mm | 672 mm |
| Reach | 363 mm | 365 mm | 370 mm | 380 mm | 399 mm |
| Top Tube Length | 585 mm | 590 mm | 600 mm | 615 mm | 635 mm |
| Seat Tube Angle | 70.3 ° | 70.3 ° | 70.3 ° | 70.3 ° | 70.3 ° |
| Seat Tube Length | 430 mm | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 66.8 ° | 67.8 ° | 68.7 ° | 68.7 ° | 68.8 ° |
| Head Tube Length | 165 mm | 165 mm | 174 mm | 190 mm | 195 mm |
| Chainstay Length | 487 mm | 487 mm | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1141 mm | 1135 mm | 1136 mm | 1151 mm | 1171 mm |
| Bottom Bracket Drop | 51 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Standover Height | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
