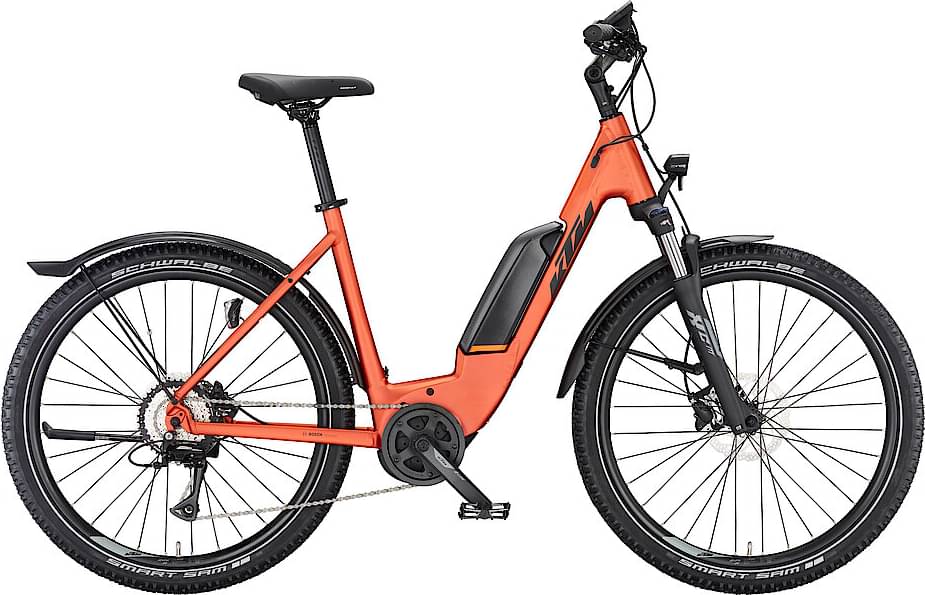

KTM MACINA AERA P571 STREET 2025
2025 E-bike
Estimate price |
3,784$
Weight | 26.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 80mm -
Fork Suntour XCM
-
Groupset Acera, Altus -
Suspension Hardtail -
Motor Bosch 600W 65Nm mid-drive -
Battery Bosch PowerPACK 500Wh -
Drivetrain 1 × 8 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Offroad 27.5" US Alloy6061; Si-PP500Wh Bosch Gen.3 / T-0280
Suspension Fork
Suntour XCM 32 ATB coil 27.5" NLO 80mm taper
Drivetrain
Rear Derailleur
Shimano Acera M3020-8 SGS
Shift Levers
Shimano Altus M315-8 display
Cassette
Shimano HG400-8 / 11-40
Crank
KTM E-LINE BNI 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano HG40-8
Pedals
MTB-Pedal flat VPE-527 alloy
Wheels
Rims
KTM Line - Shimano Acera M3050 CL 32H 100-5QR / Ryde Rival30 32H 584x30C / DT Champion 2.0 black
Tires
Front: Schwalbe Smart Sam Perf. 57-584 RT, Rear: Schwalbe Smart Sam Perf. 57-584 RT
Brakes
Brakes
Shimano MT200 / MT200 2-Piston
Cockpit
Stem
KTM Line UP3 adjust. 0-90°
Handlebar
KTM COMP II rizer15 680mm
Headset
Ritchey Zero Logic Comp 1.1/8"-1.5"
Seat
Saddle
Selle Royal Essenza+
Seatpost
KTM COMP II 30.9/300
Motor & Battery
Motor
Bosch PERFORMANCE Gen.3 - 25km/h / 65Nm
Battery
Bosch PowerPACK 500Wh
Charger
Bosch COMPACT Charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.686 mm | 1.665 mm | 1.673 mm | 1.658 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm |
| Front Center | 638 mm | 640 mm | 650 | 669 mm |
| Rake | 45 mm | 46 mm | 46 mm | 46 mm |
| Trail | 85 mm | 80 mm | 80 mm | 80 mm |
| Stack | 629 mm | 631 mm | 644 mm | 660 mm |
| Reach | 373 mm | 379 mm | 385 mm | 398 mm |
| Top Tube Length | 580 mm | 590 mm | 605 mm | 626 mm |
| Seat Tube Angle | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Seat Tube Length | 430 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 160 mm | 174 mm | 190 mm |
| Chainstay Length | 492 mm | 492 mm | 492 mm | 492 mm |
| Wheelbase | 1125 mm | 1127 mm | 1137 mm | 1156 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
