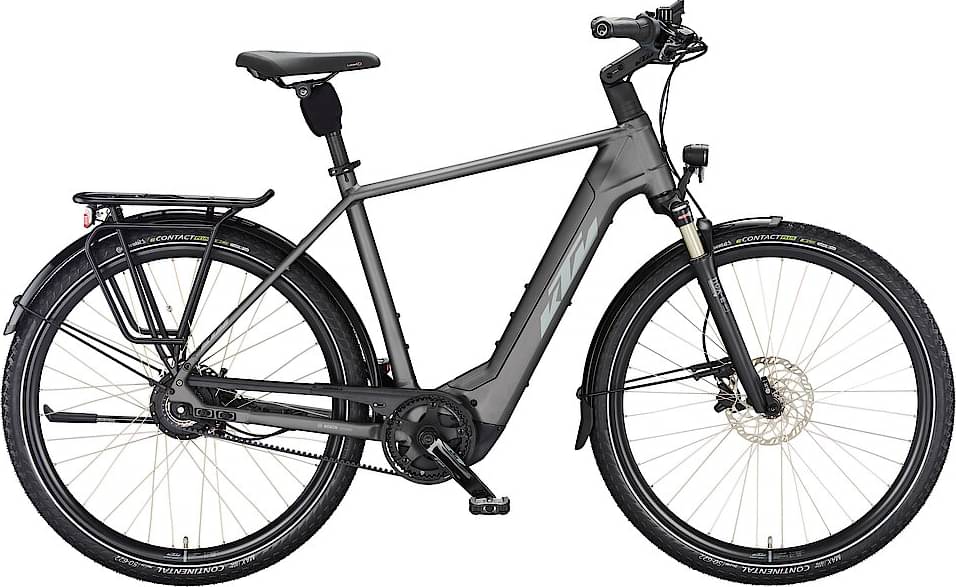

KTM MACINA CITY 710 BELT 2025
2025 E-bike
Estimate price |
6,397$
Weight | 28.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NCX
-
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTUBE 750Wh SMART SYSTEM hor. -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Magura Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina City Alloy6061 belt; PT750Wh Bosch Gen.4 / T-2970
Suspension Fork
Suntour NCX-E Air LO 63mm 15QLC
Drivetrain
Shift Levers
Enviolo controller Twist Display Pro
Cassette
Gates rear-sprocket 24T
Crank
KTM E-TEAM ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Gates drive-belt 125T CDX
Chain Guide
SKS Chainblade
Pedals
Trekking-Pedal VP-616 anti-slip
Wheels
Rims
KTM Line - Shimano Deore M6010 CL 36H 100-15TA / Ambrosio Sport 25 700C 36H 622x25C / DT Champion 2.0 black
Tires
Front: Conti e-Contact Plus 50-622 Reflex, Rear: Conti e-Contact Plus 50-622 Reflex
Brakes
Brakes
Magura CT Disc
Cockpit
Stem
KTM adjust. 0-60° ICR
Handlebar
KTM Line Noirette Plus 660mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Lookin+
Seatpost
Suntour SP17-NCX suspension 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm
Battery
Bosch PowerTUBE 750Wh SMART SYSTEM hor.
Charger
Bosch STANDARD Charger 4A SMART SYSTEM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.481 mm | 1.516 mm | 1.539 mm | 1.545 mm |
| Front Center | 632 mm | 645 mm | 656 mm | 672 mm |
| Rake | 30 mm | 42 mm | 42 mm | 42 mm |
| Trail | 98 mm | 79 mm | 79 mm | 79 mm |
| Stack | 591 mm | 611 mm | 628 mm | 646 mm |
| Reach | 399 mm | 403 mm | 408 mm | 418 mm |
| Top Tube Length | 580 mm | 590 mm | 600 mm | 615 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 69.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 120 mm | 137 mm | 155 mm | 174 mm |
| Chainstay Length | 487 mm | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1112 mm | 1125 mm | 1136 mm | 1152 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 796 mm | 819 mm | 851 mm | 877 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
