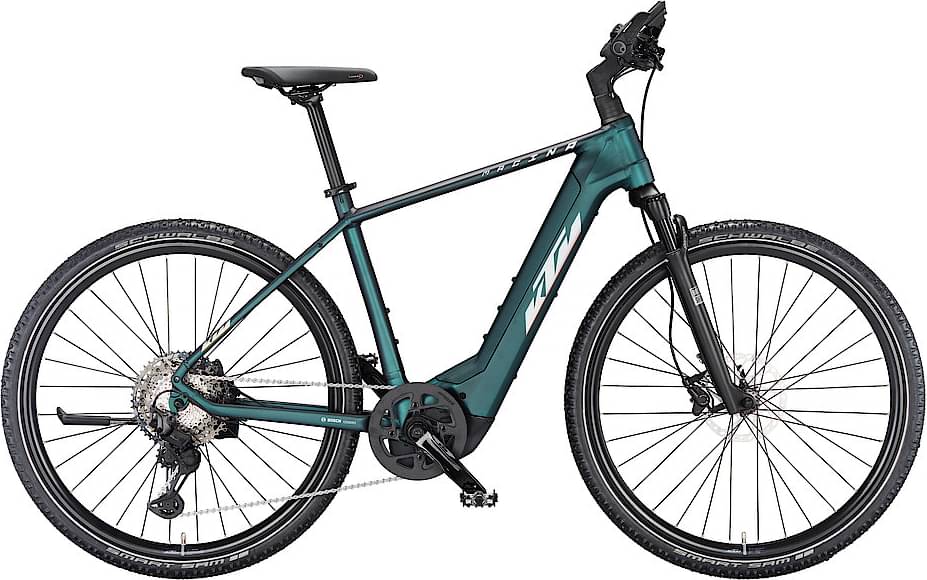

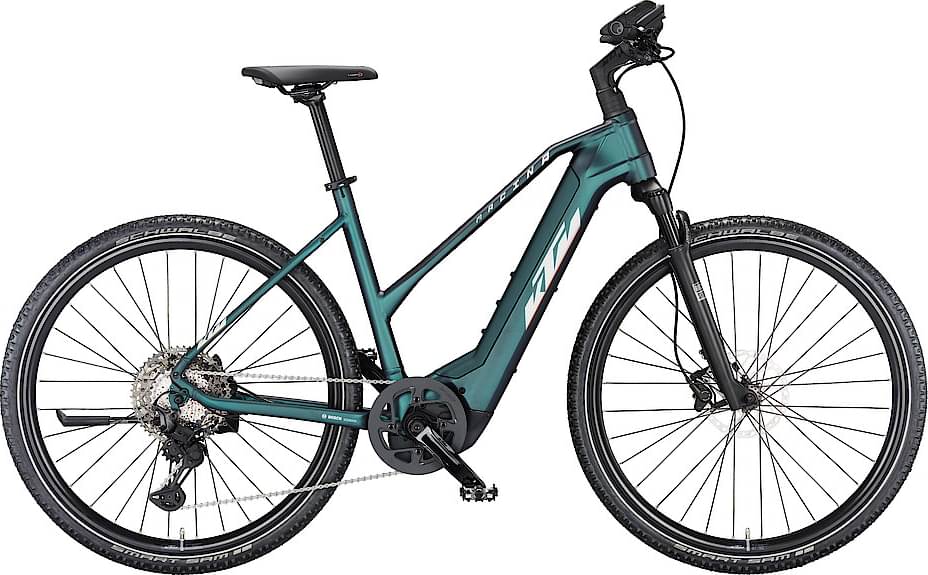

KTM MACINA CROSS 710 2025
2025 E-bike
Estimate price |
5,234$
Weight | 23.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 65mm -
Fork RockShox Paragon Gold RL
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTUBE 750Wh SMART SYSTEM hor. -
Drivetrain 1 × 11 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekking Offroad Alloy6061; PT750Wh Bosch Gen.4 / T-2930
Suspension Fork
RockShox Paragon Gold RL Air 65mm taper
Drivetrain
Rear Derailleur
Shimano Deore XT M8130-11 LG shadow+
Shift Levers
Shimano Deore XT M8130-11 LG
Cassette
Shimano LG400-11 / 11-50
Crank
KTM E-TEAM ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC e11 Sport EPT e-bike
Pedals
MTB-Pedal VP-195E alloy
Wheels
Rims
KTM Line - Shimano Deore M6000 CL 32H 100-5QR / Ryde Rival Sport 32H 622x25C / DT Champion 2.0 black
Tires
Front: Schwalbe Smart Sam Perf. 47-622, Rear: Schwalbe Smart Sam Perf. 47-622
Brakes
Brakes
Shimano MT402 (3-F) / MT420 4-Piston
Cockpit
Stem
KTM +20° ICR
Handlebar
KTM Team low rizer 640mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Lookin Athletic
Seatpost
KTM Team 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm
Battery
Bosch PowerTUBE 750Wh SMART SYSTEM hor.
Charger
Bosch STANDARD Charger 4A SMART SYSTEM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.516 mm | 1.539 mm | 1.545 mm |
| Front Center | 645 mm | 656 mm | 671 mm |
| Rake | 42 mm | 42 mm | 41 mm |
| Trail | 79 mm | 79 mm | 80 mm |
| Stack | 611 mm | 628 mm | 646 mm |
| Reach | 403 mm | 408 mm | 418 mm |
| Top Tube Length | 590 mm | 600 mm | 615 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 137 mm | 155 mm | 174 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1112 mm | 1123 mm | 1138 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm |
| Standover Height | 816 mm | 848 mm | 875 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
