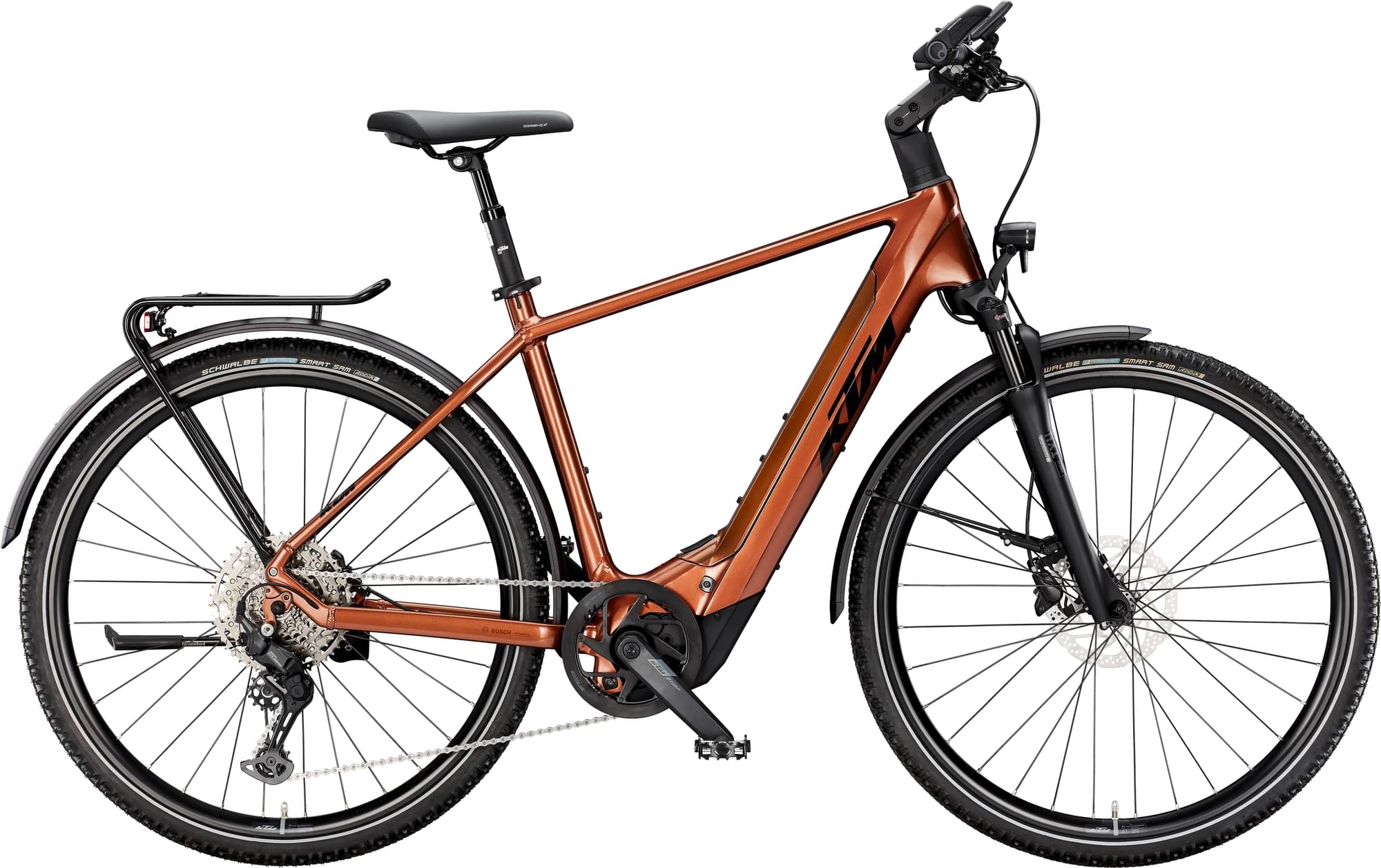

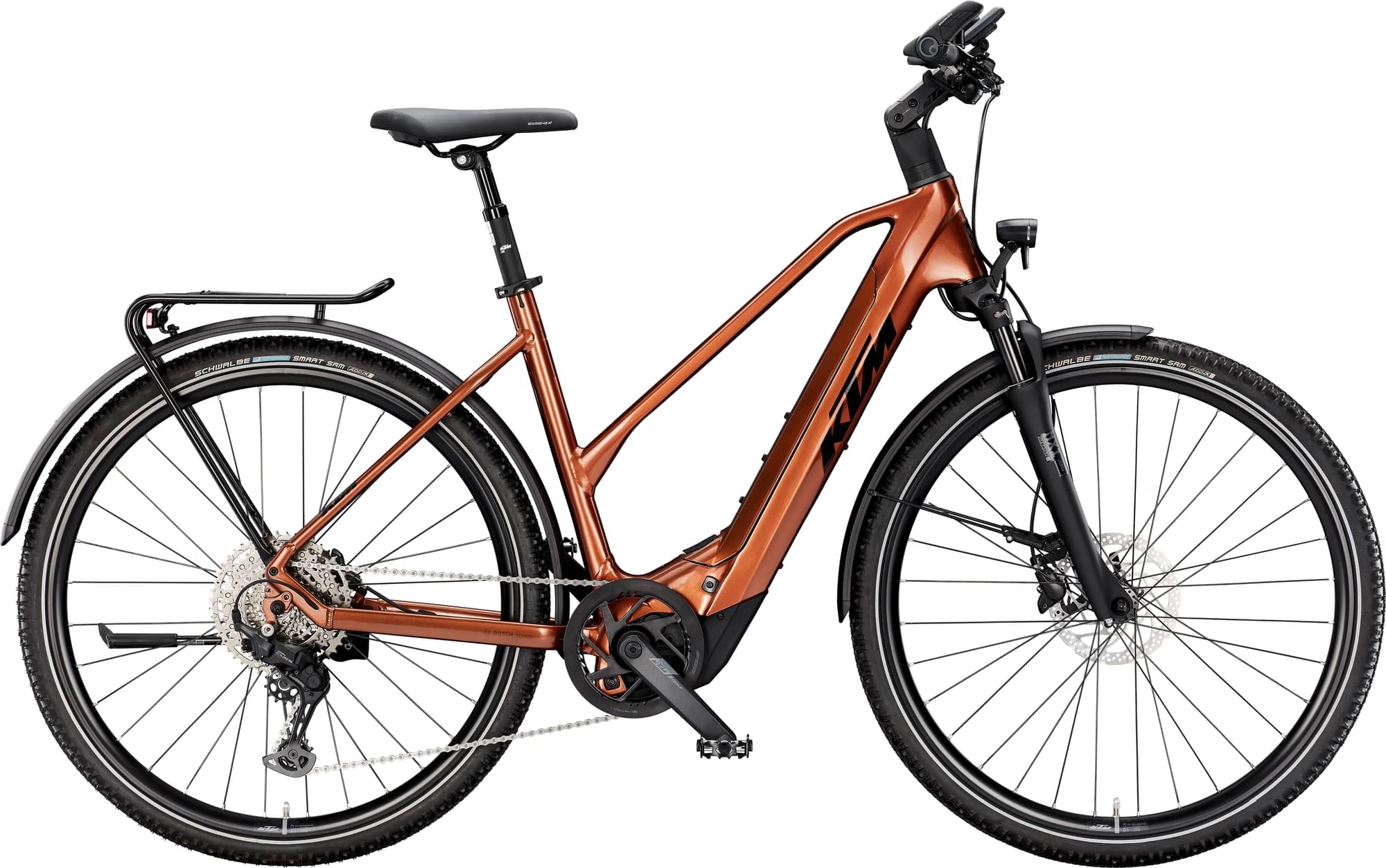

KTM MACINA CROSS CX 820 LFC 2025
2025 E-bike
Estimate price |
4,652$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NX 1
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTUBE 800Wh horizontal -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekking Onroad Alloy 6061 PT800 Bosch BDU38 / T-5940
Suspension Fork
Suntour NX1 coil LO 63mm
Drivetrain
Shift Levers
Shimano CUES U6000-10 display
Cassette
Shimano LG400-10 / 11-48
Crank
KTM E-COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano LG500
Pedals
MTB-Pedal VP-195E alloy
Wheels
Rims
KTM Line - Shimano Deore M6000 CL 32H 100-5QR, Ryde Rival Sport 32H 622x25C, DT Champion 2.0 black \ KTM Line - Shimano Deore M6000 CL 32H 135-5QR, Ryde Rival Sport 32H 622x25C, DT Alpine II 2.34 black
Tires
Front: Schwalbe Smart Sam Perf 44-622 RT Addix Reflex, Rear: Schwalbe Smart Sam Perf 44-622 RT Addix Reflex
Brakes
Brakes
Shimano MT200 / MT200 2-Piston
Cockpit
Stem
KTM Line adjust. 0-60° ICR
Handlebar
KTM COMP low rizer 640mm
Grips
Ergon GP30
Headset
Acros headsetcover OD62 Phyton
Seat
Saddle
Selle Royal Essenza Athletic
Seatpost
KTM Line Elegance suspension 30.9/300
Motor & Battery
Motor
Bosch PERFORMANCE CX BDU3840 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 800Wh horizontal
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.481 mm | 1.516 mm | 1.539 mm | 1.545 mm |
| Front Center | 645 mm | 645 mm | 656 mm | 671 mm |
| Rake | 47 mm | 47 mm | 47 mm | 46 mm |
| Trail | 77 mm | 70 mm | 70 mm | 72 mm |
| Stack | 591 mm | 611 mm | 628 mm | 646 mm |
| Reach | 399 mm | 403 mm | 408 mm | 418 mm |
| Top Tube Length | 580 mm | 590 mm | 600 mm | 615 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 120 mm | 137 mm | 155 mm | 174 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1112 mm | 1112 mm | 1123 mm | 1138 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 791 mm | 825 mm | 857 mm | 885 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
