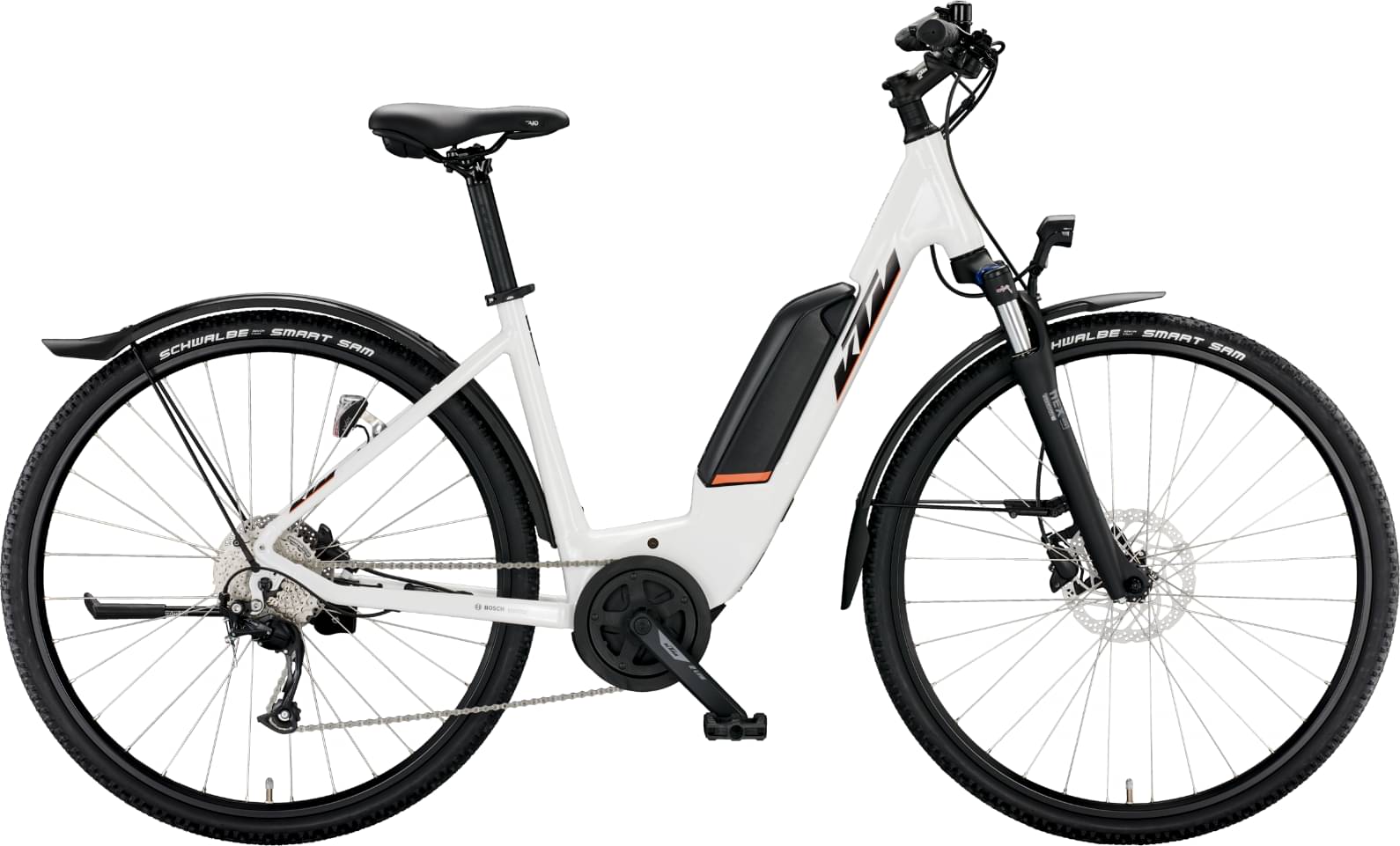

KTM MACINA CROSS STREET P510 2025
2025 E-bike
Estimate price |
3,373$
Weight | 22.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 65Nm mid-drive -
Battery Bosch PowerPACK 500Wh -
Drivetrain 1 × 9 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekk. Offroad US Alloy 6061; Si-PP500Wh Bosch Gen.3 / T-2730
Suspension Fork
Suntour NEX-E25 coil NLO 63mm
Drivetrain
Rear Derailleur
menic SHIMANO ARDU4000GS 9-Speed, Shadow Design, CUES, Direct Attachment, Top Normal, 46T-Max/11T-Min
Shift Levers
razeni SL R SHIMANO ASLU40009RA Right, 9-Speed, Clamp Band, CUES, w/Optical gear display
Cassette
9-kazeta SHIMANO ACSLG3009146 11-46T CUES
Crank
KTM LINE BNI 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano LG500
Pedals
MTB-Pedal VPE-891 steel
Wheels
Rims
KTM Line - Shimano MT200 CL 32H 100-5QR / Remerx Top Disc 32H 622x19C / DT Champion 2.0 silver
Tires
Front: Schwalbe Smart Sam K-Guard 42-622, Rear: Schwalbe Smart Sam K-Guard 42-622
Brakes
Brakes
Shimano MT200 / MT200 2-Piston
Cockpit
Stem
KTM Line 17°
Handlebar
KTM Line rizer15 640mm
Headset
Ritchey OE Zero Logic 1.1/8"
Seat
Saddle
Selle Royal Rio+
Seatpost
KTM Comp 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE Gen.3 - 25km/h / 65Nm
Battery
Bosch PowerPACK 500Wh
Charger
Bosch COMPACT Charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.661 mm | 1.64 mm | 1.649 mm | 1.633 mm |
| Front Center | 626 mm | 628 mm | 638 mm | 655 mm |
| Rake | 35 mm | 36 mm | 35 mm | 35 mm |
| Trail | 93 mm | 89 mm | 90 mm | 90 mm |
| Stack | 623 mm | 625 mm | 638 mm | 653 mm |
| Reach | 375 mm | 381 mm | 387 mm | 400 mm |
| Top Tube Length | 590 mm | 597 mm | 605 mm | 620 mm |
| Seat Tube Angle | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Seat Tube Length | 430 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 160 mm | 174 mm | 190 mm |
| Chainstay Length | 492 mm | 492 mm | 492 mm | 492 mm |
| Wheelbase | 1111 mm | 1113 mm | 1123 mm | 1141 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
