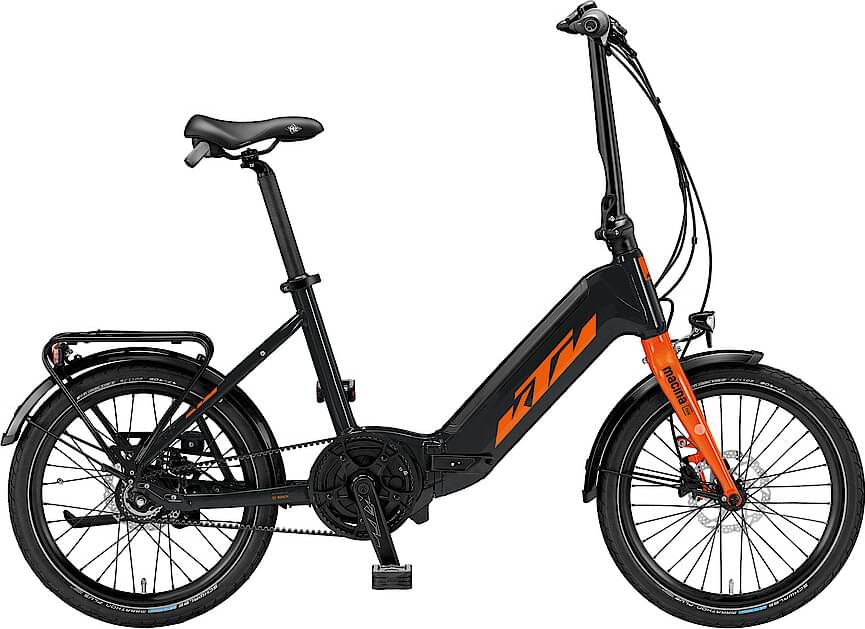

KTM MACINA FOLD 20″ 2025
2025 E-bike
Estimate price |
4,885$
Weight | 23.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Nexus -
Suspension Rigid -
Motor Bosch 600W 75Nm mid-drive -
Battery Bosch PowerTUBE 500Wh SMART SYSTEM vert. -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Fold 20" Alloy 6061 PT500Wh Bosch Gen.3 / T-3300
Suspension Fork
20" Alloy fold
Drivetrain
Shift Levers
Shimano Nexus 8 Revoshifter
Cassette
Gates rear-sprocket 22T
Crank
KTM E-COMP BNI 160mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Gates drive-belt 115T CDX
Pedals
pedal VP-F55 folding
Wheels
Rims
KTM Line - Shimano Alivio M4050 CL 32H 100-5QR / Ambrosio Pulse 32H 406x19C / DT Champion 2.0 black
Tires
Front: Schwalbe Marathon Plus Perf. SmartGuard 47-406, Rear: Schwalbe Marathon Plus Perf. SmartG. 47-406
Brakes
Brakes
Shimano MT200 / MT200 2-Piston
Cockpit
Stem
KTM Banzei 12° folding
Handlebar
KTM Banzei 25.4 560mm
Headset
KTM Banzei 1.1/8"
Seat
Saddle
Selle Royal Hertz
Seatpost
KTM Banzai 34/400
Motor & Battery
Motor
Bosch PERFORMANCE Gen.3 SMART SYSTEM - 25km/h / 75Nm
Battery
Bosch PowerTUBE 500Wh SMART SYSTEM vert.
Charger
Bosch STANDARD Charger 4A SMART SYSTEM
Fit data
Geometry
