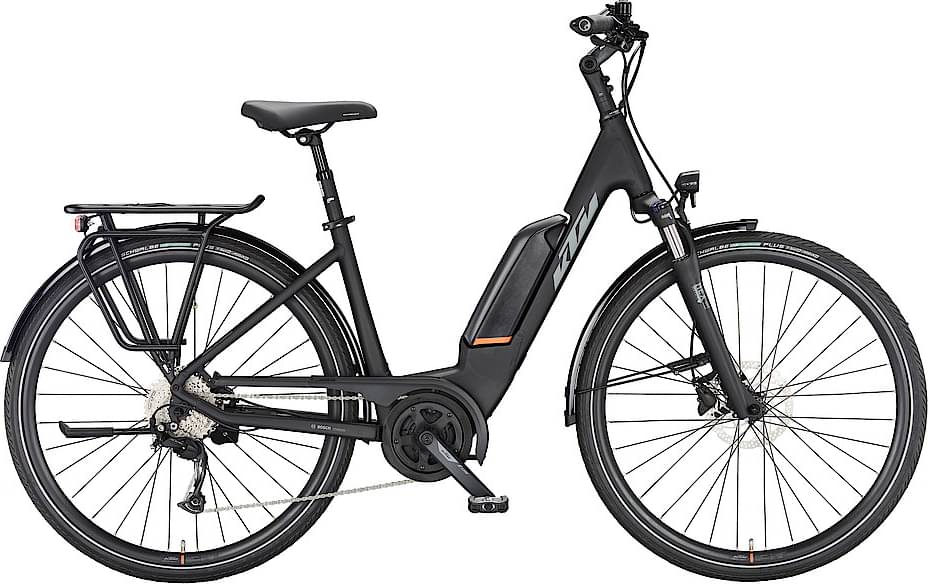

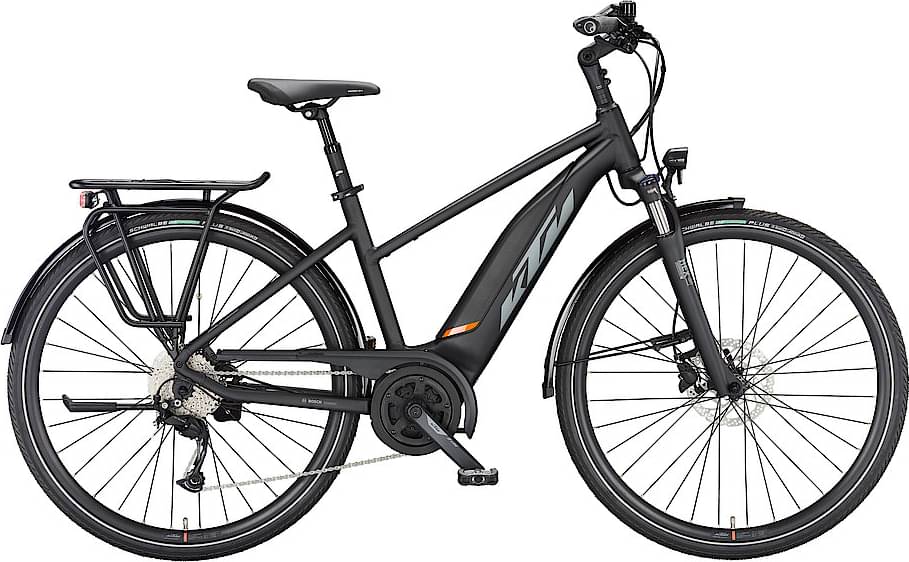

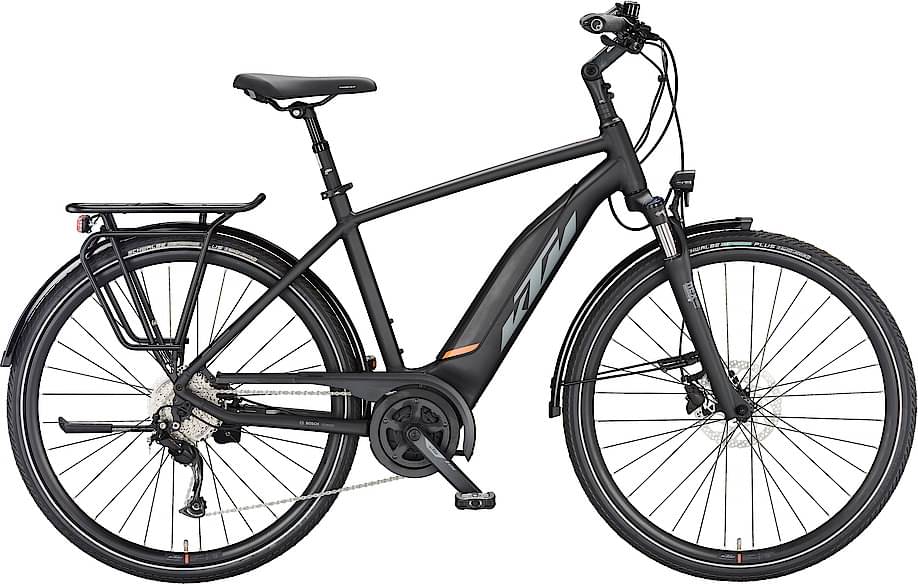

KTM MACINA FUN A510 2025
2025 E-bike
Estimate price |
3,605$
Weight | 24.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 600W 50Nm mid-drive -
Battery Bosch PowerPACK 500Wh -
Drivetrain 1 × 9 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekking Onroad Alloy6061; UC-PP500Wh Bosch Gen.3 / T-9700
Suspension Fork
Suntour NEX-E25 coil NLO 63mm
Drivetrain
Rear Derailleur
Shimano Alivio M3100-9 SGS shadow
Shift Levers
Shimano Alivio M3100-9 display
Cassette
Shimano HG201-9 / 11-36
Crank
KTM E-LINE BNI 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano E6070-9 e-bike
Chain Guide
SKS Chainblade 42T
Pedals
Trekking-Pedal VP-616 anti-slip
Wheels
Rims
KTM Line - Shimano MT200 CL 32H 100-5QR / Ambrosio Track Disc 32H 622x20C / DT Champion 2.0 black
Tires
Front: Schwalbe Energizer Plus Perf. GreenGuard 40-622, Rear: Schwalbe Energizer Plus Perf. GreenGuard 40-622
Brakes
Brakes
Shimano MT200 / MT200 2-Piston
Cockpit
Stem
KTM Line UP3 adjust. 0-90°
Handlebar
KTM Line rizer20 640mm
Headset
Ritchey OE Zero Logic 1.1/8"
Seat
Saddle
Selle Royal Essenza+
Seatpost
KTM Line Elegance suspension 30.9/300
Motor & Battery
Motor
Bosch ACTIVE PLUS Gen.3 - 25km/h / 50Nm
Battery
Bosch PowerPACK 500Wh
Charger
Bosch COMPACT Charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.475 mm | 1.484 mm | 1.504 mm | 1.507 mm |
| Front Center | 624 mm | 637 mm | 649 mm | 666 mm |
| Rake | 41 mm | 39 mm | 39 mm | 39 mm |
| Trail | 77 mm | 79 mm | 79 mm | 79 mm |
| Stack | 584 mm | 601 mm | 618 mm | 636 mm |
| Reach | 396 mm | 405 mm | 411 mm | 422 mm |
| Top Tube Length | 575 mm | 588 mm | 599 mm | 615 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 120 mm | 137 mm | 155 mm | 174 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1081 mm | 1094 mm | 1106 mm | 1123 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 787 mm | 818 mm | 851 mm | 880 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
