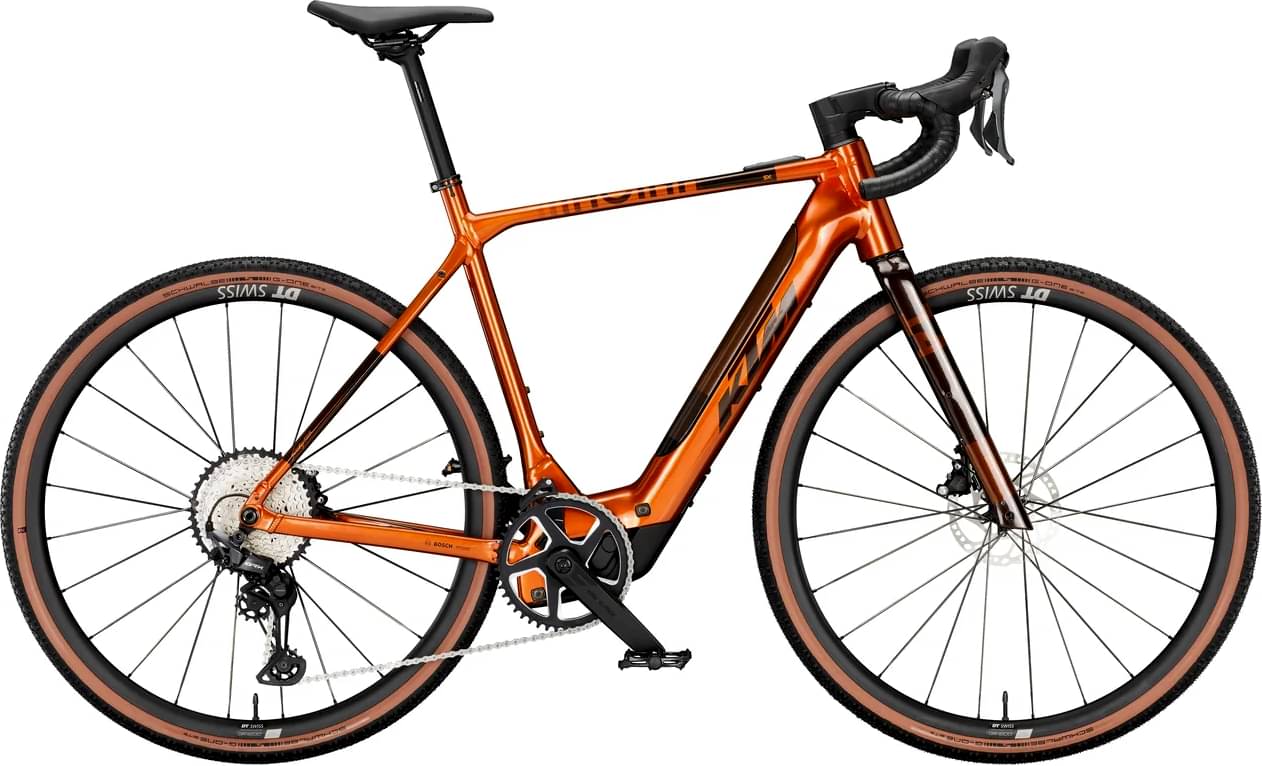

KTM MACINA GRAVELATOR SX 10 2025
2025 E-bike
Estimate price |
5,001$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset GRX 600 -
Suspension Rigid -
Motor Bosch 600W 55Nm mid-drive -
Battery Bosch PowerTUBE 400Wh SMART SYSTEM compact -
Drivetrain 1 × 12 -
Brakes Shimano GRX 400 Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Gravelator AL6061 CPT 400Wh Bosch BDU31 / R-4350
Suspension Fork
X-Strada Gravel Perf. Carbon w/mountings F14
Drivetrain
Shift Levers
Shimano GRX RX610
Cassette
Shimano SLX M7100-12 / 10-45T
Crank
KTM E-RACE ISIS 170mm Q2
Bottom Bracket
Bosch, press-fit
Chain
Shimano M6100-12
Pedals
Wellgo C324DU
Wheels
Rims
DT Swiss GR 1600 SPLINE CL 100/12TA 622x24TC//DT Swiss GR 1600 SPLINE CL 142/12TA 622x24TC
Tires
Front: Schwalbe G-One Bite Perf. RaceGuard TLE 40-622, Rear: Schwalbe G-One Bite Perf. RaceGuard TLE 40-622
Brakes
Brakes
Shimano GRX RX410 hydraulic
Cockpit
Stem
KTM Team II Road -7° ICR
Handlebar
KTM Team II Gravel 20°
Grips
KTM tape
Headset
Acros ICR 1.5" angle limit
Seat
Saddle
Selle Royal SRX
Seatpost
KTM Team II 27.2/350
Motor & Battery
Motor
Bosch PERFORMANCE SX SMART SYSTEM - 25km/h / 55Nm
Battery
Bosch PowerTUBE 400Wh SMART SYSTEM compact
Charger
Bosch Compact Charger 2A SMART SYSTEM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.523 mm | 1.497 mm | 1.49 mm | 1.471 mm | 1.449 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 277 mm | 277 mm | 277 mm |
| Front Center | 607 mm | 607 mm | 613 mm | 628 mm | 648 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 88 mm | 81 mm | 75 mm | 75 mm | 75 mm |
| Stack | 561.7 mm | 565.7 mm | 578.9 mm | 588.4 mm | 602.6 mm |
| Reach | 368.9 mm | 377.8 mm | 388.5 mm | 400.1 mm | 415.8 mm |
| Top Tube Length | 530 mm | 540 mm | 560 mm | 580 mm | 600 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 490 mm | 520 mm | 550 mm | 570 mm | 590 mm |
| Head Tube Angle | 69 ° | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 150 mm | 150 mm | 160 mm | 170 mm | 185 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1032 mm | 1032 mm | 1037 mm | 1052 mm | 1072 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 765 mm | 782 mm | 803 mm | 817 mm | 834 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
