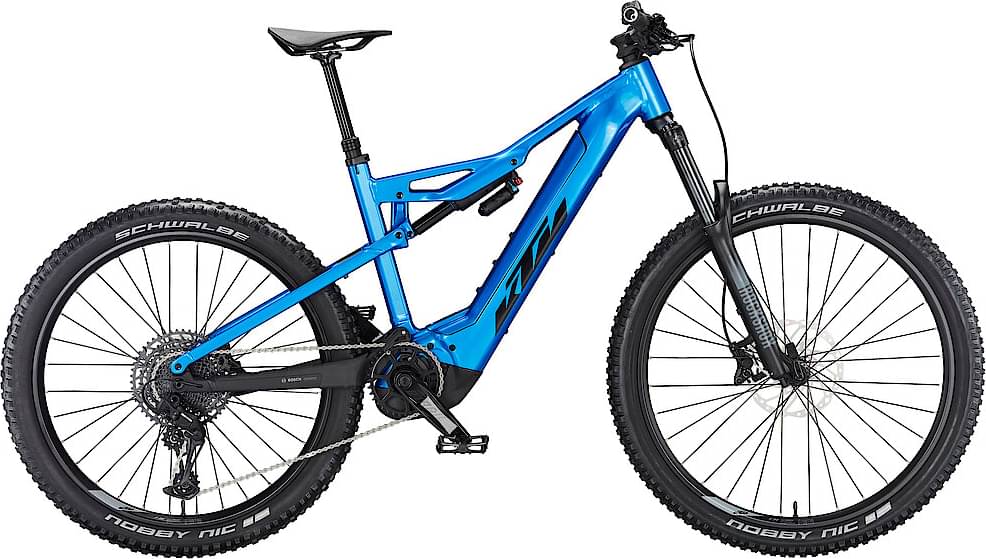

KTM MACINA KAPOHO 7973 2025
2025 E-bike
Estimate price |
6,165$
Weight | 27.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTUBE 750Wh SMART SYSTEM hor. -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Kapoho Dimmix Alloy6061 SLL-LTE 160mm UDH; PT750 Bosch Gen.4 / M-2266
Suspension Fork
RockShox 35 Silver TK 29" 160mm 15x110 taper
Rear Shock
Suntour Tri-Air 3CR 3-Pos 250x70
Drivetrain
Rear Derailleur
SRAM SX Eagle 12speed
Shift Levers
SRAM SX Eagle singleClick
Cassette
SRAM SX Eagle PG-1210 / 11-50
Crank
KTM E-TRAIL ISIS 160mm Q16
Bottom Bracket
Bosch, press-fit
Chain
SRAM NX Eagle 12s
Pedals
MTB-Pedal flat VPE-527 alloy
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 622x30TC / DT Champion 2.0 black
Tires
Front: Schwalbe Nobby Nic Perf. Folding 65-622, Rear: Schwalbe Nobby Nic Perf. Folding 70-584
Brakes
Brakes
Shimano M4100 / MT420 4-Piston
Cockpit
Stem
KTM TEAM II Trail35
Handlebar
KTM COMP II Trail35 rizer15 780mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Italia Model-X Flow
Seatpost
KTM COMP II dropper internal
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm
Battery
Bosch PowerTUBE 750Wh SMART SYSTEM hor.
Charger
Bosch STANDARD Charger 4A SMART SYSTEM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.333 mm | 1.31 mm |
| Front Center | 764 mm | 786 mm | 809 mm |
| Rake | 49 mm | 48 mm | 46 mm |
| Trail | 113 mm | 114 mm | 116 mm |
| Stack | 607 mm | 616 mm | 630 mm |
| Reach | 443 mm | 462 mm | 481 mm |
| Top Tube Length | 590 mm | 610 mm | 630 mm |
| Seat Tube Angle | 76.4 ° | 76.5 ° | 76.6 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1206 mm | 1228 mm | 1251 mm |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm |
| Standover Height | 803 mm | 805 mm | 807 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
