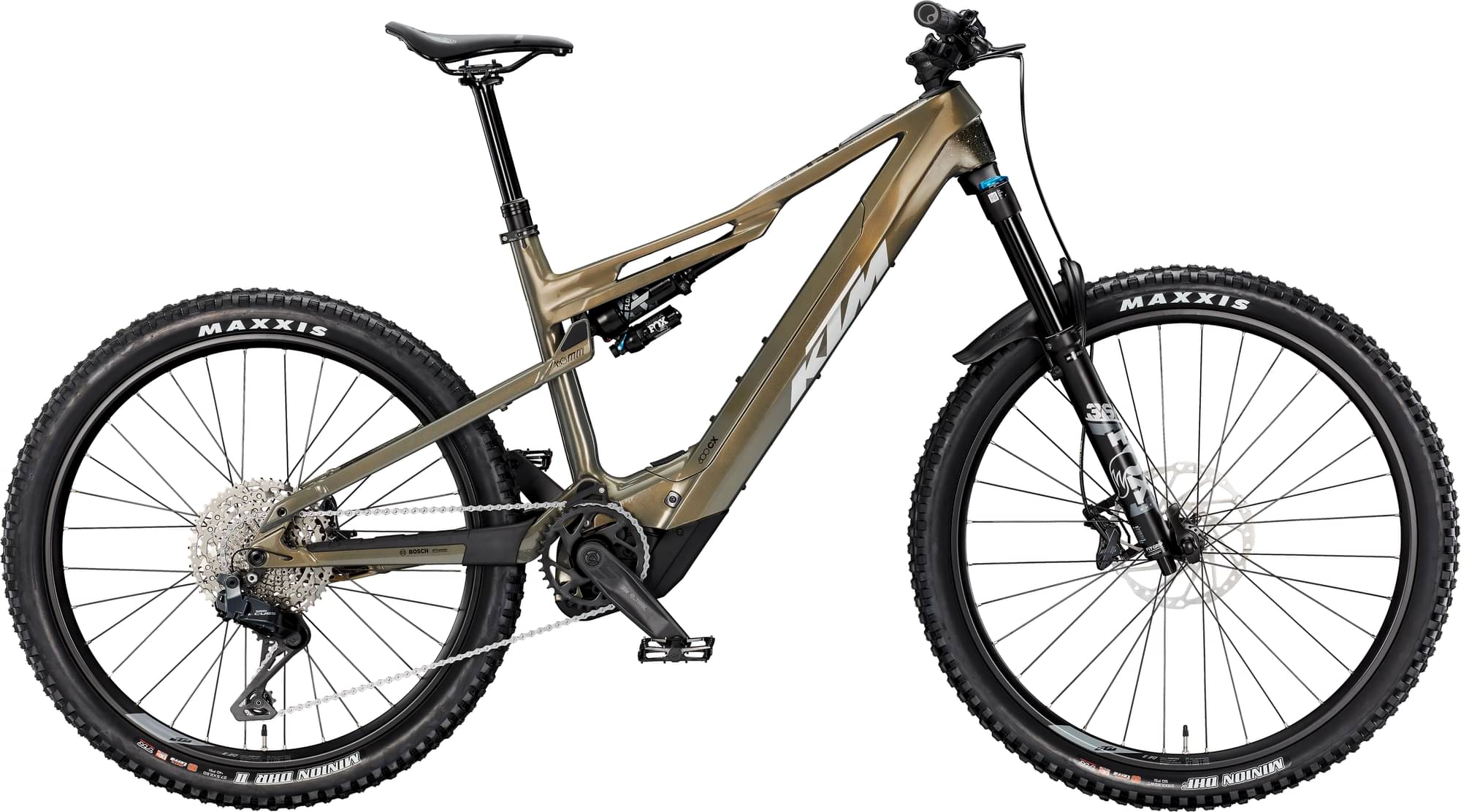

KTM MACINA KAPOHO 8971 2025
2025 E-bike
Estimate price |
6,979$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Fork Fox Rhythm Float 36
-
Groupset Shimano -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTUBE 800Wh horizontal -
Drivetrain 1 × 11 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Kapoho Dimmix Al 6061 SLL 160 UDH Bosch BDU38/M5260
Suspension Fork
FOX 36 Float 29" Rhythm e-bike 160mm 15x110
Rear Shock
FOX Float X Performance 2Pos 250x70
Drivetrain
Shift Levers
Shimano Di2 EN605 wireless
Cassette
Shimano LG400-11 / 11-50
Crank
KTM E-TRAIL2 ISIS 160mm Q12
Bottom Bracket
Bosch, press-fit
Chain
KMC e11 Sport EPT e-bike
Pedals
MTB-Pedal flat VPE-527 alloy
Wheels
Rims
KTM Line - Shimano TC500B CL 32H 110-15TA, Ambrosio E30 Trail 32H 622x30TC, DT Champion 2.0 black \ KTM Line - Shimano TC600B CL 32H 148-12TA, Ambrosio E30 Trail 32H 584x30TC, DT Alpine II 2.34 black
Tires
Front: Maxxis Minion DHF 3C-MaxxTerra / NEXO+/TR 63-622, Rear: Maxxis Minion DHR II 3C-MAxxTerra / NEXO+/ TR 65-584
Brakes
Brakes
Shimano Deore M6100 / M6120 4-Piston
Cockpit
Stem
KTM TEAM II Trail35
Handlebar
KTM TEAM II Trail35 rizer25 800mm
Grips
Ergon GE10
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle San Marco Ground Short Open Fit Narrow
Seatpost
KTM COMP II dropper internal 34.9 T:125
Motor & Battery
Motor
Bosch PERFORMANCE CX BDU3840 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 800Wh horizontal
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.349 mm | 1.316 mm | 1.286 mm |
| Front Center | 780 mm | 802 mm | 830 mm |
| Rake | 41 mm | 41 mm | 40 mm |
| Trail | 129 mm | 129 mm | 130 mm |
| Stack | 611 mm | 620 mm | 634 mm |
| Reach | 453 mm | 471 mm | 493 mm |
| Top Tube Length | 600 mm | 620 mm | 645 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1228 mm | 1250 mm | 1278 mm |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm |
| Standover Height | 830 mm | 830 mm | 841 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
