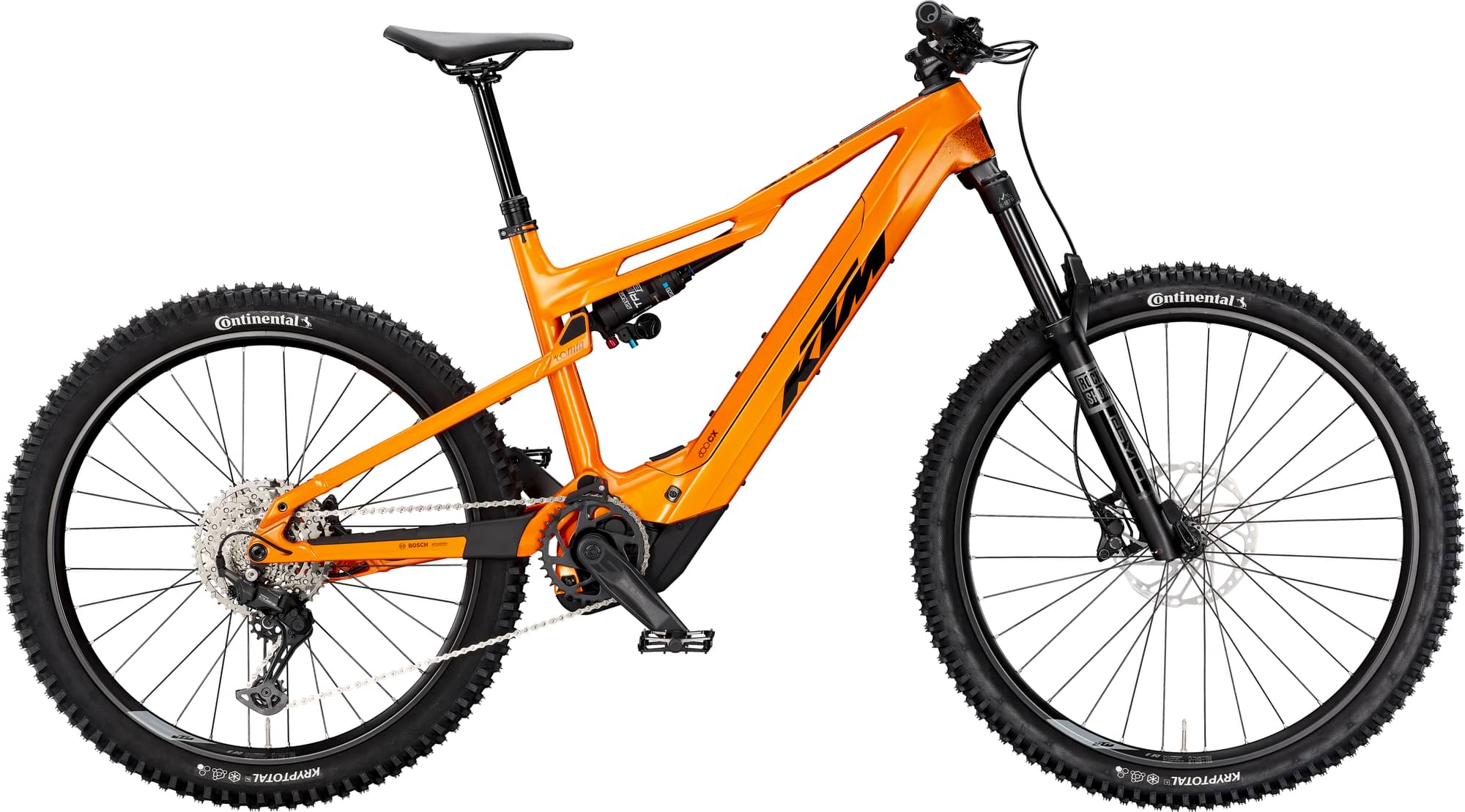

KTM MACINA KAPOHO 8973 2025
2025 E-bike
Estimate price |
5,734$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Fork RockShox Psylo
-
Groupset CUES -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTUBE 800Wh horizontal -
Drivetrain 1 × 10 -
Brakes Shimano Deore Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Kapoho Dimmix Al 6061 SLL 160 UDH Bosch BDU38/M5260
Suspension Fork
RockShox Psylo Silver RC 29" 160mm 15x110
Rear Shock
Suntour TRIAIR2 3CR 250x70
Drivetrain
Shift Levers
Shimano CUES U6000-10
Cassette
Shimano LG400-10 / 11-48
Crank
KTM E-TRAIL2 ISIS 160mm Q12
Bottom Bracket
Bosch, press-fit
Chain
KMC e500 LG e-bike
Pedals
MTB-Pedal flat VPE-527 alloy
Wheels
Rims
KTM Line - Shimano TC500B CL 32H 110-15TA, Ambrosio E30 Trail 32H 622x30TC, DT Champion 2.0 black \ KTM Line - Shimano TC600B CL 32H 148-12TA, Ambrosio E30 Trail 32H 584x30TC, DT Alpine II 2.34 black
Tires
Front: Continental Kryptotal F TL 60-622, Rear: Continental Kryptotal R TL 65-584
Brakes
Brakes
Shimano M4100 / MT420 4-Piston
Cockpit
Stem
KTM TEAM II Trail35
Handlebar
KTM COMP Trail35 rizer15 780mm
Grips
Ergon GA20
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal SRX
Seatpost
KTM COMP II dropper internal 34.9 T:125
Motor & Battery
Motor
Bosch PERFORMANCE CX BDU3840 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 800Wh horizontal
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL | XXL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.349 mm | 1.316 mm | 1.286 mm | 1.247 mm |
| Front Center | 780 mm | 802 mm | 830 mm | 862 mm |
| Rake | 41 mm | 41 mm | 40 mm | 40 mm |
| Trail | 129 mm | 129 mm | 130 mm | 130 mm |
| Stack | 611 mm | 620 mm | 634 mm | 647 mm |
| Reach | 453 mm | 471 mm | 493 mm | 519 mm |
| Top Tube Length | 600 mm | 620 mm | 645 mm | 671 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm | 520 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 444 mm |
| Wheelbase | 1228 mm | 1250 mm | 1278 mm | 1306 mm |
| Bottom Bracket Drop | 7 mm | 7 mm | 7 mm | 7 mm |
| Standover Height | 830 mm | 830 mm | 841 mm | 844 mm |
| Wheels | 29" | 29" | 29" | 29" |
