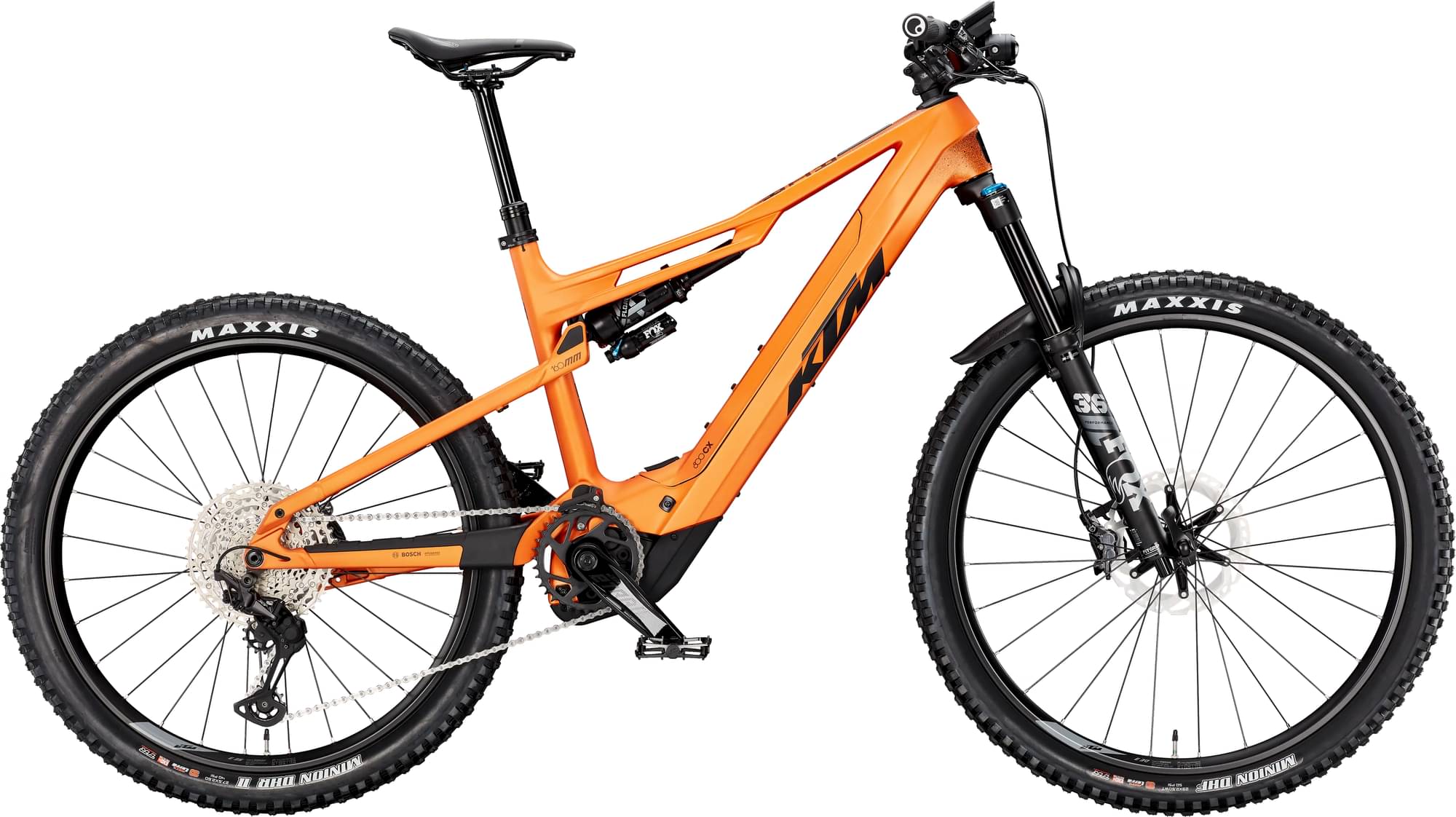

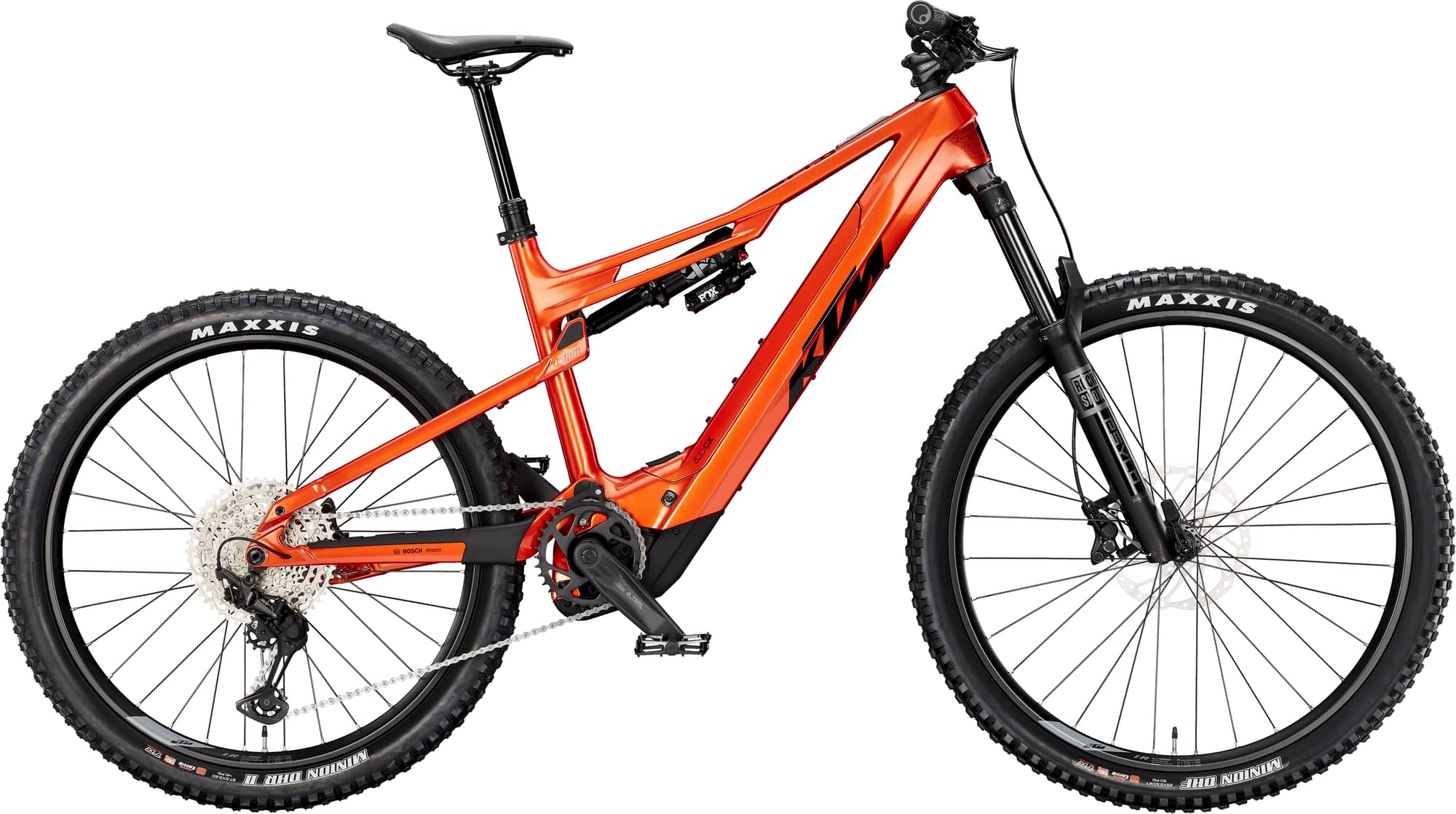

KTM MACINA KAPOHO PRO L 2025
2025 E-bike
Estimate price |
6,979$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Travel Front 160mm -
Fork Fox Performance Float 36
-
Groupset XT -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTUBE 800Wh horizontal -
Drivetrain 1 × 12 -
Brakes Shimano XT Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Kapoho Dimmix Perf. CB SLL 160 UDH Bosch BDU38/M5240
Suspension Fork
FOX 36 Float 29" Performance e-bike 160mm 15x110
Rear Shock
FOX Float X Performance 2Pos 250x70
Drivetrain
Shift Levers
Shimano Deore XT M8100-12
Cassette
Shimano Deore M6100-12 / 10-51
Crank
KTM E-TRAIL ISIS 160mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano M6100-12
Pedals
MTB-Pedal flat VPE-527 alloy
Wheels
Rims
KTM Line - DT Swiss 370 CL 28H 110/15TA, Ambrosio E30 Trail 28H 622x30TC, DT Champion 2.0 black \ KTM Line - DT Swiss 370 CL 28H 148/12 TA, Ambrosio E35 Trail 28H 584x35TC, DT Champion 2.0 black
Tires
Front: Maxxis Minion DHF 3C-MaxxTerra/EXO/TR 63-622, Rear: Maxxis Minion DHR II 3C-MaxxTerra/EXO/TR 70-584
Brakes
Brakes
Shimano Deore XT M8100 / M8120 4-Piston
Cockpit
Stem
KTM TEAM Trail35
Handlebar
KTM TEAM II Trail35 rizer25 800mm
Grips
Ergon GA20
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle San Marco Ground Short Open Fit Narrow
Seatpost
KTM COMP II dropper internal 34.9 T:125
Motor & Battery
Motor
Bosch PERFORMANCE CX BDU3840 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 800Wh horizontal
