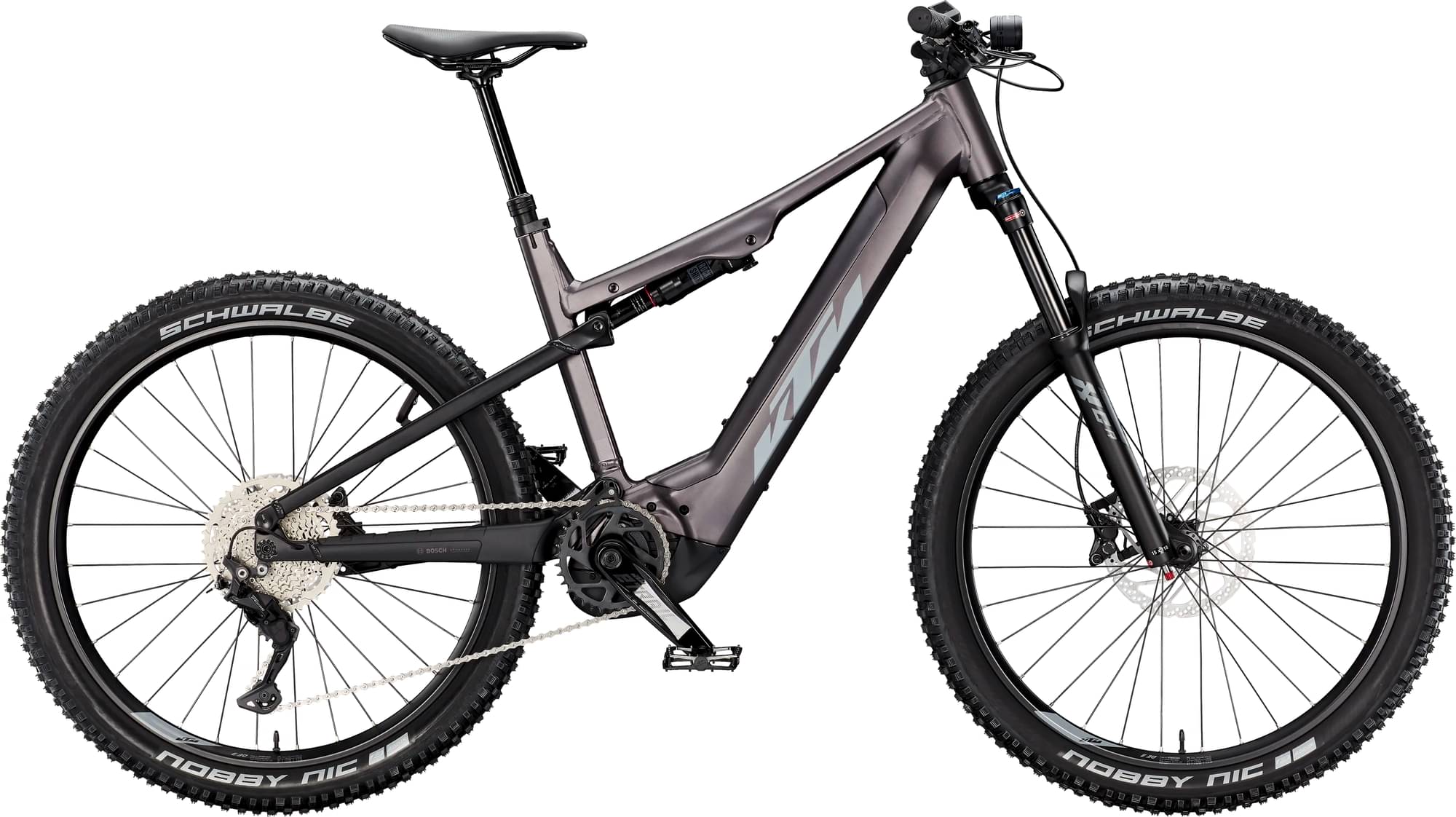

KTM MACINA LYCAN 773 L 2025
2025 E-bike
Estimate price |
5,816$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Fork Suntour XCR Air
-
Groupset Deore -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTUBE 750Wh horizontal -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Lycan 27.5" Al 6061 SLL-E 140 PT750 Bosch BDU37/M2296
Suspension Fork
Suntour XCR 34 Air 27.5" LOR 140mm 15x110 taper
Rear Shock
RockShox Deluxe Select 230x62.5
Drivetrain
Shift Levers
Shimano Deore M4100-10
Cassette
Shimano Deore M4100-10 / 11-46
Crank
KTM E-TRAIL ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC e10 EPT e-bike
Pedals
MTB-Pedal flat VPE-527 alloy
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA, Ambrosio E30 Trail 32H 584x30TC, DT Champion 2.0 black \ KTM Line - Shimano MT400B CL 32H 148-12TA, Ambrosio E30 Trail 32H 584x30TC, DT Alpine II 2.34 black
Tires
Front: Schwalbe Nobby Nic Perf. Folding 65-584, Rear: Schwalbe Nobby Nic Perf. Folding 65-584
Brakes
Brakes
Shimano MT401 / MT420 4-Piston
Cockpit
Stem
KTM TEAM Trail35
Handlebar
KTM COMP Trail35 rizer15 760mm
Grips
KTM COMP Lock
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
KTM Line Sport
Seatpost
KTM COMP dropper internal 30.9 T:120
Motor & Battery
Motor
Bosch PERFORMANCE CX BDU3740 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 750Wh horizontal
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.511 mm | 1.44 mm | 1.385 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm |
| Front Center | 701 mm | 715 mm | 742 mm |
| Rake | 46 mm | 44 mm | 43 mm |
| Trail | 104 mm | 103 mm | 104 mm |
| Stack | 600 mm | 602 mm | 612 mm |
| Reach | 397 mm | 418 mm | 442 mm |
| Top Tube Length | 565 mm | 585 mm | 610 mm |
| Seat Tube Angle | 74.4 ° | 74.5 ° | 74.7 ° |
| Seat Tube Length | 400 mm | 430 mm | 450 mm |
| Head Tube Angle | 66.5 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1151 mm | 1165 mm | 1192 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm |
| Standover Height | 786 mm | 785 mm | 790 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
