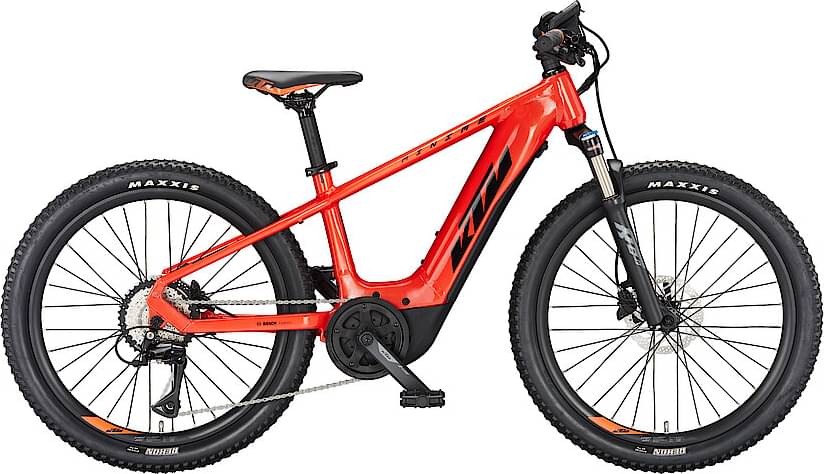

KTM MACINA MINI ME 441 2025
2025 E-bike
Estimate price |
3,489$
Weight | 19.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 63mm -
Fork Suntour XCR Air
-
Groupset Acera, Altus -
Suspension Hardtail -
Motor Bosch 600W 50Nm mid-drive -
Battery Bosch PowerTUBE 400Wh hor. -
Drivetrain 1 × 8 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina MTB 24" Alloy6061; PT500Wh Bosch Gen.3 / M-1026
Suspension Fork
Suntour XCR Air 24" LO 63mm
Drivetrain
Rear Derailleur
Shimano Acera M3020-8 SGS
Shift Levers
Shimano Altus M315-8 display
Cassette
Shimano HG400-8 / 11-40
Crank
KTM E-LINE BNI 152mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano HG40-8
Pedals
Pedal VP-225 Kids
Wheels
Rims
KTM Line - Shimano MT200 CL 32H 100-5QR / Ambrosio Sport Disc 32H 507x23C / DT Champion 2.0 black
Tires
Front: Maxxis Rekon fold 56-507, Rear: Maxxis Rekon fold 56-507
Brakes
Brakes
Shimano MT201 / MT200 2-Piston
Cockpit
Stem
KTM Team MTB 7°
Handlebar
KTM COMP II low rizer 640mm
Headset
Acros 1.1/8" angle limit
Seat
Saddle
KTM Line Kid
Seatpost
KTM COMP II 30.9/300
Motor & Battery
Motor
Bosch ACTIVE PLUS Gen.3 - 20km/h / 50Nm
Battery
Bosch PowerTUBE 400Wh hor.
Charger
Bosch COMPACT Charger 2A
Fit data
Geometry
