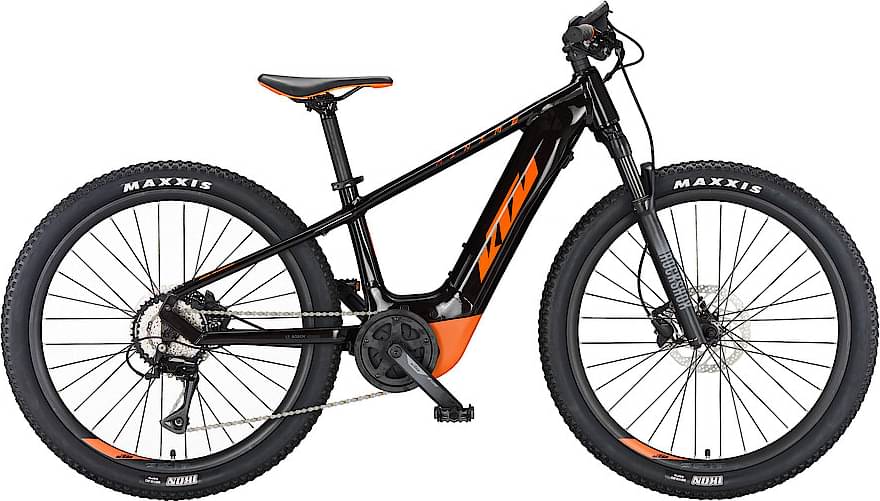

KTM MACINA MINI ME 561 2025
2025 E-bike
Estimate price |
3,898$
Weight | 20.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 80mm -
Fork RockShox Judy Silver TK
-
Groupset Acera, Altus -
Suspension Hardtail -
Motor Bosch 600W 65Nm mid-drive -
Battery Bosch PowerTUBE 500Wh hor. -
Drivetrain 1 × 8 -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina MTB 26" Alloy6061; PT500Wh Bosch Gen.3 / M-1036
Suspension Fork
RockShox Judy Silver TK 26" 80mm taper
Drivetrain
Rear Derailleur
Shimano Acera M3020-8 SGS
Shift Levers
Shimano Altus M315-8 display
Cassette
Shimano HG400-8 / 11-40
Crank
KTM E-LINE BNI 160mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano HG40-8
Pedals
MTB-Pedal C280DU alloy
Wheels
Rims
KTM Line - Shimano Deore M6000 CL 32H 100-5QR / Ambrosio Sport Disc 28H 559x23C / DT Champion 2.0 black
Tires
Front: Maxxis Ikon wire 56-559, Rear: Maxxis Ikon wire 56-559
Brakes
Brakes
Shimano MT201 / MT200 2-Piston
Cockpit
Stem
KTM Team MTB 7°
Handlebar
KTM COMP II low rizer 640mm
Headset
KTM Team MTB 1.1/8"-1.5" angle limit
Seat
Saddle
KTM Line Sport
Seatpost
KTM COMP II 30.9/300
Motor & Battery
Motor
Bosch PERFORMANCE Gen.3 - 25km/h / 65Nm
Battery
Bosch PowerTUBE 500Wh hor.
Charger
Bosch COMPACT Charger 2A
Fit data
Geometry
