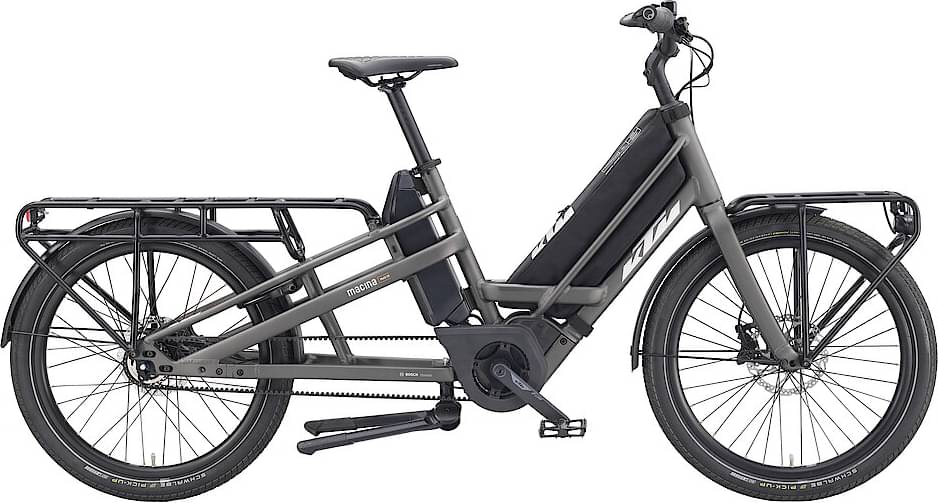

KTM MACINA MULTI CX UNI 2025
2025 E-bike
Estimate price |
5,816$
Weight | 29.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Nexus -
Suspension Rigid -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerPACK 725Wh SMART SYSTEM -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Multi CX 24" LongTail Alloy 6061; Si-PP800Wh Bosch Gen.4 / C-3020
Suspension Fork
24" alloy cargo
Drivetrain
Shift Levers
Shimano Nexus 5 Revoshifter
Cassette
Gates rear-sprocket 34T Nexus 5
Crank
KTM E-LINE BNI 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Gates drive-belt 174T CDX
Chain Guide
KTM type for Multi
Pedals
MTB-Pedal flat VPE-527 alloy
Wheels
Rims
KTM Line - Shimano Deore M6010 CL 36H 100-15TA / Ryde Andra29 36H 507x29C / DT Alpine II 2.34 black
Tires
Front: Schwalbe Pickup Super Defense 60-507, Rear: Schwalbe Pickup Super Defense 60-507
Brakes
Brakes
Shimano MT402 (3-F) / MT420 4-Piston
Cockpit
Stem
Ergotec HighCarisma 50
Handlebar
Ergotec Riserbar 50 -780mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Essenza EPTech
Seatpost
KTM COMP II 34.9 / 350
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm
Battery
Bosch PowerPACK 725Wh SMART SYSTEM
Charger
Bosch STANDARD Charger 4A SMART SYSTEM
