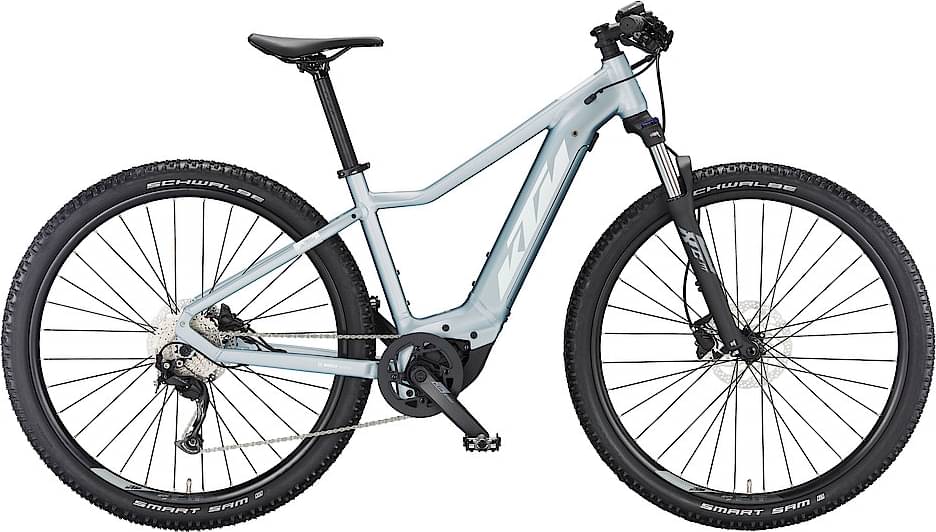

KTM MACINA RACE 592 GLORIOUS 2025
2025 E-bike
Estimate price |
3,722$
Weight | 22.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Alivio -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTUBE 500Wh hor. -
Drivetrain 1 × 9 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina MTB 29" Alloy6061; PT500Wh Bosch Gen.4 / M-1766
Suspension Fork
Suntour XCM 32 coil 29" NLO 100mm 15x100 taper
Drivetrain
Rear Derailleur
Shimano Alivio M3100-9 SGS shadow
Shift Levers
Shimano Alivio M3100-9 display
Cassette
Shimano HG201-9 / 11-36
Crank
KTM E-COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano E6070-9 e-bike
Pedals
MTB-Pedal VP-195E alloy
Wheels
Rims
KTM Line - Shimano MT400 CL 32H 100-15TA / Ryde Rival30 32H 622x30C / DT Champion 2.0 black
Tires
Front: Schwalbe Smart Sam K-Guard 57-622, Rear: Schwalbe Smart Sam K-Guard 57-622
Brakes
Brakes
Shimano MT200 / MT200 2-Piston
Cockpit
Stem
KTM COMP II 7°
Handlebar
KTM COMP II flat 2X 720mm
Headset
KTM Team drop/in 1.1/8"-1.5"
Seat
Saddle
KTM Line Sport
Seatpost
KTM COMP II 30.9/400
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 500Wh hor.
Charger
Bosch COMPACT Charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.561 mm | 1.51 mm | 1.476 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm |
| Front Center | 638 mm | 653 mm | 673 mm |
| Rake | 40 mm | 40 mm | 39 mm |
| Trail | 90 mm | 87 mm | 88 mm |
| Stack | 618 mm | 625 mm | 636 mm |
| Reach | 396 mm | 414 mm | 431 mm |
| Top Tube Length | 585 mm | 605 mm | 625 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 120 mm | 125 mm | 137 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1096 mm | 1111 mm | 1131 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm |
| Standover Height | 745 mm | 761 mm | 792 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
