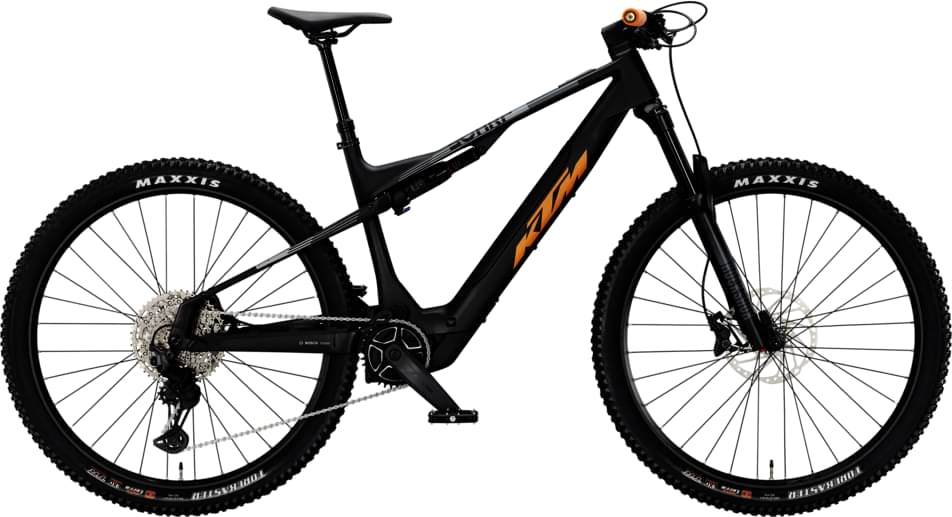

KTM MACINA SCARP SX ELITE 2025
2025 E-bike
Estimate price |
5,816$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Travel Front 140mm -
Fork RockShox Recon Gold RL
-
Groupset XT -
Suspension Full -
Motor Bosch 600W 55Nm mid-drive -
Battery Bosch CompactTUBE 400Wh -
Drivetrain 1 × 11 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Scarp Premium CB SLL 140 UDH CPT400 Bosch BDU31/M5840
Suspension Fork
RockShox Recon Gold RL 29" 140mm 15x110
Rear Shock
RockShox Deluxe Select+ 230x60
Drivetrain
Shift Levers
Shimano Deore XT M8130-11 LG
Cassette
Shimano LG400-11 / 11-50
Crank
KTM E-TEAM2 ISIS 170mm Q8
Bottom Bracket
Bosch, press-fit
Chain
KMC e11 Sport EPT e-bike
Pedals
MTB-Pedal flat VP-539 nylon
Wheels
Rims
KTM Line - Shimano TC500B CL 32H 110-15TA, Black Jack Ready30 32H 622x30TC, DT Champion 2.0 black \ KTM Line - Shimano TC500B CL 32H 148-12TA, Black Jack Ready30 32H 622x30TC, DT Alpine II 2.34 black
Tires
Front: Maxxis Forekaster EXO/TR 3C MaxxTerra 62-622, Rear: Maxxis Forekaster EXO/TR 3C MaxxTerra 62-622
Brakes
Brakes
Shimano M4100 / MT420 4-Piston
Cockpit
Stem
FSA NS MTB -10° ICR
Handlebar
KTM TEAM II flat 9° 780mm
Grips
ESI Chunky silicone
Headset
FSA ACR drop/in 1.5" internal
Seat
Saddle
Selle Royal SRX
Seatpost
KTM COMP dropper internal 30.9 T:120
Motor & Battery
Motor
Bosch PERFORMANCE SX BDU3144 - 25km/h / 55Nm
Battery
Bosch CompactTUBE 400Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.318 mm | 1.303 mm | 1.261 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm |
| Front Center | 759 mm | 782 mm | 815 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 119 mm | 119 mm | 119 mm |
| Stack | 601 mm | 615 mm | 629 mm |
| Reach | 456 mm | 472 mm | 499 mm |
| Top Tube Length | 600 mm | 620 mm | 650 |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 105 mm | 120 mm |
| Chainstay Length | 451 mm | 451 mm | 451 mm |
| Wheelbase | 1208 mm | 1231 mm | 1264 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 809 mm | 817 mm | 825 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
