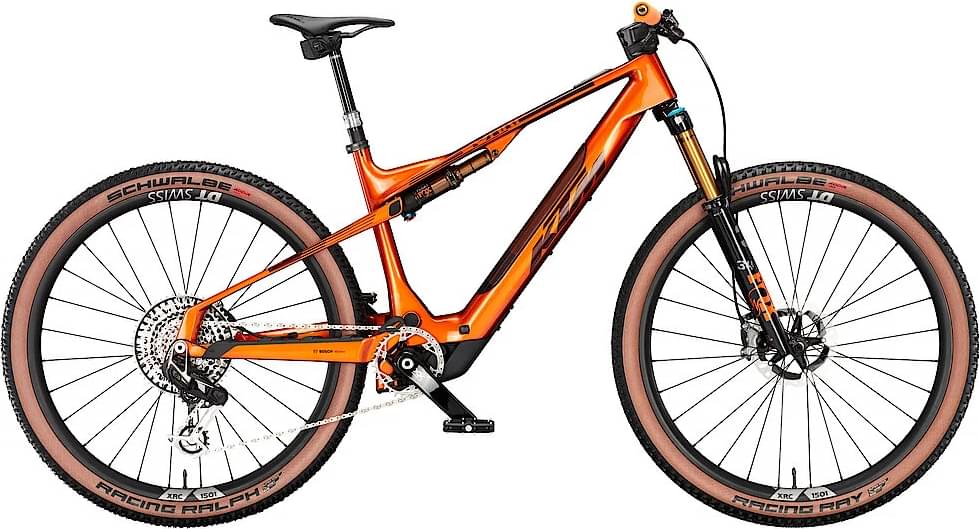

KTM MACINA SCARP SX EXONIC 2025
2025 E-bike
Estimate price |
12,730$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Factory Float 34
-
Groupset XX -
Suspension Full -
Motor Bosch 600W 55Nm mid-drive -
Battery Bosch PowerTUBE 400Wh SMART SYSTEM compact -
Drivetrain 1 × 12 -
Brakes Shimano XTR Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Scarp 29" Premium Carbon SLL-E 140mm UDH CPT400 Bosch BDU31 / M-4830
Suspension Fork
FOX 34 Float 29" Factory e-Tune 140mm Grip2
Rear Shock
FOX Float Factory 2-P 230x60
Drivetrain
Shift Levers
SRAM POD Ultimate AXS Controller
Cassette
SRAM XX Eagle T-Type XS-1297 / 10-52T
Crank
SRAM XX Eagle E-MTB 170mm
Bottom Bracket
Bosch, press-fit
Chain
SRAM XX Eagle T-Type 12s
Pedals
MTB-Pedal flat VP-539 nylon
Wheels
Rims
DT Swiss XRC 1501 Spline 30 Carbon CL 110-15TA / 622x30TSS TLR//DT Swiss XRC 1501 Spline 30 Carbon CL 148-12TA / 622x30TSS TLR
Tires
Front: Schwalbe Racing Ray Evo SuperRace TLE 60-622, Rear: Schwalbe Racing Ralph Evo SuperRace TLE 60-622
Brakes
Brakes
Shimano XTR M9100 / M9120 4-Piston
Cockpit
Stem
integrated -12°
Handlebar
FSA KFX SIC Carbon 65x780mm
Grips
ESI Chunky silicone
Headset
FSA ACR / Acros 1.5" angle limit
Seat
Saddle
Selle Italia SLR Boost flow Carbon Rails
Seatpost
RockShox Reverb AXS wireless
Motor & Battery
Motor
Bosch PERFORMANCE SX SMART SYSTEM - 25km/h / 55Nm
Battery
Bosch PowerTUBE 400Wh SMART SYSTEM compact
Charger
Bosch STANDARD Charger 4A SMART SYSTEM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.318 mm | 1.303 mm | 1.261 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm |
| Front Center | 759 mm | 782 mm | 815 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 119 mm | 119 mm | 119 mm |
| Stack | 601 mm | 615 mm | 629 mm |
| Reach | 456 mm | 472 mm | 499 mm |
| Top Tube Length | 600 mm | 620 mm | 650 |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 105 mm | 120 mm |
| Chainstay Length | 451 mm | 451 mm | 451 mm |
| Wheelbase | 1208 mm | 1231 mm | 1264 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 809 mm | 817 mm | 825 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
