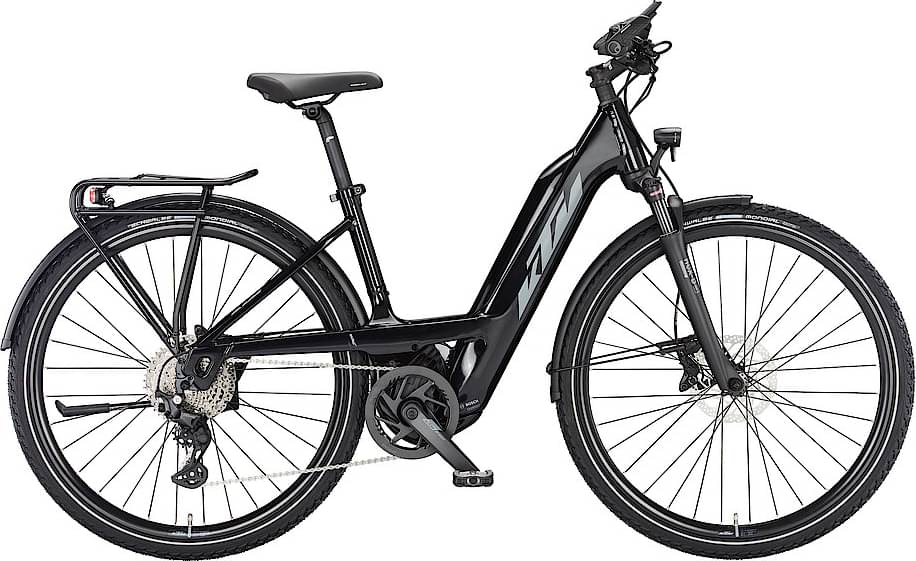

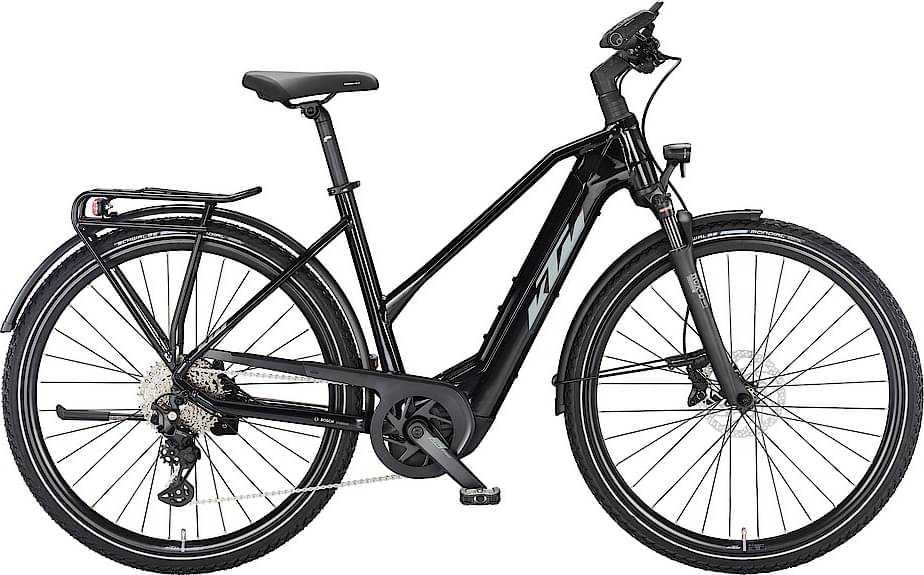

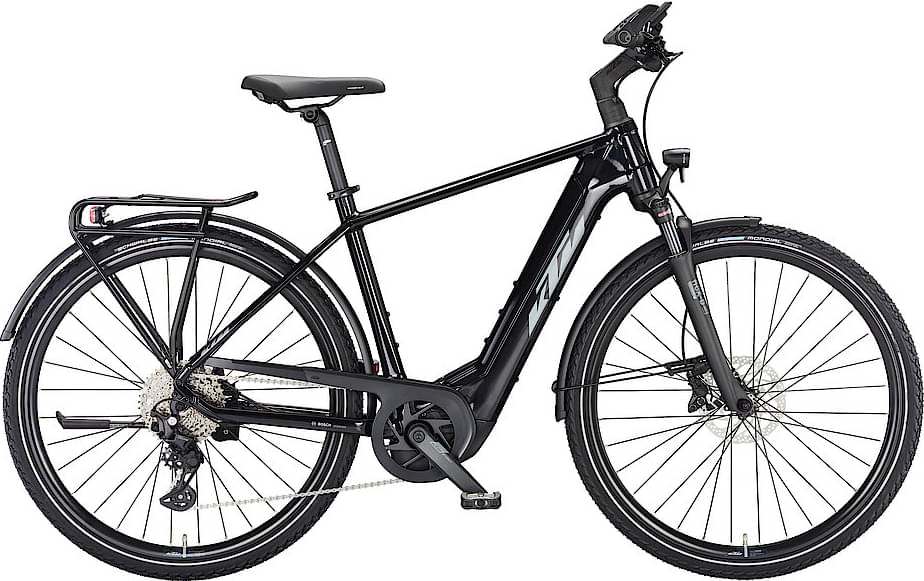

KTM MACINA SPORT 610 2025
2025 E-bike
Estimate price |
4,652$
Weight | 25.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh SMART SYSTEM hor. -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekking Onroad Alloy6061; PT750Wh Bosch Gen.4 / T-2940
Suspension Fork
Suntour NCX-D Air LO 63mm
Drivetrain
Rear Derailleur
Shimano Deore M5130-10 LG shadow+
Shift Levers
Shimano Deore M5130-10 LG display
Cassette
Shimano LG400-10 / 11-43
Crank
KTM E-COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano LG500
Pedals
Trekking-Pedal VP-616 anti-slip
Wheels
Rims
KTM Line - Shimano Deore M6000 CL 32H 100-5QR / Ryde Rival Sport 32H 622x25C / DT Champion 2.0 black
Tires
Front: Schwalbe Marathon Mondial Perf. RaceGuard 47-622, Rear: Schwalbe Marathon Mondial Perf. RaceGuard 47-622
Brakes
Brakes
Shimano MT402 (3-F) / MT420 4-Piston
Cockpit
Stem
KTM Line 17°
Handlebar
KTM Line low rizer 640mm
Headset
KTM Team Trekking 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Essenza+
Seatpost
KTM Line 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm
Battery
Bosch PowerTUBE 625Wh SMART SYSTEM hor.
Charger
Bosch STANDARD Charger 4A SMART SYSTEM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.481 mm | 1.516 mm | 1.539 mm | 1.545 mm |
| Front Center | 645 mm | 645 mm | 656 mm | 671 mm |
| Rake | 42 mm | 42 mm | 42 mm | 41 mm |
| Trail | 86 mm | 79 mm | 79 mm | 80 mm |
| Stack | 591 mm | 611 mm | 628 mm | 646 mm |
| Reach | 399 mm | 403 mm | 408 mm | 418 mm |
| Top Tube Length | 580 mm | 590 mm | 600 mm | 615 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 69.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 120 mm | 137 mm | 155 mm | 174 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1112 mm | 1112 mm | 1123 mm | 1138 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 782 mm | 816 mm | 848 mm | 875 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
