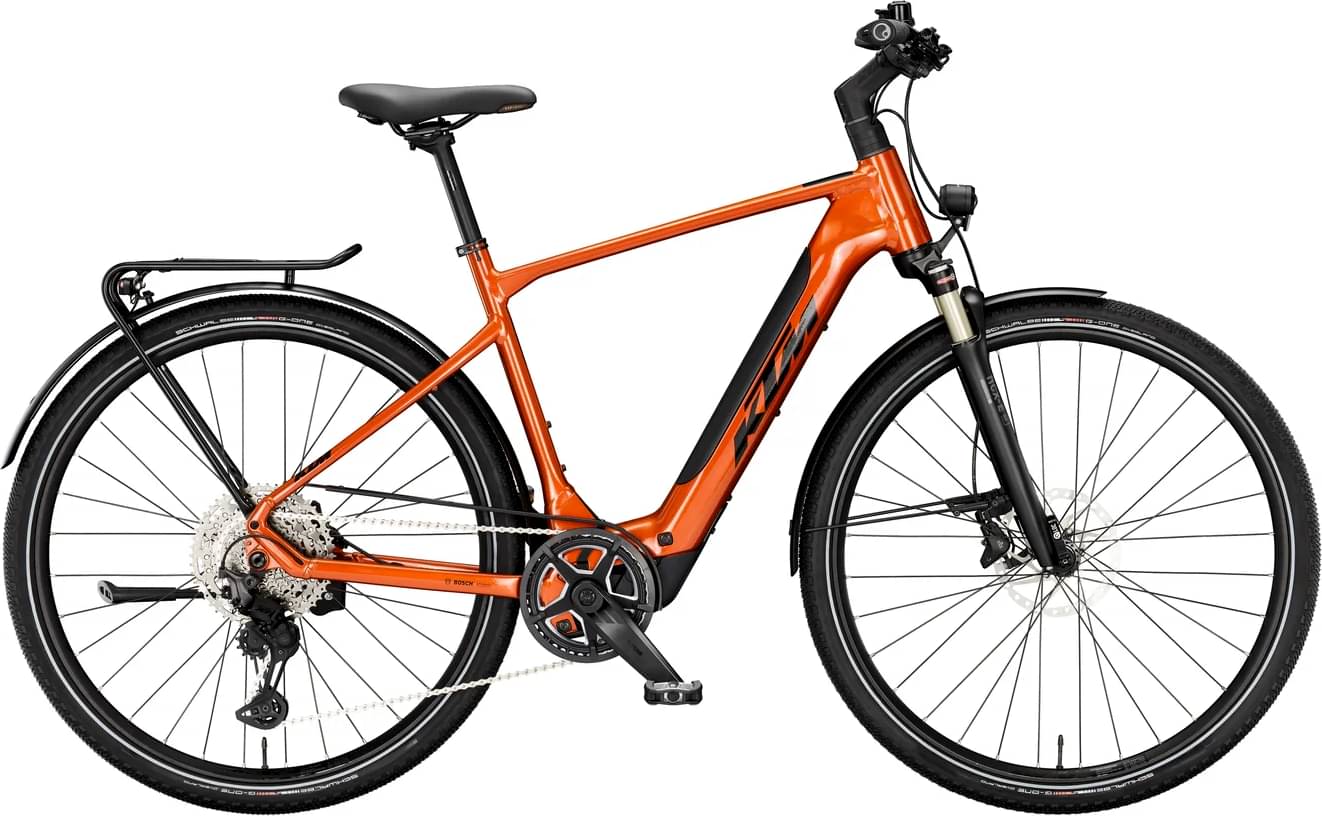

KTM MACINA SPORT SX 10 2025
2025 E-bike
Estimate price |
4,303$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 600W 55Nm mid-drive -
Battery Bosch PowerTUBE 400Wh SMART SYSTEM compact -
Drivetrain 1 × 11 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekking Offroad Alloy 6061 CPT400Wh Bosch BDU31 / T-4110
Suspension Fork
Suntour NCX-E Air LO 63mm 15QLC
Drivetrain
Shift Levers
Shimano Deore XT M8130-11 LG
Cassette
Shimano LG400-11 / 11-50T
Crank
KTM E-TEAM2 ISIS 170mm Q8
Bottom Bracket
Bosch, press-fit
Chain
KMC e11 Sport EPT e-bike
Pedals
Trekking-Pedal VP-616 anti-slip
Wheels
Rims
KTM Line - Shimano Deore M6010 CL 32H 100-15TA, Black Jack Ready25 32H 622x30TC, DT Champion 2.0 black//KTM Line - Shimano CUES TC500 CL 32H 142-12TA, Black Jack Ready25 32H 622x30TC, DT Alpine II 2.34 black
Tires
Front: Schwalbe G-One Overland SuperGround TLE 45-622, Rear: Schwalbe G-One Overland SuperGround TLE 45-622
Brakes
Brakes
Shimano MT402 (3-F) / MT410 2-Piston
Cockpit
Stem
KTM +20° ICR
Handlebar
KTM Team II low rizer 640mm
Grips
Ergon GP1 SD
Headset
Acros ICR 1.5" angle limit
Seat
Saddle
Selle Royal Explora Gel
Seatpost
KTM Team II 27.2/350
Motor & Battery
Motor
Bosch PERFORMANCE SX SMART SYSTEM - 25km/h / 55Nm
Battery
Bosch PowerTUBE 400Wh SMART SYSTEM compact
Charger
Bosch Compact Charger 2A SMART SYSTEM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.454 mm | 1.475 mm | 1.5 mm | 1.508 mm |
| Front Center | 636 mm | 646 mm | 657 mm | 673 mm |
| Rake | 42 mm | 41 mm | 41 mm | 42 mm |
| Trail | 79 mm | 80 mm | 80 mm | 79 mm |
| Stack | 583.9 mm | 599.9 mm | 616.9 mm | 634.9 mm |
| Reach | 401.5 mm | 406.6 mm | 411.4 mm | 420.9 mm |
| Top Tube Length | 580 mm | 590 mm | 600 mm | 615 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 120 mm | 137 mm | 155 mm | 174 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1082 mm | 1092 mm | 1103 mm | 1119 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 788 mm | 818 mm | 851 mm | 880 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
