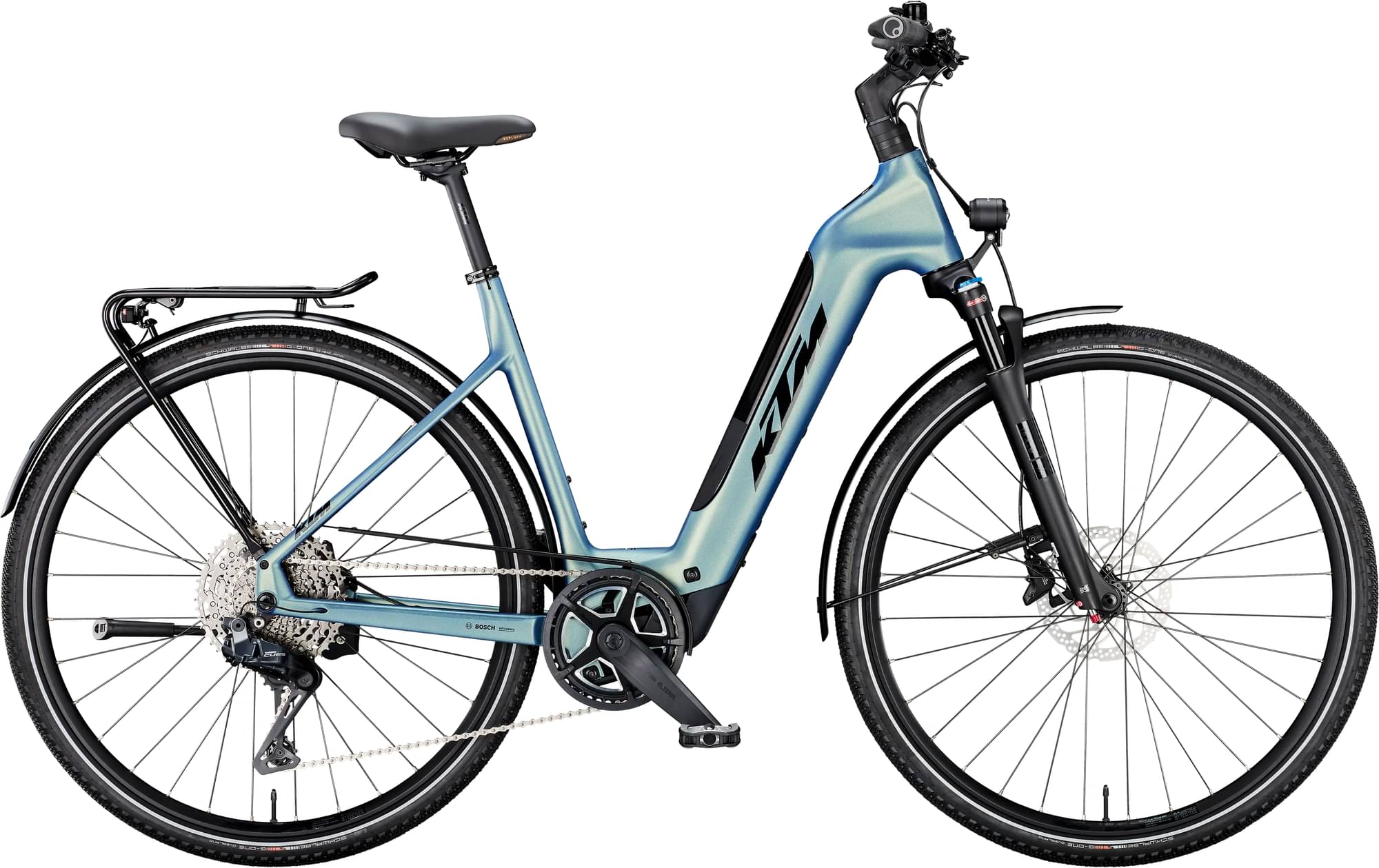

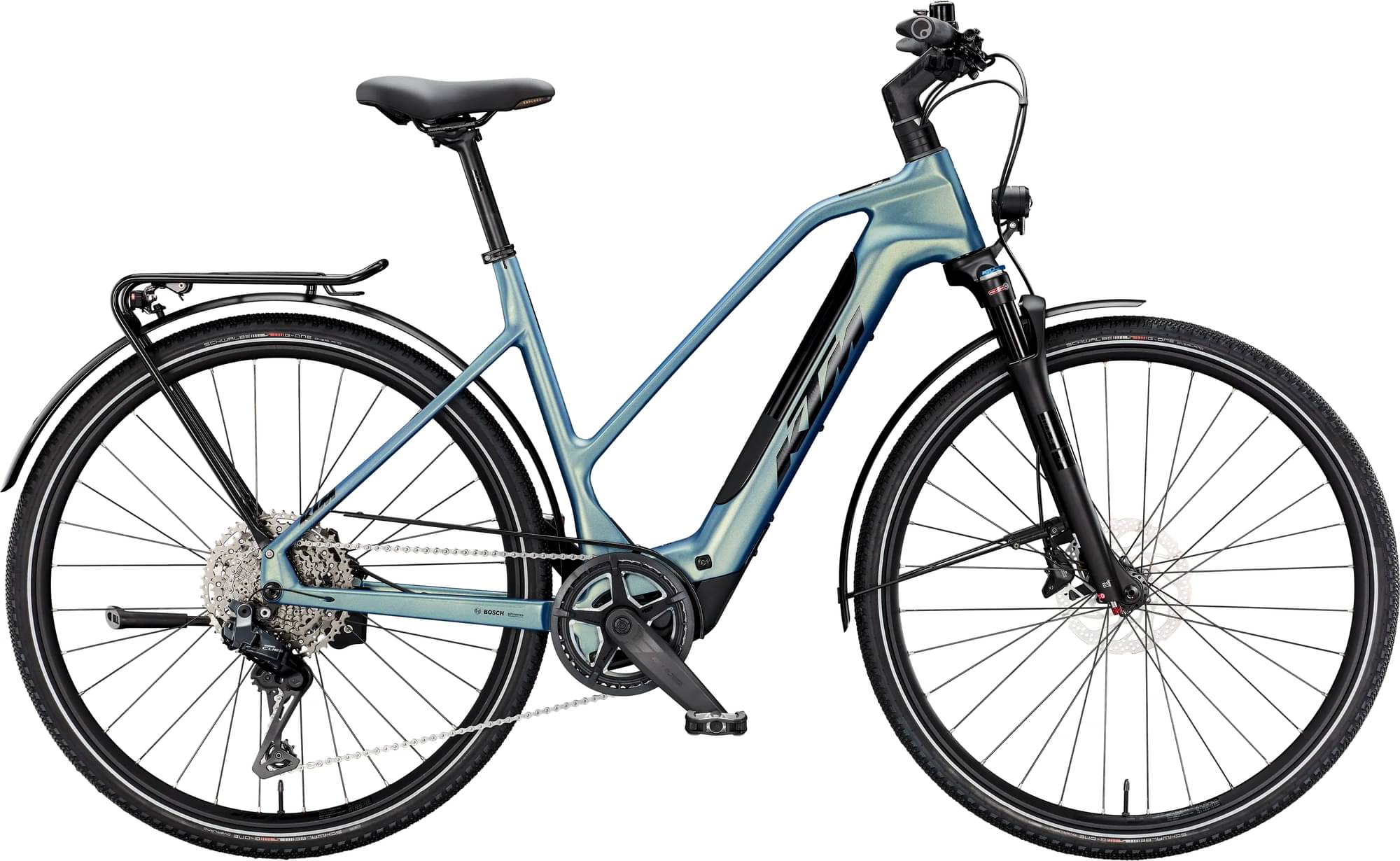

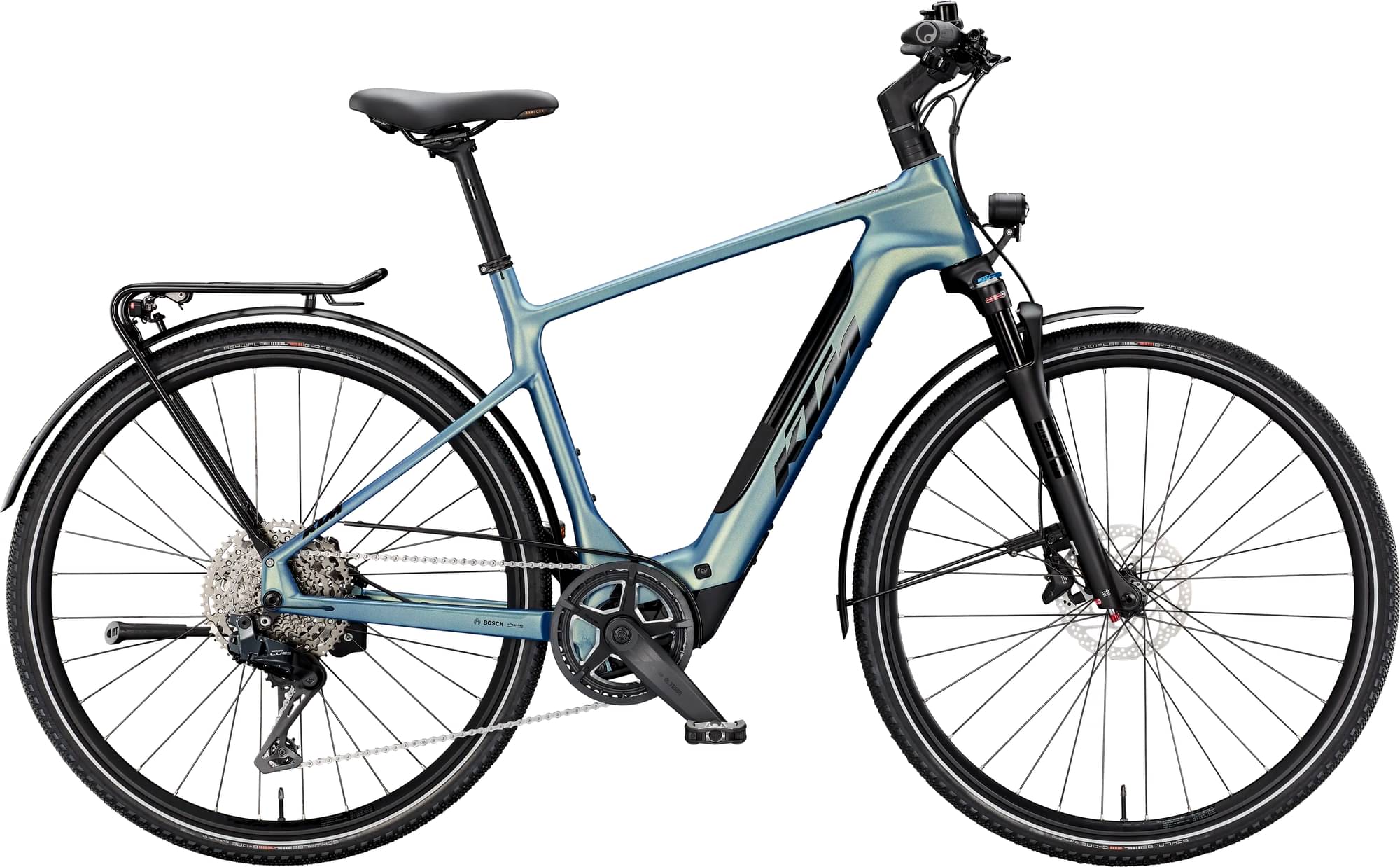

KTM MACINA SPORT SX ELITE DI2 2025
2025 E-bike
Estimate price |
5,350$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Travel Front 63mm -
Fork Suntour NRX
-
Groupset Shimano -
Suspension Hardtail -
Motor Bosch 600W 55Nm mid-drive -
Battery Bosch CompactTUBE 400Wh -
Drivetrain 1 × 11 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekking On Premium Carb UDH CPT400 Bosch BDU31/T4100
Suspension Fork
Suntour NRX32-E Air LOR 63mm 15AH2x100 taper
Drivetrain
Shift Levers
Shimano Di2 EN605 wireless
Cassette
Shimano LG400-11 / 11-50
Crank
KTM E-TEAM2 ISIS 170mm Q8
Bottom Bracket
Bosch, press-fit
Chain
KMC e11 Sport EPT e-bike
Chain Guide
Horn Catena 22 44T
Pedals
Trekking-Pedal VP-616 anti-slip
Wheels
Rims
KTM Line - Shimano TC500 CL 32H 100-15TA, Black Jack Ready25 32H 622x25TC, DT Champion 2.0 black \ KTM Line - Shimano TC500 CL 32H 142-12TA, Black Jack Ready25 32H 622x25TC, DT Alpine II 2.34 black
Tires
Front: Schwalbe G-One Overland 45-622, Rear: Schwalbe G-One Overland 45-622
Brakes
Brakes
Shimano MT402 (3-F) / MT410 2-Piston
Cockpit
Stem
KTM Line +20° ICR
Handlebar
KTM TEAM II low rizer 640mm
Grips
ERGON GS1
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Explora Gel
Seatpost
KTM TEAM II 27.2/350
Motor & Battery
Motor
Bosch PERFORMANCE SX BDU3144 - 25km/h / 55Nm
Battery
Bosch CompactTUBE 400Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.441 mm | 1.463 mm | 1.487 mm | 1.496 mm |
| Front Center | 636 mm | 646 mm | 657 mm | 673 mm |
| Rake | 42 mm | 41 mm | 42 mm | 42 mm |
| Trail | 79 mm | 80 mm | 79 mm | 79 mm |
| Stack | 580.3 mm | 596.3 mm | 613.3 mm | 631.2 mm |
| Reach | 402.6 mm | 407.7 mm | 412.5 mm | 422 mm |
| Top Tube Length | 580 mm | 590 mm | 600 mm | 615 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 120 mm | 137 mm | 155 mm | 174 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1082 mm | 1092 mm | 1103 mm | 1119 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 789 mm | 803 mm | 837 mm | 866 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
