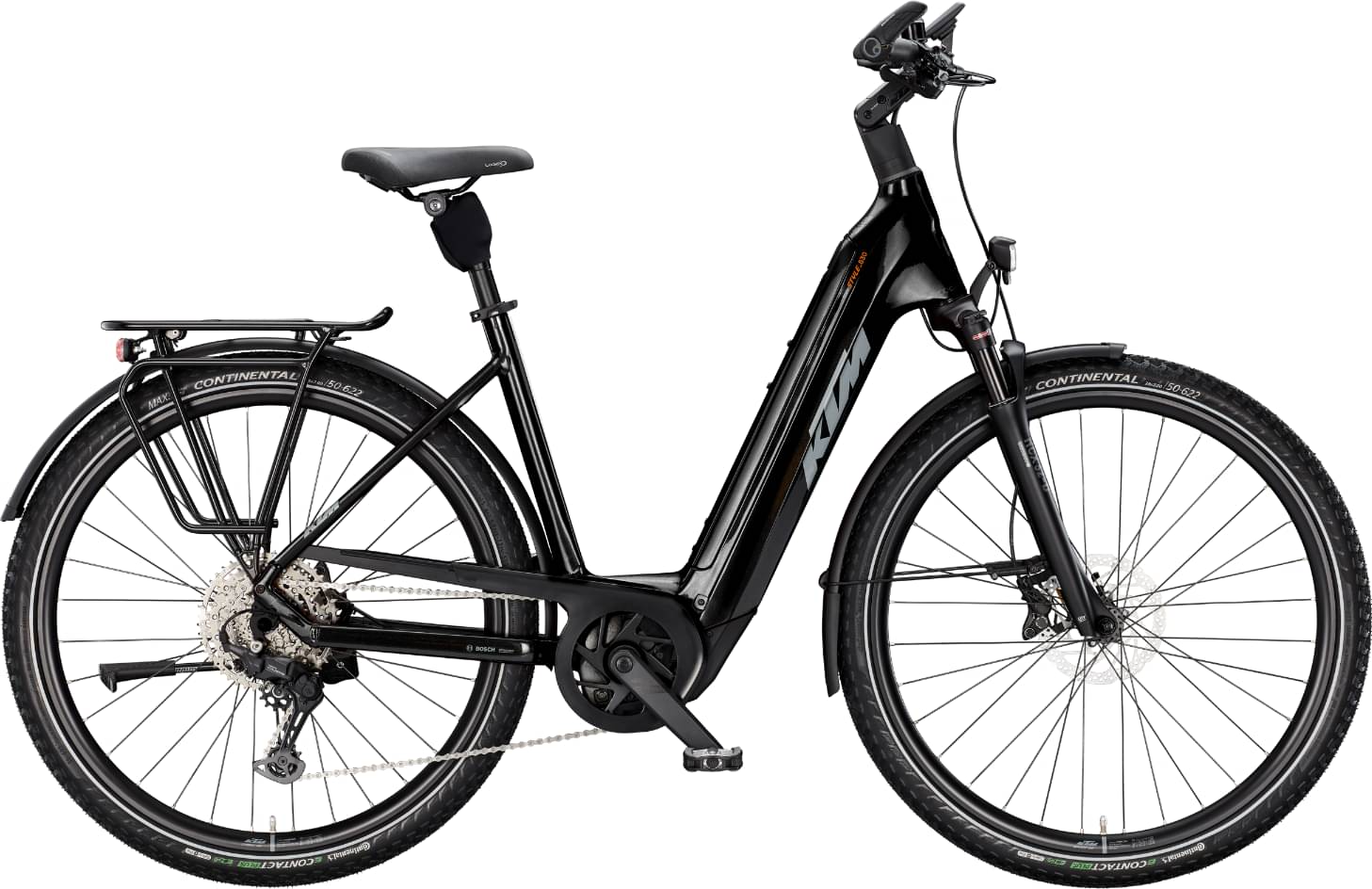

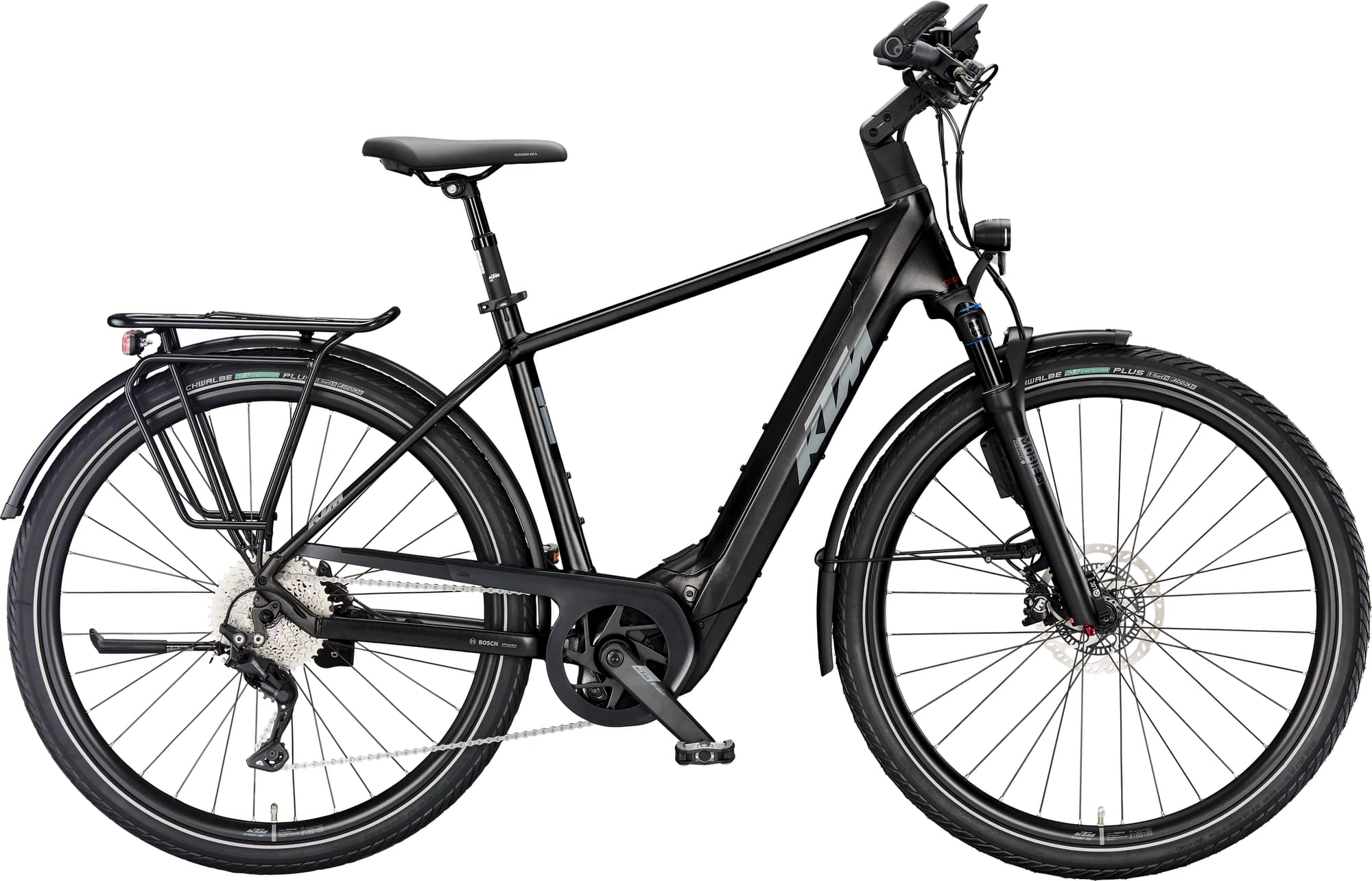

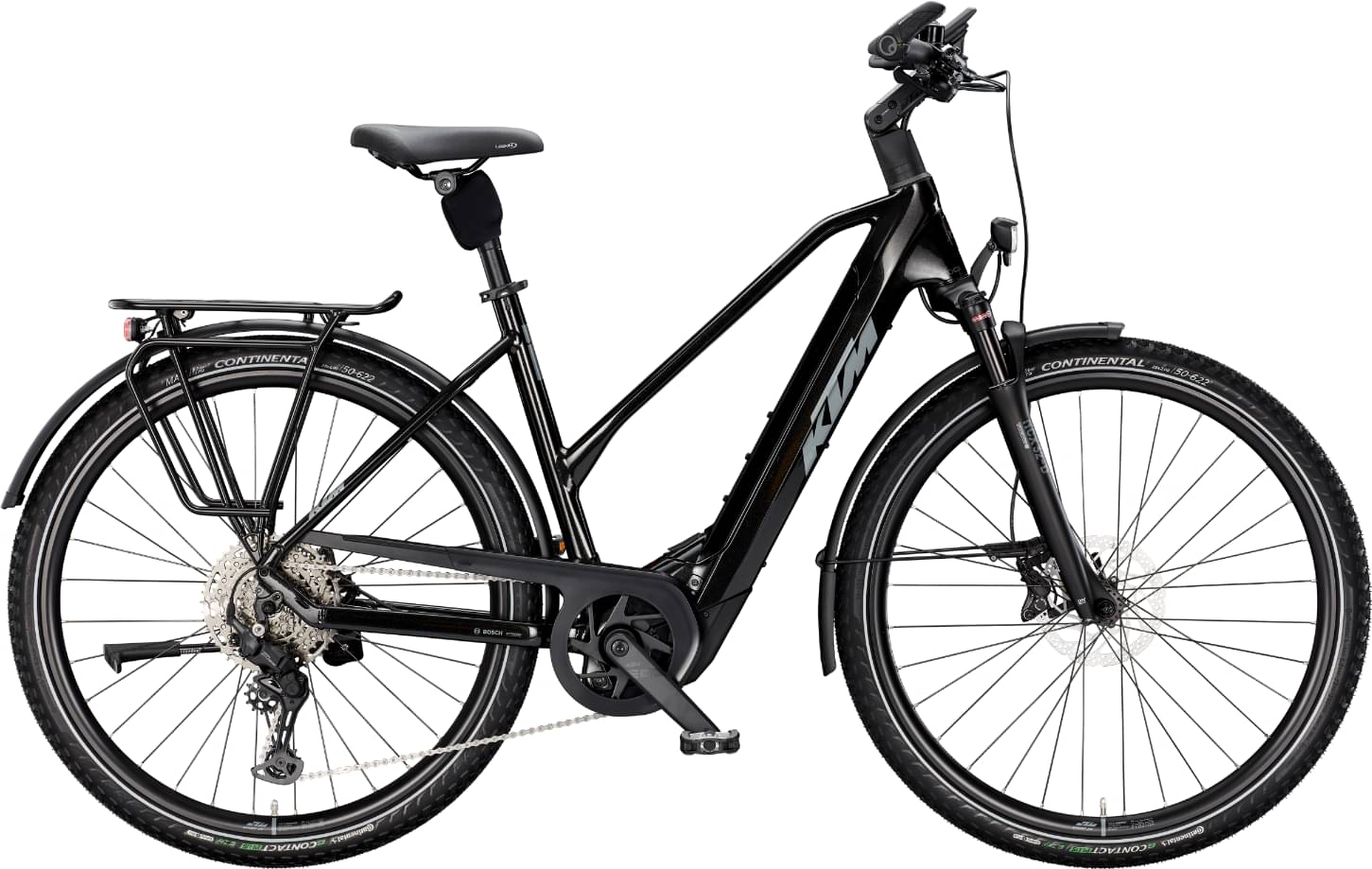

KTM MACINA STYLE 830 ABS 2025
2025 E-bike
Estimate price |
5,234$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTUBE 800Wh horizontal -
Drivetrain 1 × 10 -
Brakes Magura Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekking Onroad Alloy 6061 PT800 Bosch BDU38 / T-5940
Suspension Fork
Suntour Mobie34 Air 29" 2CR 80mm 15QLC taper
Drivetrain
Shift Levers
Shimano Deore M5130-10 LG display
Cassette
Shimano LG600-10 / 11-43
Crank
KTM E-COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano LG500
Chain Guide
KTM type 9 for Bosch BDU38
Pedals
Trekking-Pedal VP-616 anti-slip
Wheels
Rims
KTM Line - Shimano TC500 CL 32H 100-15TA, Ambrosio Sport 25 32H 622x25TC, DT Champion 2.0 black \ KTM Line - Shimano Deore M5100 CL 32H 135-5QR, Ambrosio Sport 25 32H 622x25TC, DT Alpine II 2.34 black
Tires
Front: Schwalbe Energizer Plus Perf. GreenGuard 50-622 Reflex, Rear: Schwalbe Energizer Plus Perf. GreenGuard 50-622 Reflex
Brakes
Brakes
Magura MTC ABS 4-Piston
Cockpit
Stem
KTM Line adjust. 0-60° ICR
Handlebar
KTM Line rizer20 640mm
Grips
Ergon GP1 SD
Headset
Acros headsetcover OD62 Phyton
Seat
Saddle
Selle Royal Essenza
Seatpost
KTM Line Elegance suspension 30.9/300
Motor & Battery
Motor
Bosch PERFORMANCE CX BDU3840 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 800Wh horizontal
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.662 mm | 1.67 mm | 1.666 mm | 1.605 mm |
| Front Center | 645 mm | 644 mm | 659 mm | 679 mm |
| Rake | 42 mm | 42 mm | 41 mm | 42 mm |
| Trail | 89 mm | 82 mm | 83 mm | 82 mm |
| Stack | 630 mm | 643 mm | 658 mm | 663 mm |
| Reach | 379 mm | 385 mm | 395 mm | 413 mm |
| Top Tube Length | 590 mm | 600 mm | 615 mm | 635 mm |
| Seat Tube Angle | 71.5 ° | 71.5 ° | 71.5 ° | 71.5 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 165 mm | 174 mm | 190 mm | 195 mm |
| Chainstay Length | 487 mm | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1125 mm | 1124 mm | 1139 mm | 1159 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
