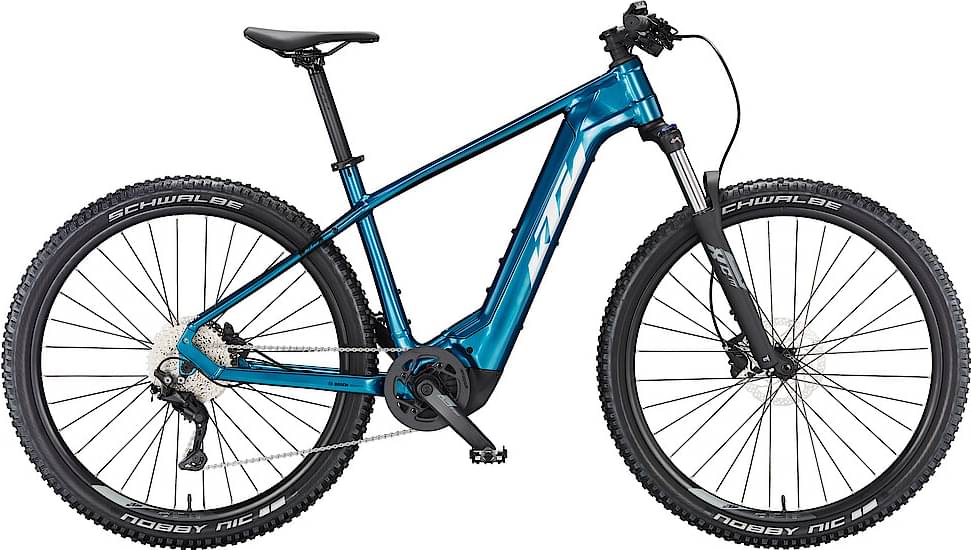

KTM MACINA TEAM 691 2025
2025 E-bike
Estimate price |
4,420$
Weight | 24.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh SMART SYSTEM hor. -
Drivetrain 1 × 10 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina MTB 29" Alloy6061; PT750Wh Bosch Gen.4 / M-2706
Suspension Fork
Suntour XCM 34 coil 29" NLO 120mm 15x110 taper
Drivetrain
Rear Derailleur
Shimano Deore M4120-10 SGS shadow
Shift Levers
Shimano Deore M4100-10 display
Cassette
Shimano Deore M4100-10 / 11-42
Crank
KTM E-COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC e10 EPT e-bike
Pedals
MTB-Pedal VP-195E alloy
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ryde Rival30 32H 622x30C / DT Champion 2.0 black
Tires
Front: Schwalbe Nobby Nic Perf. Folding 62-622, Rear: Schwalbe Nobby Nic Perf. Folding 62-622
Brakes
Brakes
Shimano MT200 / MT200 2-Piston
Cockpit
Stem
KTM COMP II 7°
Handlebar
KTM COMP II flat 2X 720mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
KTM Line Sport
Seatpost
KTM COMP II 30.9/400
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm
Battery
Bosch PowerTUBE 625Wh SMART SYSTEM hor.
Charger
Bosch STANDARD Charger 4A SMART SYSTEM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.429 mm | 1.41 mm | 1.416 mm |
| Bottom Bracket Height | 327 mm | 327 mm | 327 mm |
| Front Center | 662 mm | 673 mm | 684 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 97 mm | 97 mm | 97 mm |
| Stack | 583 mm | 588 mm | 599 mm |
| Reach | 408 mm | 417 mm | 423 mm |
| Top Tube Length | 575 mm | 585 mm | 595 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 125 mm | 137 mm |
| Chainstay Length | 454 mm | 454 mm | 454 mm |
| Wheelbase | 1112 mm | 1123 mm | 1134 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm |
| Standover Height | 767 mm | 771 mm | 788 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
