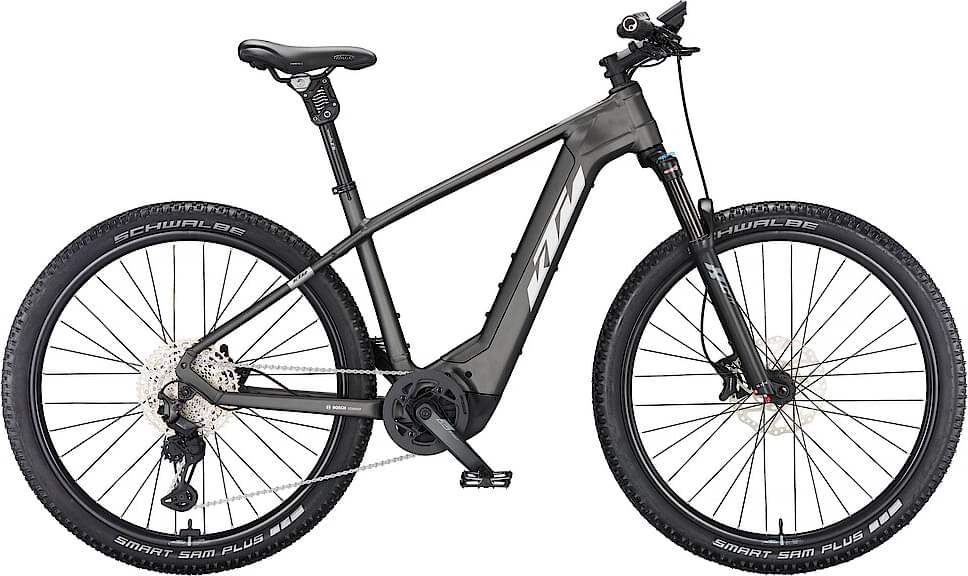

KTM MACINA TEAM XL 2024
2024 E-bike
Estimate price |
5,504$
Weight | 26.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCR Air
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTUBE 750Wh SMART SYSTEM hor. -
Drivetrain 1 × 11 -
Brakes Tektro Gemini Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina MTB 29" Alloy6061; PT750Wh Bosch Gen.4 / M-2706
Suspension Fork
Suntour XCR 34 Air 29" LOR 120mm 15x110 taper
Drivetrain
Rear Derailleur
Shimano Deore XT M8130-11 LG shadow+
Shift Levers
Shimano Deore XT M8130-11 LG
Cassette
Shimano LG400-11 / 11-50
Crank
KTM E-COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC e11 Sport EPT e-bike
Pedals
MTB-Pedal flat VPE-527 alloy
Wheels
Rims
KTM Line - DT Swiss 370 6b 32L 110/15 / Ryde Andra29 32H 622x29C / DT Alpine II 2.34 black
Brakes
Brakes
Tektro HD-M535 4-Piston
Cockpit
Stem
Ergotec Piranha2 6°
Handlebar
Ergotec low rizer GH15 Savety 740mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Viaggio HRC
Seatpost
bySchulz G.2 ST suspension 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm
Battery
Bosch PowerTUBE 750Wh SMART SYSTEM hor.
Charger
Bosch STANDARD Charger 4A SMART SYSTEM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL | XXL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.545 mm | 1.51 mm | 1.479 mm | 1.452 mm |
| Front Center | 677 mm | 688 mm | 709 mm | 734 mm |
| Rake | 51 mm | 51 mm | 52 mm | 60 mm |
| Trail | 93 mm | 89 mm | 88 mm | 79 mm |
| Stack | 618 mm | 625 mm | 636 mm | 649 mm |
| Reach | 400 mm | 414 mm | 430 mm | 447 mm |
| Top Tube Length | 589 mm | 605 mm | 625 mm | 645 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm | 570 mm |
| Head Tube Angle | 68.5 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 125 mm | 137 mm | 150 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1145 mm | 1156 mm | 1177 mm | 1197 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 80 mm |
| Standover Height | 806 mm | 807 mm | 834 mm | 860 mm |
| Wheels | 700 | 700 | 700 | 700 |
