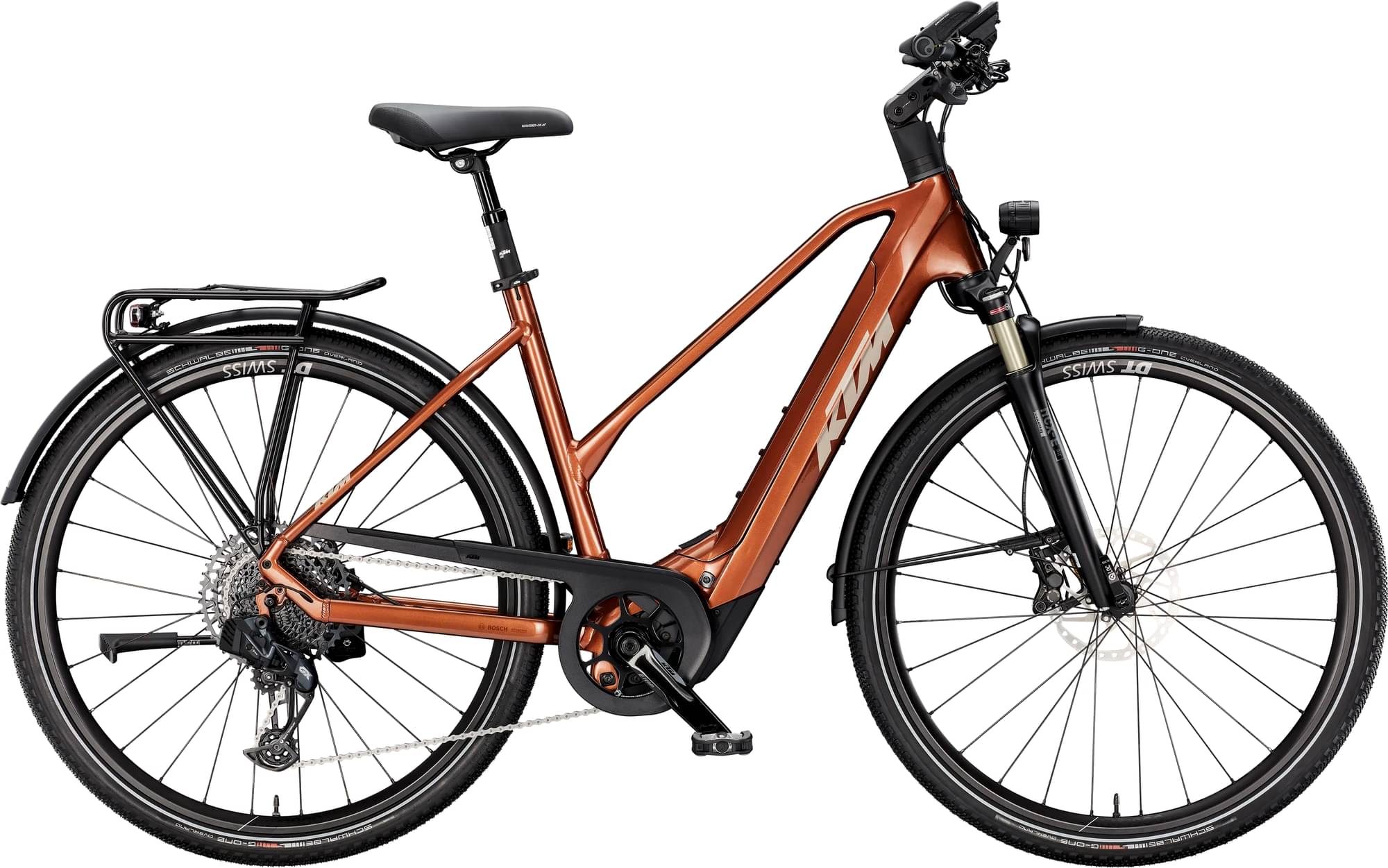

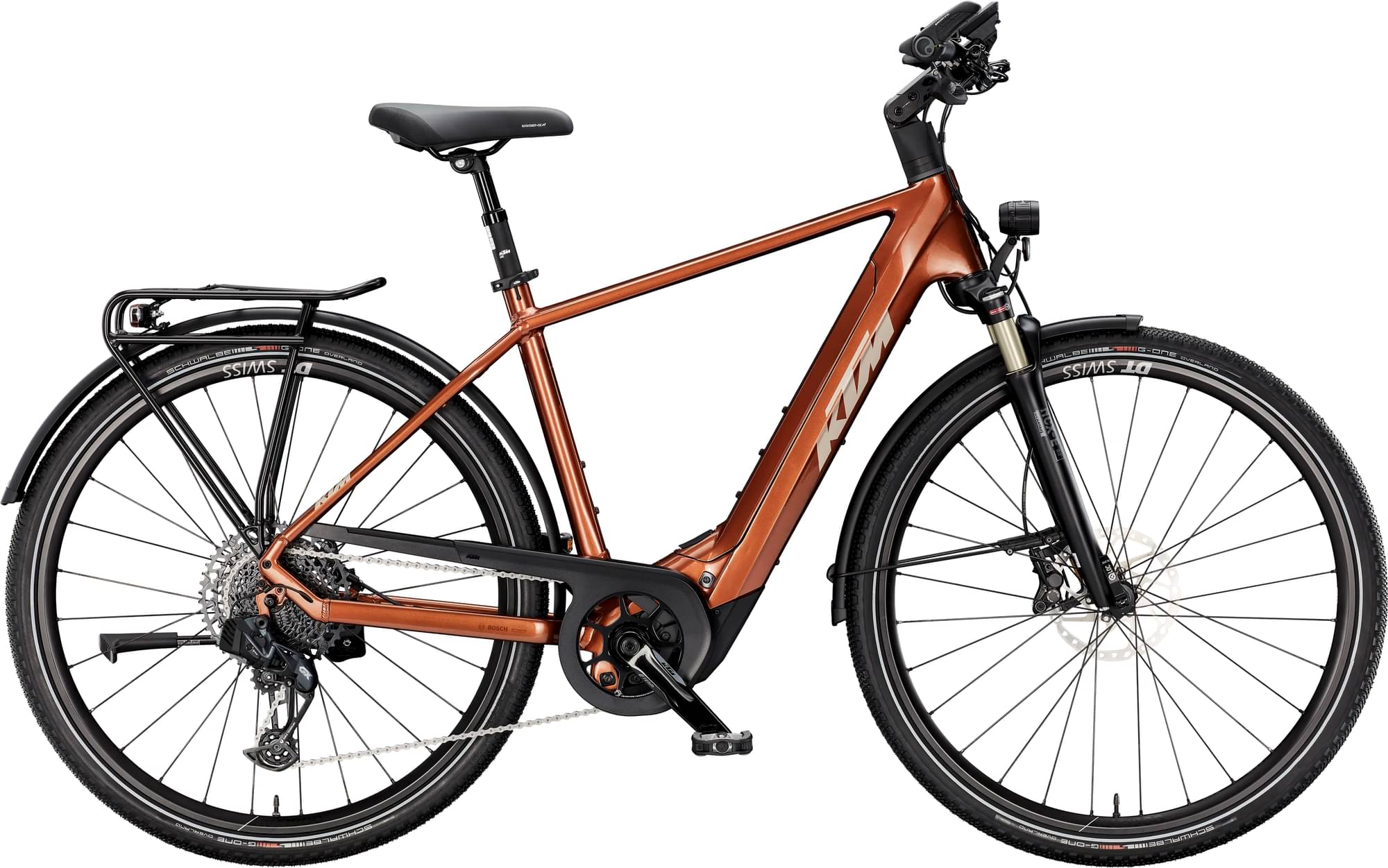

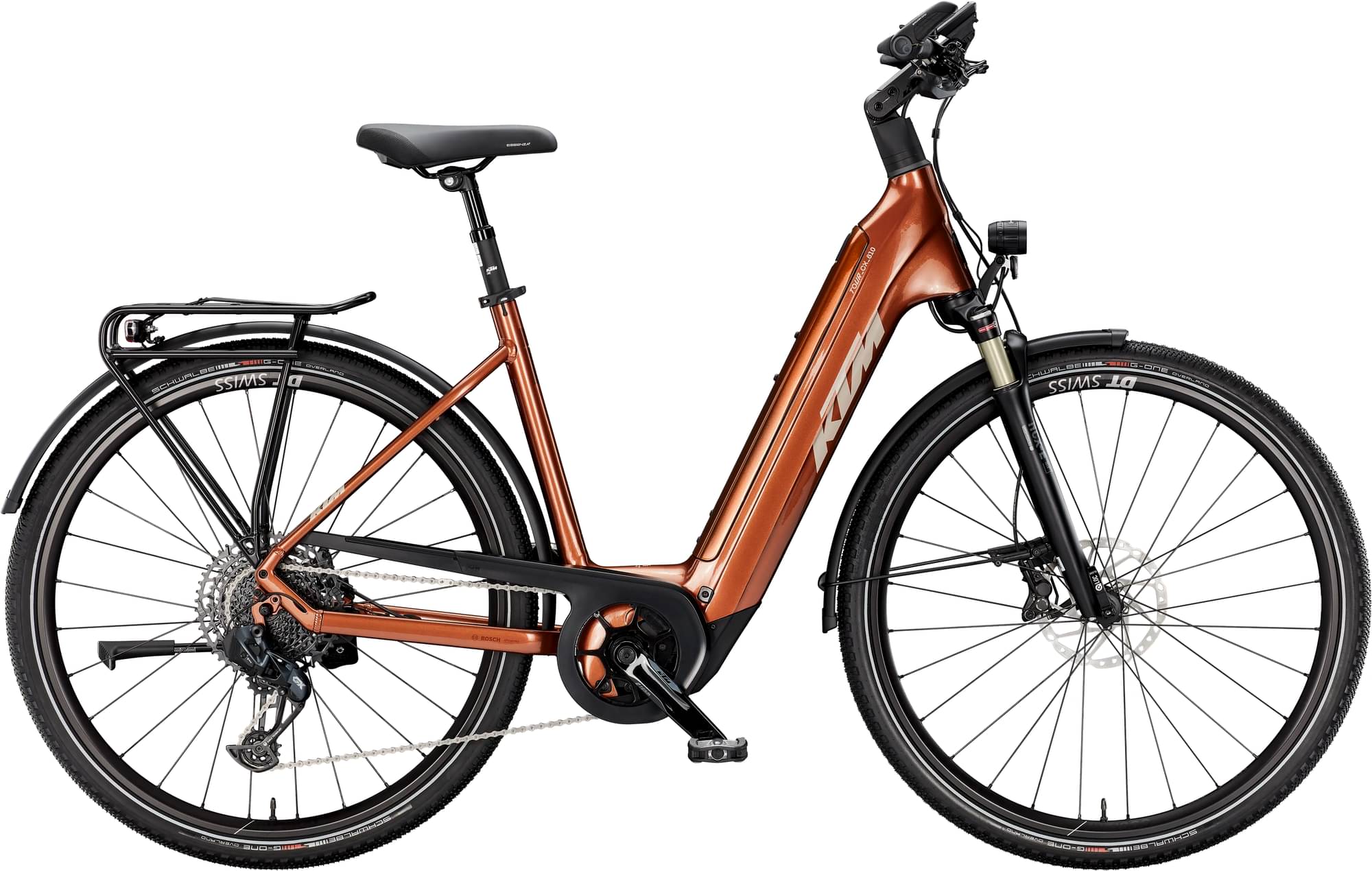

KTM MACINA TOUR CX 810 GX AXS 2025
2025 E-bike
Estimate price |
5,816$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset GX Eagle AXS -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTUBE 800Wh horizontal -
Drivetrain 1 × 12 Electronic -
Brakes Shimano Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekking Onroad Alloy 6061 PT800 Bosch BDU38 / T-5940
Suspension Fork
Suntour NCX-E Air LO 63mm 15QLC 1 1/8
Drivetrain
Shift Levers
SRAM GX Eagle AXS Controller
Cassette
SRAM NX Eagle PG-1230 / 11-50
Crank
KTM E-TEAM ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
SRAM NX Eagle 12s
Chain Guide
KTM type 9 for Bosch BDU38
Pedals
Trekking-Pedal VP-616 anti-slip
Wheels
Rims
DT HU 1900 CL 100/15TA|622x25TC TLR \ DT HU 1900 CL 135/5QR|622x25TC SS TLR
Tires
Front: Schwalbe G-One Overland Evo SuperGround 50-622, Rear: Schwalbe G-One Overland Evo SuperGround 50-622
Brakes
Brakes
Shimano MT402 (3-F) / MT420 4-Piston
Cockpit
Stem
KTM Line adjust. 0-60° ICR
Handlebar
KTM TEAM low rizer 640mm
Grips
Ergon GP30
Headset
Acros headsetcover OD62 Phyton
Seat
Saddle
Selle Royal Essenza
Seatpost
KTM Line Elegance suspension 30.9/300
Motor & Battery
Motor
Bosch PERFORMANCE CX BDU3840 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 800Wh horizontal
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | LG |
|---|---|
| Stack Reach Ratio | 1.539 mm |
| Front Center | 656 mm |
| Rake | 47 mm |
| Trail | 70 mm |
| Stack | 628 mm |
| Reach | 408 mm |
| Top Tube Length | 600 mm |
| Seat Tube Angle | 73 ° |
| Seat Tube Length | 560 mm |
| Head Tube Angle | 71 ° |
| Head Tube Length | 155 mm |
| Chainstay Length | 474 mm |
| Wheelbase | 1123 mm |
| Bottom Bracket Drop | 62 mm |
| Standover Height | 857 mm |
| Wheels | 29" |
| Rider Min Height | 120 cm |
