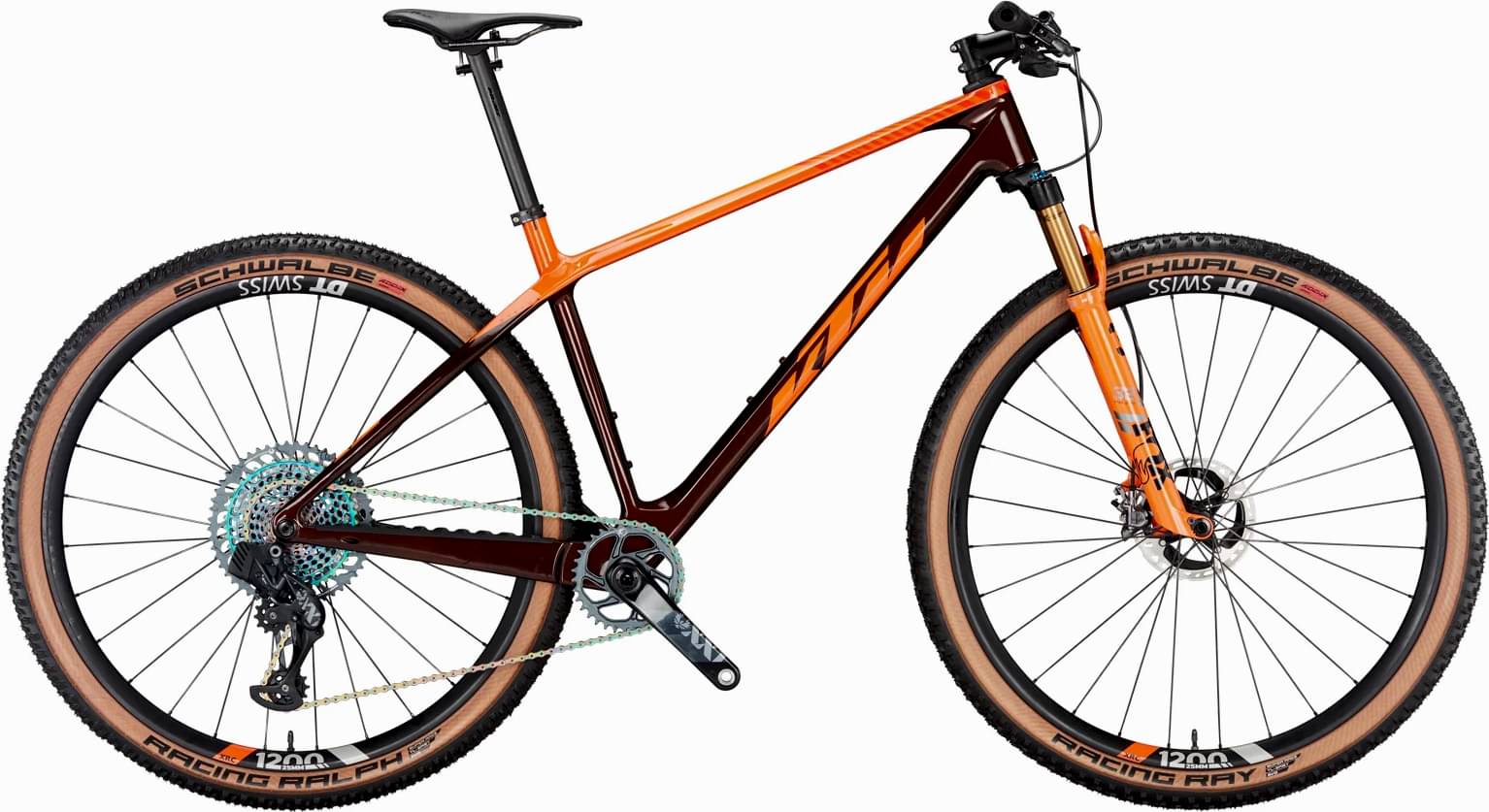

KTM MYROON EXONIC 2025
2025 Mountain
Estimate price |
10,469$
Weight | 8.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset XX1 Eagle AXS -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Shimano XTR Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Myroon 29" NanoPremium Carbon UDH / M-2886
Suspension Fork
FOX 32 Float SC 29" Factory 100mm remote 15x110
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS 12speed
Shift Levers
SRAM AXS Rocker-Paddle
Cassette
SRAM XX1 Eagle XG-1299 / 10-52 rainbow
Crank
SRAM XX1 Eagle DUB Carbon 34T
Chain
SRAM XX1 Eagle 12s
Wheels
Rims
DT Swiss XRC 1200 Spline 25 Carbon CL 110-15TA / 622x25TSS TLR
Tires
Front: Schwalbe Racing Ray Evo SuperRace TLE 57-622, Rear: Schwalbe Racing Ralph Evo SuperRace TLE 57-622
Brakes
Brakes
Shimano XTR M9100 / M9100 2-Piston
Cockpit
Stem
KTM Prime MTB 6°
Handlebar
KTM Prime Carbon flat 720mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Italia SLR Boost flow Carbon Rails
Seatpost
KTM Prime Carbon zero 27.2/400
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.398 mm | 1.363 mm | 1.333 mm | 1.304 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 671 mm | 692 mm | 713 mm | 734 mm |
| Rake | 44 mm | 43 mm | 44 mm | 44 mm |
| Trail | 93 mm | 94 mm | 93 mm | 93 mm |
| Stack | 594 mm | 604 mm | 613 mm | 622 mm |
| Reach | 425 mm | 443 mm | 460 mm | 477 mm |
| Top Tube Length | 590 mm | 610 mm | 630 mm | 650 |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1092 mm | 1113 mm | 1134 mm | 1155 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 761 mm | 775 mm | 803 mm | 832 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
