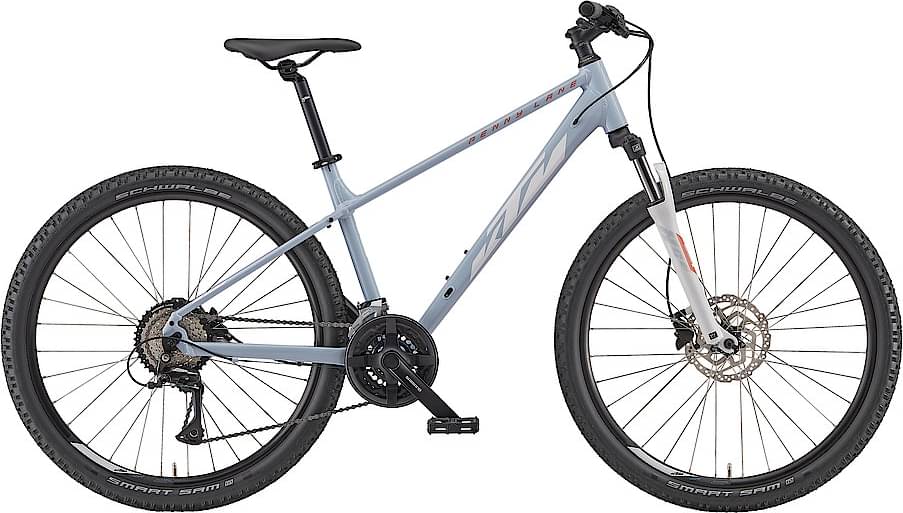

KTM PENNY LANE 272 2025
2025 Mountain
Estimate price |
930$
Weight | 14.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 80mm -
Fork Suntour XCE
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5" Alloy 6061 MTB / M-1100
Suspension Fork
Suntour XCE28 coil 29" 80mm
Drivetrain
Rear Derailleur
Shimano Acera M3020-8 SGS
Front Derailleur
Shimano Altus M313
Shift Levers
Shimano EF505-8 display
Cassette
Shimano HG400-8 / 11-40
Crank
Shimano M315 36-22T
Chain
KMC Z8.3
Pedals
KTM Line MTB BF
Wheels
Rims
KTM Line - Shimano HB-TX505 CL 32H 100 QR / KTM 27.5" Sport 32H; 584x20 / Pillar 2.0 INOX, silver
Tires
Front: Schwalbe Smart Sam K-Guard 54-584, Rear: Schwalbe Smart Sam K-Guard 54-584
Brakes
Brakes
Shimano EF505 2-Piston
Cockpit
Stem
KTM Line 7°
Handlebar
KTM Line rizer12
Headset
Ritchey OE Zero Logic 1.1/8"
Seat
Saddle
KTM Line Sport
Seatpost
KTM Line 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.423 mm | 1.455 mm | 1.43 mm | 1.428 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 640 mm | 646 mm | 668 mm | 689 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 93 mm | 93 mm | 93 mm | 93 mm |
| Stack | 555 mm | 569 mm | 582 mm | 601 mm |
| Reach | 390 mm | 391 mm | 407 mm | 421 mm |
| Top Tube Length | 560 mm | 565 mm | 585 mm | 605 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 320 mm | 370 mm | 420 mm | 470 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm | 160 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1071 mm | 1077 mm | 1099 mm | 1120 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 714 mm | 724 mm | 751 mm | 783 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
