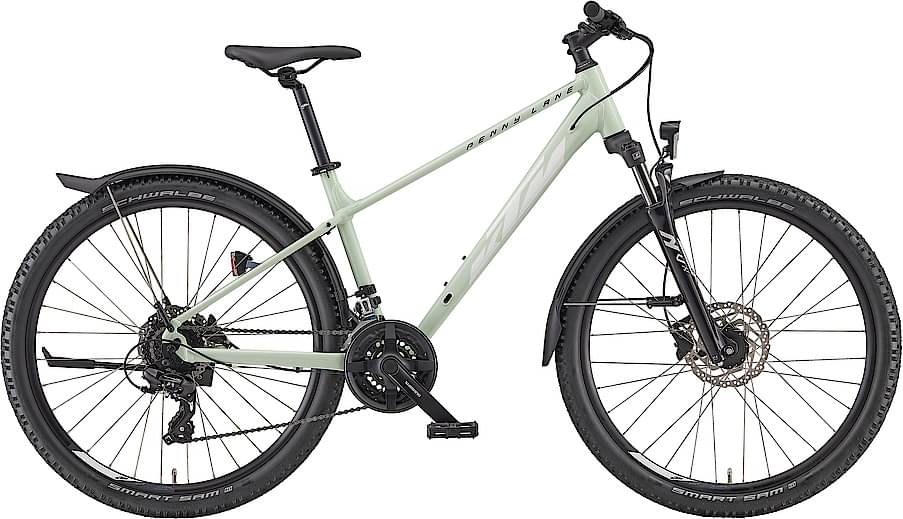

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour NVX
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5" Alloy 6061 MTB STREET / M-2080
Suspension Fork
Suntour NVX30 coil 29" 100mm
Drivetrain
Rear Derailleur
Shimano Tourney RD-TX800
Front Derailleur
Shimano Altus M313
Shift Levers
Shimano EF505-8 display
Cassette
Shimano HG200-8 / 12-32
Crank
Shimano FC-TY301 / 42-34-24T
Chain
KMC Z8.3
Pedals
KTM Line MTB BF
Wheels
Rims
KTM Line - Shimano DH-3D37 CL 32H 100 QR / KTM 27.5" Sport 32H; 584x20 / Pillar 2.0 INOX, silver
Brakes
Brakes
Shimano EF505 2-Piston
Cockpit
Stem
KTM Line 15°
Handlebar
KTM Line rizer12
Headset
Ritchey OE Zero Logic 1.1/8"
Seat
Saddle
KTM Line Sport
Seatpost
KTM Line 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.455 mm | 1.43 mm | 1.428 mm | 1.422 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 646 mm | 668 mm | 689 mm | 711 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 93 mm | 93 mm | 93 mm | 93 mm |
| Stack | 569 mm | 582 mm | 601 mm | 620 mm |
| Reach | 391 mm | 407 mm | 421 mm | 436 mm |
| Top Tube Length | 565 mm | 585 mm | 605 mm | 625 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 125 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1077 mm | 1099 mm | 1120 mm | 1142 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 724 mm | 751 mm | 783 mm | 814 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
