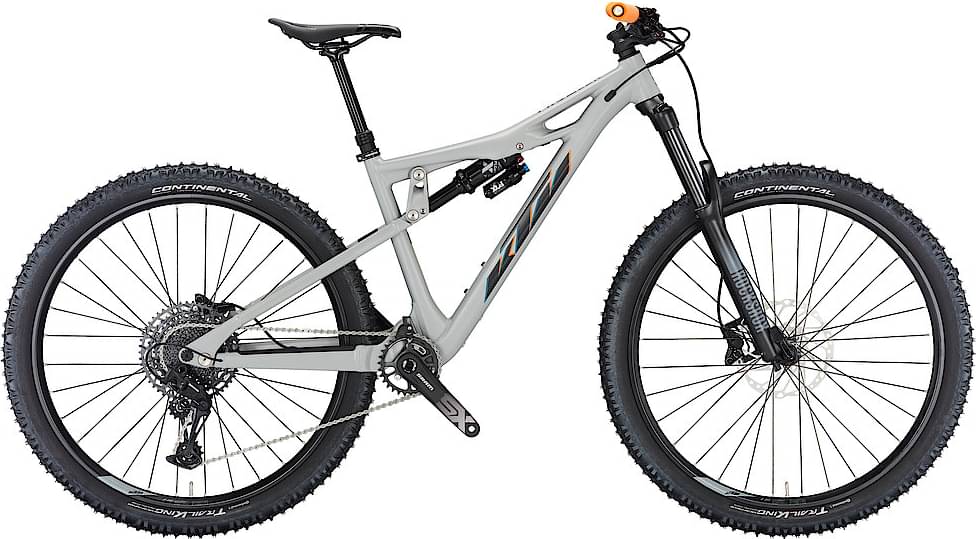

KTM PROWLER 1964 2025
2025 Mountain
Estimate price |
3,722$
Weight | 16.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Prowler 29" Alloy6061 triplebutted SLL-LT 150mm / M-9616
Suspension Fork
RockShox 35 Silver TK 29" 160mm 15x110 taper
Rear Shock
FOX Float X Performance 230x65
Drivetrain
Rear Derailleur
SRAM SX Eagle 12speed
Shift Levers
SRAM SX Eagle Trigger
Cassette
SRAM SX Eagle PG-1210 / 11-50
Crank
SRAM SX Eagle DUB 30T
Chain
SRAM NX Eagle 12s
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 622x30TC / DT Champion 2.0 black
Tires
Front: Conti Trail King 60-622 ShieldWall, Rear: Conti Trail King 60-622 ShieldWall
Brakes
Brakes
Shimano M4100 / MT420 4-Piston
Cockpit
Stem
KTM TEAM II Trail35
Handlebar
KTM Team Trail35 rizer25 800mm
Headset
KTM Team drop/in 1.1/8"-1.5"
Seat
Saddle
Selle San Marco GND
Seatpost
KTM COMP II dropper internal
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.386 mm | 1.368 mm | 1.321 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm |
| Front Center | 755 mm | 778 mm | 810 mm |
| Rake | 50 mm | 51 mm | 50 mm |
| Trail | 112 mm | 111 mm | 112 mm |
| Stack | 610 mm | 624 mm | 638 mm |
| Reach | 440 mm | 456 mm | 483 mm |
| Top Tube Length | 590 mm | 610 mm | 640 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 105 mm | 120 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1190 mm | 1213 mm | 1245 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm |
| Standover Height | 810 mm | 810 mm | 810 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
