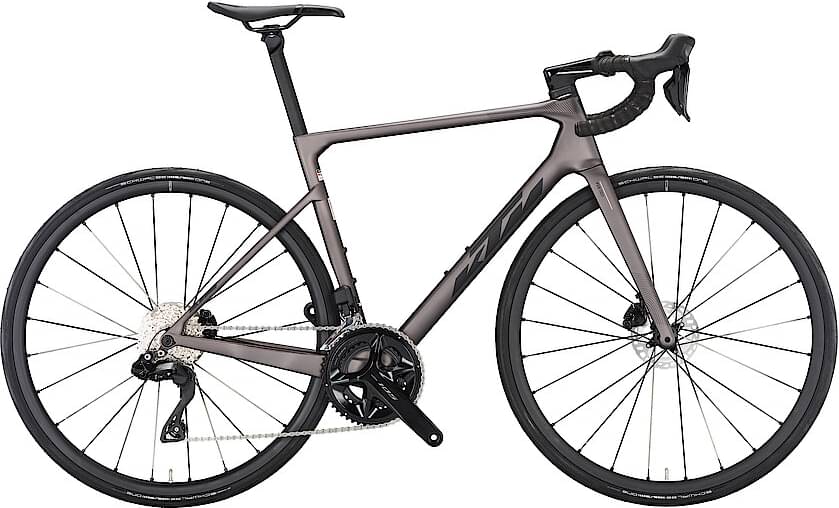

KTM REVELATOR ALTO ELITE DI2 2025
2025 Road
Estimate price |
3,838$
Weight | 7.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Shimano 105 Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revelator Alto Premium Carbon / R-3920
Suspension Fork
Revelator Alto Premium Carbon F15
Drivetrain
Rear Derailleur
Shimano 105 Di2 R7150-12 shadow
Front Derailleur
Shimano 105 Di2 R7150
Shift Levers
Shimano 105 Di2 R7170
Cassette
Shimano 105 R7100-12 / 11-34
Crank
Shimano 105 R7100 50-34
Chain
Shimano M6100-12
Wheels
Rims
Mavic KSYRIUM S DISC CL 100/12TA / 622x19TC
Tires
Front: Schwalbe One Perf. RaceGuard 28-622, Rear: Schwalbe One Perf. RaceGuard 28-622
Brakes
Brakes
Shimano 105 R7170 hydraulic
Cockpit
Stem
FSA NS Road -6° ACR
Handlebar
FSA Energy Compact Road
Headset
FSA ACR drop/in 1.5" internal
Seat
Saddle
Selle San Marco RND Manganese Rails
Seatpost
KTM CompLink zero Alloy aero/350
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.438 mm | 1.422 mm | 1.419 mm | 1.425 mm | 1.442 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 266 mm | 268 mm |
| Front Center | 561 mm | 577 mm | 592 mm | 595 mm | 604 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 67 mm | 64 mm | 64 mm | 61 mm | 61 mm |
| Stack | 519.2 mm | 535.2 mm | 549.5 mm | 558.7 mm | 571 mm |
| Reach | 361.1 mm | 376.5 mm | 387.2 mm | 392.2 mm | 396 mm |
| Top Tube Length | 510 mm | 530 mm | 550 mm | 563 mm | 576 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm | 155 mm | 170 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 959 mm | 975 mm | 991 mm | 995 mm | 1004 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 68 mm |
| Standover Height | 733 mm | 757 mm | 778 mm | 794 mm | 811 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
