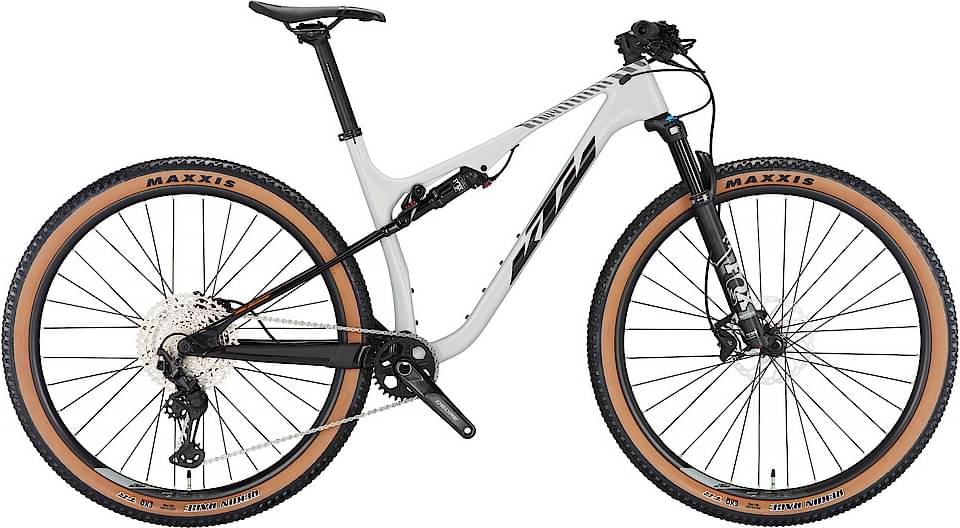

KTM SCARP ELITE 2024
2024 Mountain
Estimate price |
4,013$
Weight | 13.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork Fox Rhythm Float 32
-
Groupset XT, Deore -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scarp 29" Premium Carbon-Alloy rear SLL95mm / M-0916
Suspension Fork
FOX 32 Float 29" Rhythm 100mm remote 15x110
Rear Shock
FOX Float DPS PerformanceElite remote 190x37.5
Drivetrain
Rear Derailleur
Shimano Deore XT M8100-12 SGS shadow+
Shift Levers
Shimano Deore M6100-12
Cassette
Shimano Deore M6100-12 / 10-51
Crank
Shimano Deore M6120 32T
Chain
Shimano M6100-12
Wheels
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ryde Rival26 32H 622x26C / DT Champion 2.0 black
Brakes
Brakes
Shimano M4100 / MT410 2-Piston
Cockpit
Stem
KTM Team MTB 7°
Handlebar
KTM Team flat 2X 720mm
Headset
KTM Team drop/in 1.1/8"-1.5"
Seat
Saddle
Selle San Marco RND Manganese Rails
Seatpost
KTM Team 30.9/400
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.385 mm | 1.355 mm | 1.321 mm |
| Front Center | 693 mm | 714 mm | 735 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 93 mm | 93 mm | 93 mm |
| Stack | 586 mm | 596 mm | 605 mm |
| Reach | 423 mm | 440 mm | 458 mm |
| Top Tube Length | 580 mm | 600 mm | 620 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1124 mm | 1145 mm | 1166 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm |
| Standover Height | 780 mm | 780 mm | 780 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
