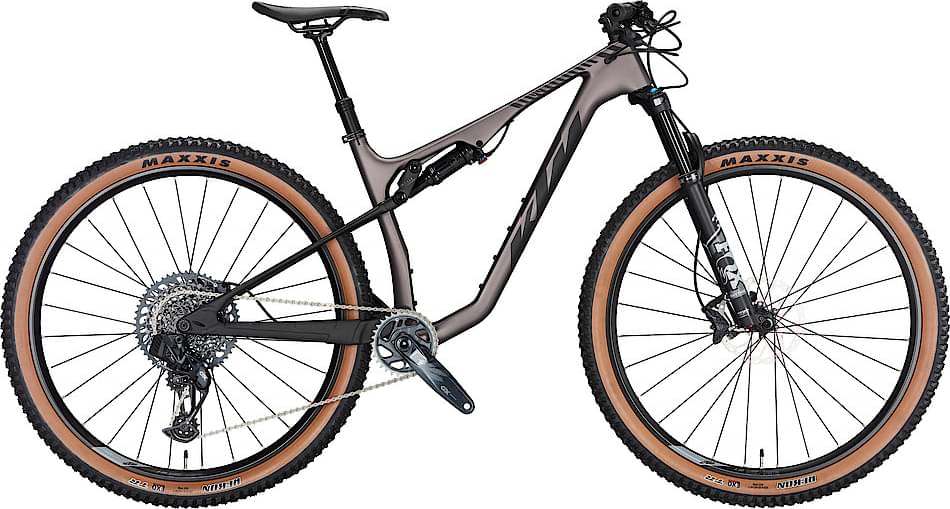

KTM SCARP MT ELITE AXS 2024
2024 Mountain
Estimate price |
5,848$
Weight | 12.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 120mm -
Fork Fox Rhythm Float 32
-
Groupset GX Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Shimano Deore Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scarp 29" Premium Carbon-Alloy rear SLL95mm / M-0916
Suspension Fork
FOX 32 Float 29" Rhythm 120mm remote 15x110
Rear Shock
FOX Float DPS PerformanceElite remote 190x45
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS 12speed
Shift Levers
SRAM GX Eagle AXS Controller
Cassette
SRAM GX Eagle XG-1275 / 10-52
Crank
SRAM GX Eagle DUB 32T
Chain
SRAM GX Eagle 12s
Wheels
Rims
KTM Line - DT Swiss 370 CL 28L 110/15 / Ambrosio E30 Trail 28H 622x30TC / DT Champion 2.0 black
Brakes
Brakes
Shimano Deore M6100 / M6100 2-Piston
Cockpit
Stem
KTM Team MTB 7°
Handlebar
KTM Team flat 2X 740mm
Headset
KTM Team drop/in 1.1/8"-1.5"
Seat
Saddle
Selle San Marco RND Manganese Rails
Seatpost
KTM COMP II dropper internal
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.436 mm | 1.399 mm | 1.366 mm | 1.335 mm |
| Front Center | 699 mm | 720 mm | 742 mm | 763 mm |
| Rake | 51 mm | 50 mm | 51 mm | 50 mm |
| Trail | 100 mm | 101 mm | 100 mm | 101 mm |
| Stack | 593 mm | 603 mm | 612 mm | 622 mm |
| Reach | 413 mm | 431 mm | 448 mm | 466 mm |
| Top Tube Length | 583 mm | 603 mm | 623 mm | 643 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1131 mm | 1152 mm | 1174 mm | 1195 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 790 mm | 790 mm | 790 mm | 796 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
